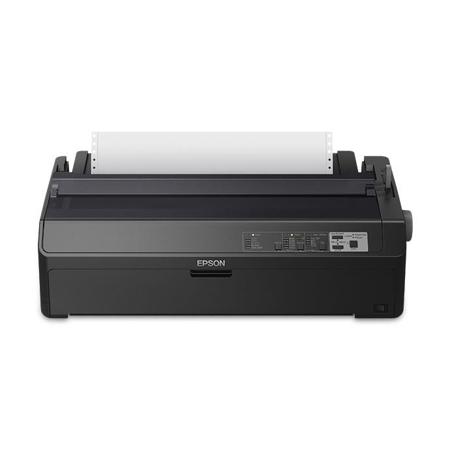

Epson FX-2190II NT Wide Monochrome Dot Matrix Impact Printer, with Network Card
See all Epson items

Epson FX-2190II NT Wide-Format Monochrome Dot Matrix Impact Printer, with Network Card

SKU: IESFX2190IIN
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Epson FX-2190II NT Specifications

Print Other

Print Other

Jump to...

  • Printing Technology

    9-pin, serial impact dot matrix

  • Print Speed

    Ultra Speed Draft: 738 cps (12 cpi), 615 CPS (10 cpi)
    High Speed Draft: 612 CPS (10 cpi)
    Draft: 463 CPS (10 cpi)
    Letter Quality: 115 CPS (10 cpi)

  • Print Direction

    Bidirectional logic seeking for text and graphics printing
    Unidirectional text or graphics printing can be selected using software commands

Characters & Lines

Jump to...

  • Character Sets

    13 character tables
    13 international countries character sets

  • Resident Bitmapped Fonts

    Ultra Speed Draft: 10, 12 cpi
    High Speed Draft: 10, 12, 15, 17, 20 cpi
    Draft: 10, 12, 15, 17, 20 cpi
    NLQ (Roman/Sans Serif): 10, 12, 15, 17, 20 cpi, proportional

  • Bar Code Fonts

    EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

  • Formatting

    1/6" programmable in 1/432" increments
    Line spacing: 6 lines per inch (lpi) default (8 lpi option available on FX-2190II Series Oki Data Mode Only)

Paper Handling Impact

Jump to...

  • Forms

    Continuous multipart, original plus 5 carbonless copies, 1 + 6 copies with pull tractor (optional), maximum thickness .018"

  • Width

    Single Sheet: 3.9" to 16.5"
    Continuous: 4.0" to 16.0"
    Cut-sheet Feeder: 7.2" to 16.5"

  • Envelopes

    No. 6 envelopes
    No. 10 envelopes

  • Length

    Single Sheet: 3.9" to 14.3"
    Continuous: 4.0" to 22.0"
    Cut-sheet Feeder: 10.1" to 14.0"

  • Paper Feed Mechanism

    Friction feed (front, rear)
    Push tractor (front, rear)
    Pull tractor (front, bottom, rear)
    Push and pull tractor (front, rear)
    Roll paper holder (optional)

  • Paper Feed Speed

    45 milliseconds per 1/6", 5.3" per second continuous feed

  • Paper Path

    Manual Insertion: Front or rear in, top out
    Cut-sheet Feeder: Rear in, top out
    Tractor: Front rear or bottom in, top out
    Pull/Push Tractor: Front or rear in, top out

Impact Printer

Jump to...

  • Software Drivers

    OS Support: Microsoft Windows Vista; Windows 7, XP, 8, 10; Windows Server 2003, 2008, 2012, 2016

  • Printer Language

    Epson ESC/P
    IBM PPDS
    Oki Data MICROLINE (Oki Data Mode only)

  • Input Buffer

    Size: 128KB

  • Interfaces

    Standard: Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
    USB 2.0 Optional (Factory configuration only): Serial Interface Board
    Network 10/100Base-TX Interface Board

  • Control Panel

    Functions: Font, Pitch, Pause, Tear-off/Bin selection, Line feed/Form feed, Load/Eject, Micro-adjust, Reset, Self test, Data dump, and Default setting selection

Reliability

Jump to...

  • MTBF

    25,000 POH (25% duty cycle)

  • MVBF

    52 million lines (Except printhead)

  • Print Head Life

    400 million characters at 14 dots / character

  • Ribbon Life

    12 million characters at 14 dots / character

Power

Jump to...

  • Rated Voltage

    AC 100V to 240V

  • Rated Frequency

    50 to 60Hz

  • Power Consumption

    Operating Mode: Approx. 57W (ISO/IEC 10561 Letter pattern)
    Ready Mode: Approx. 12W
    Sleep Mode: <0.04W
    ENERGY STAR Compliant: Certified with V2.0

  • Input Voltage Range

    AC 90 to 264V

  • Input Frequency Range

    49.5 to 60.5Hz

General

Jump to...

  • Sound Level

    Noise: 55 dBA (ISO 7779 pattern)

  • Safety Approvals

    UL62368-1, CAN/CSA C22.2 No. 60950-1, IEC/EN62368-1 EMI: FCC part15 subpart B class A, ICES-003 Class A, EN55032 (CISPR pu.32) class A, As/NZS CISPR32 class A CE Markings: EN62368-1, EN55032 class A, EN61000-3-2, EN61000-3-3, E55024

  • Dimensions (WxDxH)

    24.1 x 14.8 x 6.9" (61.21 x 37.59 x 17.53cm)

  • Weight

    20.7 lbs (9.39kg)

Other

Jump to...

  • UPC Code

    010343939431

About Epson FX-2190II NT

Wide-format impact printers built for demanding print environments
The Epson FX-2190II Series offers the durability and productivity needed for critical daily print requirements. These reliable 9-pin, wide-format impact printers boast a long life cycle, a 3-year limited warranty and speeds up to 738 cps. Their up-to-12-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P, IBM PPDS and MICROLINE printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick and feature an intuitive control panel for easy setup and operation.

Low cost of ownership
Up to 12 million character ribbon cartridge offers a low cost per page and reduces the frequency of user interventions.

Fast, High-Quality Printing
Ultra-fast 9-pin printer speeds through multi-part forms and reports at up to 738 cps.

Seamless integration with new and legacy systems
Includes Epson ESC/P, IBM PPDS and MICROLINE printer languages for greater flexibility.

Advanced Paper Handling
Simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous forms up to 7 pages thick.

Convenient and Easy to Use
User-friendly control panel with intuitive setup and configuration features.

Eco Features
• RoHS compliant

Epson FX-2190II NT Features

  • Extreme reliability - long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures
  • Low cost of ownership - up-to-12-million-character ribbon cartridge offers a low cost per page and reduces the frequency of user interventions
  • Powerful productivity - ultra fast, wide-format, 9-pin printer speeds through multipart forms and reports at up to 738 cps
  • Seamless integration with both new and legacy systems - includes Epson ESC/P, IBM PPDS and MICROLINE printer languages for greater flexibility
  • Advanced paper handling - simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous or multipart forms up to 7 pages thick
  • Easy setup and operation - user-friendly control panel with intuitive setup and configuration features
  • Low power consumption - ENERGY STAR V2.0 compliant
  • Multiple connectivity options - Parallel and USB connectivity
  • Serial port and Ethernet compatible - network card supports IPv6

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Epson FX-2190II NT Wide-Format Monochrome Dot Matrix Impact Printer
  • AC Adapter
  • User's Manual/Start Here Guide
  • Setup Guide
  • CD Driver
  • Epson 3 Year Limited Warranty
