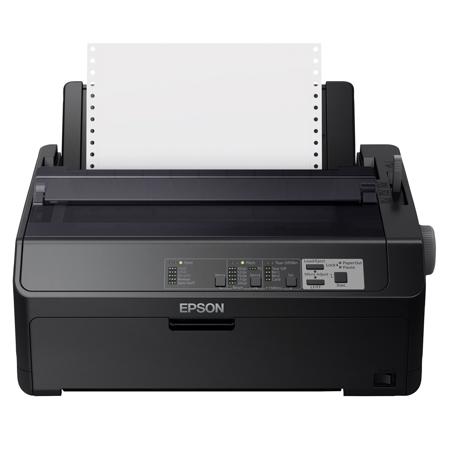

Epson FX-890II 9-Pin Serial Impact Dot Matrix Printer, Up to 738 cps

SKU: IESFX890II MFR: C11CF37201
Earn VIP Reward Points

Key Features

  • Achieve efficient printing with speeds up to 738 cps on this reliable dot matrix printer.
  • This Epson printer supports continuous, multipart forms, handling up to 7 carbonless copies.
  • Enjoy versatile paper handling with front, rear, and bottom feed options for various tasks.
  • Benefit from a durable print head life of 400 million characters for long-lasting performance.
  • This dot matrix printer offers multiple interfaces, including parallel and USB 2.0 connectivity.
  • This cost-effective printer integrates easily with Windows for seamless compatibility.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Tom T : is the Epson FX-890 II a direct replacement for the LX300 and LX350 +II?ANDREW R : Not specified by the manufacturer
Shopper : Why Did You Choose This?JOE B : needed printer with continous feed paper with a fast turn around.CYNTHIA W : We have them at all locations.ANTHONY P : I need this kind of printer for title application printing. thank youKRISTI P : Replacing one we have--it works with our programOswaldo P : It's the best impact printer in the market. I have purchased many of them for my clients and we are very satisfied with it

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Epson FX-890II Specifications

  • Printing Technology

    9-pin, serial impact dot matrix

  • Print Speed

    Ultra Speed Draft: 738 cps (12 cpi), 615 CPS (10 cpi)
    High Speed Draft: 612 CPS (10 cpi)
    Draft: 463 CPS (10 cpi)
    Letter Quality: 115 CPS (10 cpi)

  • Print Direction

    Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.

  • Paper Handling Impact: Forms

    Continuous multipart, original plus 6 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"

  • Paper Handling Impact: Width

    Single sheets: 3.9" to 10.1"
    Continuous: 4" to 10"
    Cut-sheet feeder: 7.2" to 8.5"

  • Paper Handling Impact: Envelopes

    No. 6 envelopes
    No. 10 envelopes

  • Paper Handling Impact: Length

    Single sheets: 3.9" to 14.3"
    Continuous: 4" to 22"
    Cut-sheet feeder: 10.1" to 14"

  • Paper Handling Impact: Paper Feed Speed

    45 millisecond per 1/6"
    5.3" per second continuous feed

  • Paper Handling Impact: Paper Path

    Manual insertion: Front or rear in, top out
    Cut sheet feeder: Rear in, top out
    Tractor: Front, rear or bottom in, top out
    Pull push tractor: Front or rear in, top out

  • Impact Printer: Software Drivers

    Windows Vista, 7, XP, 8, 10

  • Impact Printer: Printer Language

    Epson ESC / P
    IBM PPDS
    Okidata Microline (FX-890 Okidata Mode only)

  • Impact Printer: Input Buffer

    128 KB

  • Impact Printer: Interfaces

    Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
    USB 2.0

  • Impact Printer: Control Panel

    Functions: Font, Pitch, Pause, Tear-Off/Bin selection, Line Feed/Form Feed, Load/Eject, Micro-Adjust, Reset, Self Test, Data Dump, and Default Setting selection

  • Character Sets

    13 character tables
    13 international countries character sets

  • Resident Bitmapped Fonts

    Ultra Speed Draft: 10, 12 cpi
    High Speed Draft: 10, 12, 15, 17, 20 cpi
    Draft: 10, 12, 15, 17, 20 cpi
    Near Letter Quality (Roman / Sans Serif): 10, 12, 15, 17, 20 cpi, proportional

  • Bar Code Fonts

    EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

  • Characters per Line

    80 characters at 10 cpi
    96 characters at 12 cpi
    120 characters at 15 cpi
    137 characters at 17 cpi
    160 characters at 20 cpi

  • Line Spacing

    6 lines per inch default

  • Formatting

    1/6-inch or programmable in 1/432-inch increments
    8 lpi option available on FX-890II Okidata Mode only

  • MTBF

    20,000 POH (25% duty cycle)

  • Total Print Volume

    52 million lines (not including print head)

  • Print head life

    400 million characters at 14 dots / character

  • Ribbon life

    7.5 million characters at 14 dots / character

  • Rated Voltage

    120V

  • Rated Frequency

    50 - 60 Hz

  • Input frequency range

    49.5 - 60.5Hz

  • Sound Level

    55 dB(A) (ISO 7779 pattern)

  • Dimensions (WxDxH)

    17.2 x 14.8 x 7" (43.69 x 37.59 x 17.78cm)

  • Weight

    15.8 lbs (7.17kg)

  • UPC Code

    010343938045

4 Accessories for Epson FX-890II 9-Pin Serial Impact Dot Matrix Printer, Up to 738 cps

  • All Accessories (4)
  • Cables & Adapters (3)
  • Cleaning Accessories (1)

About Epson FX-890II

The Epson FX-890II 9-Pin Serial Impact Dot Matrix Printer stands as a paragon of high-performance printing, meticulously engineered for the most demanding print environments. This robust and reliable printer is an ideal choice for businesses that require a durable and efficient solution for their critical daily printing needs.

Crafted with a steadfast commitment to quality, the FX-890II boasts a formidable print speed of up to 738 characters per second (cps), making it one of the fastest dot matrix printers in its class. Its high-speed capabilities ensure that your multi-part forms, invoices, receipts, and shipping labels are produced with remarkable efficiency, reducing wait times and increasing productivity.

The printer's exceptional durability is further exemplified by its long life cycle and the inclusion of a high-capacity ribbon cartridge that can deliver up to 7.5 million characters. This not only minimizes user interventions but also contributes to a lower cost per page, optimizing your printing expenses over time.

Seamless integration into various systems is made possible with the FX-890II's support for multiple printer languages, including Epson ESC/P, IBM PPDS, and MICROLINE. Whether you're updating your current setup or integrating the printer into a legacy system, this flexibility ensures a smooth transition and continued operational excellence.

Designed to thrive in harsh environments, the FX-890II can effortlessly handle cut-sheet, continuous, or multipart forms up to 7 pages thick. Its straightforward paper path design promotes exceptional reliability, while the intuitive control panel simplifies setup and operation, making it user-friendly for professionals of all skill levels.

The printer's advanced paper handling capabilities are matched by its eco-friendly features. As an ENERGY STAR V2.0 compliant device, it boasts low power consumption, and its network card supports IPv6 for modern connectivity options. Additionally, the FX-890II is RoHS compliant and made from recyclable materials, reflecting Epson's commitment to environmental sustainability.

In summary, the Epson FX-890II 9-Pin Serial Impact Dot Matrix Printer is a powerful and productive workhorse, designed to deliver fast, high-quality, and reliable printing while offering cost-effective operation and easy integration into a wide range of printing environments.

Epson FX-890II Features

  • High-performance 9-Pin Serial Impact Dot Matrix Printer for demanding print environments
  • Fast printing capabilities with speeds up to 738 characters per second
  • Long-lasting ribbon cartridge offering up to 7.5 million characters for reduced interventions
  • Seamless integration with multiple printer languages including Epson ESC/P, IBM PPDS, & MICROLINE
  • Advanced paper handling for cut-sheet, continuous, or multipart forms up to 7 pages thick
  • Energy-efficient and eco-friendly design, compliant with ENERGY STAR V2.0 and RoHS standards

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve efficient printing with speeds up to 738 cps on this reliable dot matrix printer.
  • This Epson printer supports continuous, multipart forms, handling up to 7 carbonless copies.
  • Enjoy versatile paper handling with front, rear, and bottom feed options for various tasks.
  • Benefit from a durable print head life of 400 million characters for long-lasting performance.
  • This dot matrix printer offers multiple interfaces, including parallel and USB 2.0 connectivity.
  • This cost-effective printer integrates easily with Windows for seamless compatibility.

What's in the box:

  • Epson FX-890II 9-Pin Serial Impact Dot Matrix Printer
  • Printer Driver
  • Parallel Cable
  • Power Cable
  • Quick Installation Guide
  • Epson 3 Year Limited Warranty
