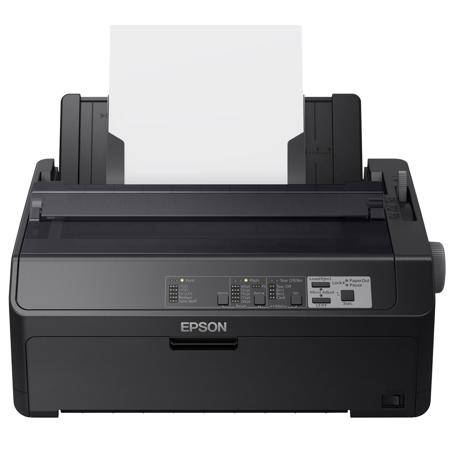

Epson FX-890II NT 9-Pin Serial Impact Dot Matrix Printer, Up to 680 cps
See all Epson items

Epson FX-890II NT 9-Pin Serial Impact Dot Matrix Printer, Up to 680 cps

SKU: IESFX890IINT

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANTHONY D : for billsDANNY F : as a back up for one we already have in service.

Reviews about this item

Review Summary

2023-02-26T19:00:00

Rated 5 out of 5

Great replacement printer

We were needing to replace old printer that we could no longer get replacement parts by another manufacturer. We are extremely pleased with this product. It was very easy to set up to use.

Alamo G.

2021-03-10T19:00:00

Rated 5 out of 5

Fully Functional

Great replacement for an old FX-890. We will probably order another one soon!

cw

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Epson FX-890II NT Specifications

  • Printing Technology

    9-pin, serial impact dot matrix

  • ISO Print Speed

    Ultra Speed Draft: 680 cps (12 cpi); 566 cps (10 cpi)
    High Speed Draft: 559 cps (10 cpi)
    Draft: 419 cps (10 cpi)
    Near Letter Quality: 104 cps (10 cpi)

  • Print Direction

    Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.

  • Paper Handling Impact: Forms

    Continuous multipart, original plus 6 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"

  • Paper Handling Impact: Width

    Single sheets: 3.9" to 10.1"
    Continuous: 4" to 10"
    Cut-sheet feeder: 7.2" to 8.5"

  • Paper Handling Impact: Envelopes

    No. 6 envelopes: 6.5" x 3.6"
    No. 10 envelopes: 9.5" x 4.1"

  • Paper Handling Impact: Length

    Single sheets: 3.9" to 14.3"
    Continuous: 4" to 22"
    Cut-sheet feeder: 10.1" to 14"

  • Paper Handling Impact: Labels

    Minimum: 2.5" x 0.94"

  • Paper Handling Impact: Roll paper

    8.5" width

  • Paper Handling Impact: Paper Feed Speed

    62 millisecond per 1/6"
    5" per second continuous feed

  • Paper Handling Impact: Paper Path

    Manual insertion: Front or rear in, top out
    Cut sheet feeder: Rear in, top out
    Tractor: Front, rear or bottom in, top out
    Pull push tractor: Front or rear in, top out

  • Impact Printer: Software Drivers

    Windows 95, 98, 2000, Me, XP and NT 4.0

  • Impact Printer: Printer Language

    Epson ESC / P
    IBM PPDS
    Okidata Microline (FX-890 Okidata Mode only)

  • Impact Printer: Input Buffer

    128 KB

  • Impact Printer: Interfaces

    Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
    USB 1.1
    Type-B slot for optional interface cards

  • Impact Printer: Control Panel

    Functions: Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection

  • Character Sets

    13 character tables
    13 international countries character sets

  • Resident Bitmapped Fonts

    Ultra Speed Draft: 10, 12 cpi
    High Speed Draft: 10, 12, 15, 17, 20 cpi
    Draft: 10, 12, 15, 17, 20 cpi
    Near Letter Quality (Roman / Sans Serif): 10, 12, 15, 17, 20 cpi, proportional

  • Bar Code Fonts

    EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

  • Characters per Line

    80 characters at 10 cpi

  • Line Spacing

    6 lines per inch default

  • Formatting

    1/6-inch or programmable in 1/432-inch increments
    8 lpi option available on FX-890 Okidata Mode only

  • MTBF

    20,000 POH (25% duty cycle)

  • Total Print Volume

    52 million lines (not including print head)

  • Print head life

    400 million characters at 14 dots / character

  • Ribbon life

    7.5 million characters at 14 dots / character

  • Rated Voltage

    120V

  • Rated Frequency

    50 - 60 Hz

  • Input voltage range

    103.5 - 132V

  • Input frequency range

    49.5 - 60.5Hz

  • Sound Level

    55 dB(A) (ISO 7779 pattern)

  • Dimensions (WxDxH)

    16.3 x 13.8 x 6.6" (41.40 x 35.05 x 16.76cm)

  • Weight

    15.8 lbs (7.17kg)

  • UPC Code

    010343938052

4 Accessories for Epson FX-890II NT 9-Pin Serial Impact Dot Matrix Printer, Up to 680 cps

  • All Accessories (4)
  • Cables & Adapters (3)
  • Cleaning Accessories (1)
C2G Cables to Go 2m (6.56') USB 2.0 A/B Cable, Black
C2G Cables to Go 2m (6.56') USB 2.0 A/B Cable, Black
$6.99
C2G Cables to Go 3m (9.8') USB 2.0 A/B Cable, Black
C2G Cables to Go 3m (9.8') USB 2.0 A/B Cable, Black
$9.99
C2G Cables to Go 5m (16.40') USB 2.0 A/B Cable, Black
C2G Cables to Go 5m (16.40') USB 2.0 A/B Cable, Black
$8.49
Giottos Rocket Air Blaster, Manual Air Blower, 6.6in
Giottos Rocket Air Blaster, Manual Air Blower, 6.6in
$19.95

About Epson FX-890II NT

FEATURED REVIEWS

Great replacement printer

By Alamo G.

We were needing to replace old printer that we could no longer get replacement parts by another manufacturer. We are extremely pleased with this product. It was very easy to set up to use.

Fully Functional

By cw

Great replacement for an old FX-890. We will probably order another one soon!

High-performance impact printers built for demanding print environments
The Epson FX-890II Series offers the durability and ease of use for critical daily print requirements. These reliable 9-pin, narrow-carriage impact printers boast a long life cycle, a 3-year limited warranty and speeds up to 680 cps. Their up-to-7.5-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P, IBM PPDS and MICROLINE printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick and feature an intuitive control panel for easy setup and operation.

Extreme reliability
Long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures

Low cost of ownership
Up-to-7.5-million-character ribbon cartridge offers a low cost per page and reduces the frequency of user interventions

Powerful productivity
Ultra-fast 9-pin printer speeds through multipart forms and reports at up to 680 cps

Seamless integration with both new and legacy systems
Includes Epson ESC/P, IBM PPDS and MICROLINE printer languages for greater flexibility

Advanced paper handling
Simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous forms up to 7 pages thick

Easy setup and operation
User-friendly control panel with intuitive setup and configuration features

Low power consumption
ENERGY STAR V2.0 compliant

Ethernet compatible
Network card supports IPv6

Eco Features
• RoHS compliant
• Recyclable product

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Epson FX-890II NT 9-Pin Serial Impact Dot Matrix Printer
  • Printer Driver
  • Parallel Cable
  • Power Cable
  • Quick Installation Guide
  • Epson 3 Year Limited Warranty
