RGB liquid crystal shutter projection system
Front/rear/ceiling mount
0.67" (1.70cm) (C2 Fine)
Poly-Silicon TFT Active Matrix
2,304,000 dots (1920 x 1200) x3
1920 x 1200 (WUXGA) 4KE
640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
16:10
Cross stripe
Color Light Output: 5,200 lumens
White Light Output: 5,200 lumens
Up to 2,500,000:1
86%
Up to 1.07 billion colors
50 - 500"
80" screen 2.33m - 3.78m
Vertical: +/-50%
Horizontal: +/-20%
Vertical: +/-30 degrees
Horizontal: +/-30 degrees
Laser Diode
Normal: 20,000 hours
Quiet: 20,000 hours
Extended: 30,000 hours
Optical Zoom (manual)/Focus (manual)
1.5 - 1.7
20.0 - 31.8mm
1.00 - 1.6x (optical)
1.35 - 2.20 (optical)
Lens cap (without string)
2x HDMI (HDCP 2.3)
1x HDMI Out
1x HDBaseT
1x Variable Audio Out: Mini Stereo
1x USB Connector Type A
1x USB Connector Type B
1x Serial: RS-232C
1x Wired LAN RJ-45
32 Degree F to 113 Degree F (0 Degree C to 45 Degree C)
100 V - 240 V +/-10%, 50/60 Hz AC
Signal Detection on HDMI/Plug-In Detection
Yes (with timer)
Yes
323W (Normal)
250W (Quite)
242W (Extended)
2.0W Standby (Communication on)
0.5W Standby (Communication off)
31 dB (Normal Mode)
Max. 23 dB (ECO Mode)
Security cable hole, Kensington lock provision
Yes
Yes
10 W (mono)
Yes (up to 2 screens)
Yes
Yes
Yes
Yes
Yes
Yes
25.1 MHz - 594 MHz
26 kHz - 135 kHz
23.98/24/25/29.97/30/50/59.94/60 Hz
Source Search, HDMI, USB, Computer, LAN, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Default
Rear: Right/Left: -55 to +55 degrees
Upper/Lower: +75 to +15 degrees
Front: Right/Left: -30 to +30 degrees
Upper/Lower: 0 to +60 degrees
19.7' (6m)
White
Excluding Feet: 17.32 x 11.97 x 4.80" (43.9 x 30.4 x 12.1cm)
Including Feet: 17.32 x 12.59 x 5.35" (43.9 x 31.9 x 13.5cm)
18.7 lbs (8.48kg)
010343977044

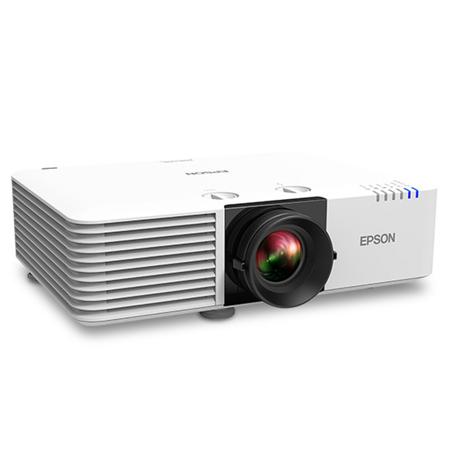

A fusion of vibrant colors, stunning clarity, and advanced technology, the PowerLite L570U WUXGA 3LCD Long Throw Laser Projector with 4K Enhancement is a compact yet powerful solution for diverse environments, from meeting rooms to classrooms. This lightweight, compact projector delivers native WUXGA resolution with 4K Enhancement, ensuring smooth, detailed images even at close range.
With a brightness of 5,200 lumens, the PowerLite L570U offers a flexible display that can adapt to various aspect ratios, from the standard 16:10 up to a massive 500", to the ultra-wide 21:9. This versatility makes it an ideal choice for hybrid work environments and classrooms where large, high-resolution displays are essential.
Installation is straightforward with the PowerLite L570U, designed for ease of operation from setup to shutdown. The projector boasts a 20,000-hour virtually maintenance-free laser light source and air filter, reducing downtime and ensuring consistent performance.
For complex multi-projector applications, the optional PixAlign camera can be attached, simplifying the process. The projector's 3-chip 3LCD technology delivers Best-in-Class Color Brightness, with 5,200 lumens of color and white brightness, and 4.6 million pixels on screen. This results in a visibly smoother and sharper display, even when viewing 4K content up close.
The PowerLite L570U offers a large, ultra-wide display, capable of projecting images up to 500" diagonal in standard 16:10 and 16:9, or in ultra-wide 16:6 and 21:9, perfect for immersive video conferencing.
Streamlined installation is made possible with wide lens shift, 1.6x optical zoom, built-in edge blending, and geometric correction tools accessible via the on-screen menu or Epson Professional Projector Tool software for Windows and macOS.
The projector offers versatile connectivity options, including HDBaseT, dual HDMI inputs, HDMI output, RJ-45, RS-232, and control management tools. Simplified operation and content sharing are made possible with auto power-on, split screen, screen sharing with Epson iProjection, and optional wireless networking with the ELPAP11 adapter.
Customizable brightness modes allow the user to maintain a consistent brightness level over time, or set the brightness to Extended to help maximize the life of the laser light source.
The optional PixAlign camera adds powerful multi-projector tools, blending assist for super-wide displays, simple stacking without an external PC, screen matching, and auto color calibration.
The built-in media player and content creation app include templates, effects, color filters, and customizable options. Playlist and playback functions allow for seamless content management directly or via the network.
As an eco-friendly choice, the PowerLite L570U is RoHS compliant and recyclable. Epson America, Inc. is a proud SmartWay Transport Partner, reflecting our commitment to sustainability.
