Just Reduced

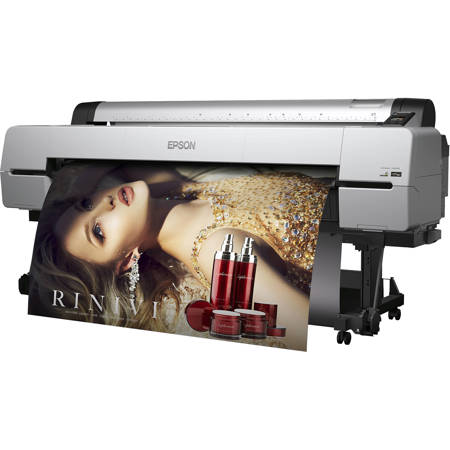

Epson SureColor P20000 64" Large-Format Inkjet Photo Printer, 16x20" Prints for 1:47-3:17 Mins Print Speed, 2400x1200dpi, Standard Edition

SKU: IESP20000 MFR: SCP20000SE
Earn VIP Reward Points

Key Features

  • Create stunning, large-format prints with the Epson SureColor P20000 printer.
  • Achieve exceptional 2400x1200 dpi resolution for detailed, vibrant inkjet prints.
  • Produce archival-quality photos with UltraChrome PRO ink, lasting up to 200 years.
  • Enjoy fast print speeds, creating 16x20" prints in as little as 1:47 minutes.
  • Handle various media with versatile paper handling for rolls up to 64" wide.
  • Connect easily via USB or Ethernet for seamless workflow integration with this printer.
See More Product Details
Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Diane B : What is the highest dpi for this printer? We use 85 line here at my screen printing company.ANDREW R : As stated in both the product description and the unit specs: Maximum Resolution 2400 x 1200 dpi

Reviews about this item

Review Summary

2019-07-04T08:24:23

Rated 5 out of 5

printer

awesome printer! Would recommend to everyone.

SHAINDY D.

Epson SureColor P20000 Specifications

  • Technology

    Printing: Advanced Precision Core microTFP 10-channel, drop-on-demand printhead with ink-repelling coating technology Droplet: Smallest droplet size of 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per line

  • Ink Type

    UltraChrome PRO pigment ink; 10-ink, 9-color

  • Configuration

    Ink Configuration: C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK Nozzle: Color and monochrome, 800 nozzles x 10 color channels

  • Fade Resistance

    Color: Up to 200 years
    Black-and-White: Up to 400 years

  • Maximum Resolution

    2400 x 1200 dpi

  • Print Speed

    16" x 20" prints from 1:47 to 3:17; normal is 2:09
    20" x 30" prints from 2:55 to 5:33; normal is 3:40
    40" x 60" prints from 8:33 to 16:30; normal is 10:52

  • Drivers

    Epson ESC/P raster photographic drivers standard; optional internal Adobe PostScript 3 print server

  • In-box Cartridge Fill Volume

    110 mL each color x 10 colors total

  • Retail Cartridge Fill Volume

    700 mL each color x 10 colors total

  • Ink Cartridge Shelf Life

    2 years from printed production date or 6 months after opened

  • Roll

    Single Top-Loading: 64" (162.6 cm)

  • 2" or 3" Core Diameter

    User-adjustable roll media adapters

  • Roll Cutting

    High-speed internal rotary cutter; auto or manual cut

  • Minimum auto cut length

    11.0" plus top and bottom margin (11.24" minimum)

  • Maximum Roll Diameter

    6.7" (170 mm)

  • Minimum Page Length

    11.0" plus top and bottom margin (11.24" min.)

  • Roll Media Handling: Top/Bottom Margins

    Normal: setting varies based on media selection, Optional fixed: 3/3, 15/15, 35/15, 45/15(mm)

  • Left/Right Margins

    3 mm each side; 0.24" total; or 0" at BorderFree sizes

  • Border Free Print Widths

    10", 11.8", 13" (super A3), 16", 17" (US C), 20", 20.28" (approx. B2), 23.39" (approx. A1), 24", 28.86 (B1), 29", 33.11" (approx. A0), 36", 40.55" (approx. B0) 44" (Super B0), 50", 54", 60"

  • Media Thickness

    0.8 mm to 1.5 mm

  • Single-sheet Top-loading

    Up to 64" wide

  • Sheet Loading

    Top-loading if less than 0.5 mm thick

  • Roll Paper Remaining

    Printable bar code tracking system

  • Optional Take-up Reel

    Auto forward and backward; lightbased media sensor

  • Single-sheet, Top-loading

    Up to 64" wide

  • Sheet Media Handling: Top/Bottom Margins

    3 mm/15 mm (0.12"/0.59")

  • Top/Bottom Margins with Centering On

    15 mm/15 mm

  • Minimum Paper Width

    10" / 254.00mm

  • Maximum Paper Width

    64" / 1625.60mm

  • Minimum Cut-sheet Size

    8.5" x 11"

  • Minimum Recommended Cut Sheet

    13" x 19"

  • Maximum Printable Cut-sheet Length

    80" / 2032.00mm

  • Maximum Printable Roll Length

    590.55" / 15000.00mm

  • Line Accuracy

    +/- 0.2% of specified length (+/- 0.26 mm min.)

  • Interfaces

    Hi-Speed USB 2.0 (1 port)
    1000Base-T Ethernet (1 port)

  • Operating Systems

    Apple OS X 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Microsoft Windows 10, 8.1, 7 (32-bit, 64-bit)

  • Acoustic Noise Level

    Sound Pressure Level: Less than 51.1 dB(A)
    Sound Power Level: approx. 65.3 dB(A)

  • Temperature

    Operating: 50 to 95 deg. F / 10 to 35 deg. C
    Operating (recommended): 65 to 75 deg. F / 18 to 24 deg. C
    Storage: -4 to 104 deg. F / -20 to 40 deg. C

  • Relative Humidity

    Operating: 20 - 80% (no condensation)
    Operating (recommended): 45 - 60% (no condensation)
    Storage: 5 - 85% (no condensation)

  • Electrical Requirements

    Voltage: AC 110 - 240 V
    Frequency: 50 - 60 Hz
    Current: 5 A

  • Power Consumption

    Printing: approx. 95 W
    Sleep Mode: approx. 2.8 W (1000 BaseT Ethernet in Standby Mode)
    Power Off: less than 0.5 W ENERGY STAR qualified

  • Dimensions (W x D x H)

    95.1 x 38.4 x 45.1" / 2415.54 x 975.36 x 1145.54mm(Basket Open)

  • Weight

    377lbs / 171.01kg

  • UPC Code

    010343928770

25 Accessories for Epson SureColor P20000 64" Large-Format Inkjet Photo Printer, 16x20" Prints for 1:47-3:17 Mins Print Speed, 2400x1200dpi, Standard Edition

  • All Accessories (25)
  • Ink (10)
  • Cables & Adapters (2)
  • Photo Paper (2)
  • Printer Paper (10)
  • Copy Paper (1)

About Epson SureColor P20000

FEATURED REVIEWS

printer

By SHAINDY D.

awesome printer! Would recommend to everyone.

The Art of Performance
High-performance 9-color archival pigment for high-volume photographic printing environments. The all-new 64" Epson SureColor P20000 is the successors to one of the most widely used fine art printers ever developed the Epson Stylus Pro 11880.

Designed for high-production photographic, fine art and indoor display graphics printing, they have incorporated newly-developed imaging technologies including an all-new high-performance 2.6" wide Epson Precision Core MicroTFP print head. Along with an all-new Epson Ultra Chrome PRO nine-color pigmented ink set including four levels of gray - the all new SureColor P20000 the ultimate production tools for the demanding requirements of high-production color and black-and-white fine art printmaking.

Including advanced media handling options from cut sheet to roll, from plain papers to photographic, fine art and even 1.5 mm thick poster boards, the new Epson SureColor P20000 redefine the state of the art in wide format, high-production photographic imaging applications.

Remarkable productivity
New Precision Core MicroTFP print head utilizing 8000 nozzles, for print speeds up to twice as fast as their previous generation.

Outstanding print quality
Epson Ultra Chrome PRO archival ink technology produces exceptional color prints that last up to 200 years, along with four levels of gray for accurate transitions with very low grain, even at the fastest print modes.

Low cost of operation
High-capacity 700 mL ink cartridges, along with more efficient ink usage, allows for an extremely low cost per print.

Superior workflow features
Standard gigabit Ethernet and Hi-Speed USB, along with an internal 320GB print server, allows for exceptional networking performance for multiple workstations, built-in web page for job and file management as well as job accounting capabilities.

Epson SureColor P20000 Features

  • An Epson PrecisionCore microTFP 10-channel printhead works precisely to create images with a high level of detail, using resolutions of up to 2400 x 1200 dpi and Variable-Sized Droplet Technology to create ink drops as small as 3.5pL
  • The 2.64"-wide printhead features 800 nozzles per color and 10 channels for a total of 8000 nozzles
  • Photo and Matte Black each have dedicated nozzles for instant switching between the two
  • Nozzle Verification Technology automatically verifies and cleans nozzles
  • The P20000 can work quickly, featuring speeds of 1:47 to 3:17 to create a 16 x 20" print
  • Drafts can be created at a rate of 1311 sq ft/hour and high-speed poster printing supports 411 sq ft/hour with four passes and 273 sq ft/hour with six passes
  • For more demanding applications, users can access an indoor display graphics setting for six-pass 273 sq ft/hour printing as well as a photo and fine art mode for eight-pass 209 sq ft/hour and 16-pass 104 sq ft/hour
  • An exhibition setting offers the maximum quality of 24 passes with a speed of 68 sq ft/hour
  • A cut sheet feeder, roll media feeder, and post board input slot allow for a wide range and variety of media and paper types to be used
  • The printer supports media ranging in width from 10-64" and up to 80" long for cut sheets and 590.55" long for rolls
  • A built-in CMOS sensor photographs the back of the media and then a pattern recognition algorithm and Sub-Pixel Matching Technology will identify differences and precisely move the media
  • Media Inductive Roller System is specially coated to protect the surface of your media and ensure paper is loaded straight and without any skew
  • Using additional rollers, a Skew Reduction System will ensure consistent media feed while an automatic slack take-up and back tension control help to remove any skew
  • BorderFree printing at 10", 13", 16", 17", 20", 24", 29", 36", 44", 50", 54", and 60" widths
  • A built-in automatic rotary media cutter will help create clean cuts at the end of printing
  • The top-loading cut sheet media feeder works with 8.5 x 11" media, though 13 x 19" is recommended, and supports sheets up to 64 x 80" in size
  • It allows for a slight bend without requiring space behind the printer and is the safest loading method for thinner or more delicate paper types
  • The straight-through post board media feeder supports single sheets from 17-64" in width and up to 59 mil thick
  • The front control panel is equipped with a 2.6" color LCD as well as various navigation buttons and an LED status lamp
  • Epson Professional Printer drivers support true 16-bit input and work with Windows and macOS/OS X computers
  • An internal 320GB print server helps manage print data from multiple locations and features security, including IPsec and IEEE802.1x protocols
  • USB 2.0 and Ethernet connectivity are available for standard wired and networking options
  • Epson PrecisionDot Screening calculates dot size and placement by using fixed and three-level variable-sized droplet technology to create accurate blends and transitions
  • Advanced Black & White Printing Technology is a dedicated driver option for creating professional-quality monochrome prints

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Create stunning, large-format prints with the Epson SureColor P20000 printer.
  • Achieve exceptional 2400x1200 dpi resolution for detailed, vibrant inkjet prints.
  • Produce archival-quality photos with UltraChrome PRO ink, lasting up to 200 years.
  • Enjoy fast print speeds, creating 16x20" prints in as little as 1:47 minutes.
  • Handle various media with versatile paper handling for rolls up to 64" wide.
  • Connect easily via USB or Ethernet for seamless workflow integration with this printer.

What's in the box:

  • Epson SureColor P20000 64 " Large-Format Inkjet Printer
  • Printer Stand with Catch Basket
  • Spindle Free Roll Media Adaptors
  • Internal Print Server 320GB
  • Ink Maintenance Tanks
  • Set of 10 110ml Ink Cartridges (Photo Black
  • Cyan
  • Vivid Magenta
  • Yellow
  • Light Cyan
  • Vivid Light Magenta
  • Dark Gray
  • Matte Black
  • Gray
  • Light Gray)
  • AC Power Cable
  • User Guide Kit
  • Sample Roll
  • Epson Double Weight Matte Paper
  • Software (Download)
  • Epson 1 Year Limited Warranty
