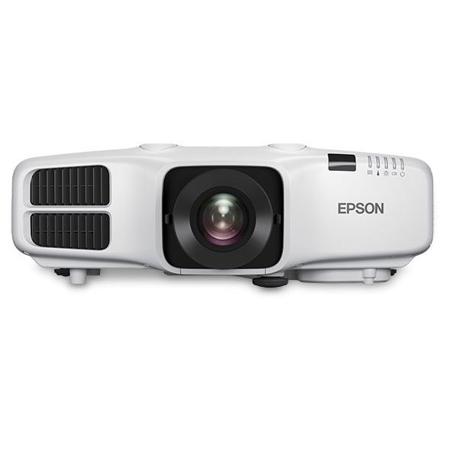

Epson PowerLite 5510 XGA 3LCD Projector
See all Epson items

Epson PowerLite 5510 XGA 3LCD Projector, 1024x768, 5500 lumens

SKU: IESPL5510PRJ

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Epson PowerLite 5510 Specifications

  • Projection System

    High-aperture Epson 3-chip 3LCD technology

  • Projection Method

    Front / rear / ceiling mount

  • Driving Method

    Epson Poly-silicon TFT Active Matrix

  • Pixel Number

    786,432 pixel (1024x768) x 3

  • Color Brightness - Color Light Output

    5500 lumens

  • White Brightness - White Light Output

    5500 lumens

  • Aspect Ratio

    Supports 4:3, 16:9, 16:10

  • Native Resolution

    1024 x 768 (XGA)

  • Resize

    640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050

  • Lamp Type

    300 UHE

  • Lamp Life

    Normal mode: Up to 10,000 hours
    ECO mode: Up to 5000 hours

  • Brightness Uniformity

    87%

  • Throw Ratio Range

    1.27 - 2.59

  • Size - projected distance

    30" - 300"

  • Keystone Correction

    Horizontal: +/-30 deg.
    Vertical: +/-30 deg.

  • Contrast Ratio

    High Brightness, Dynamic Mode: 15,000:1

  • Color Processing

    10 bit

  • Color Reproduction

    Up to 1 billion colors

  • Effective Scanning Frequency Range

    Pixel Clock: 13.5 MHz - 162 MHz (up to UXGA 60 Hz)
    Horizontal: 15 KHz - 92 KHz
    Vertical: 50 Hz - 85 Hz

  • Lens Type

    Manual focus / zoom

  • F-number

    1.5 - 2.15

  • Focal Length

    21.34 mm - 37.99 mm

  • Zoom Ratio

    Optical zoom 1.0x - 2.0x

  • Lens Shift

    Horizontal: +/-38 deg.
    Vertical: +/-58 deg.

  • Display Performance

    NTSC: 480 line
    PAL: 576 line (depends on observation of the multi-burst pattern)

  • Input Signal

    NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p

  • Interfaces

    2x HDMI
    1x Computer: D-sub 15 pin
    Component Video: 1x BNC
    Audio-in: 2x Mini stereo
    Network: 1x RJ-45 100 Mbps
    Serial: 1x RS-232c
    USB: 1x Type A (for wireless module, service, firmware update, clone settings)
    1x Type B (firmware update)
    1x Hardwire remote jack
    Monitor Out: 1x D-sub 15 pin
    1x Audio Out

  • Fan Noise

    Normal mode: 38 dB
    ECO mode: 28 dB

  • Remote Control Functions

    Power, Source Search Selection, Computer, Video, A/V Mute, Freeze, User ID, Auto, Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume, Help, Menu, Enter, Esc and Pointer Functions

  • Operating Distance

    49' (14.94m)

  • Operating Angle

    Right / Left:
    Front: +/-60 deg.
    Rear: +/-30 deg.
    Upper / Lower:
    Front: +/-20 deg.
    Rear: +10 to +45 deg.

  • Power Supply Voltage

    100 - 240 V +/-10%, 50/60 Hz AC

  • Power Consumption

    Normal mode: 462 W
    ECO mode: 324 W
    Communication on: 3.0 W standby
    Communication off: 0.5 W standby

  • Temperature

    0 to 45 deg. C (32 to 113 deg. F)

  • Security

    Security Cable Hole
    Lens Lock
    Kensington lock provision

  • Dimensions (W x D x H)

    Including feet: 8.5 x 13.9 x 6.2" (215.90 x 353.06 x 157.48mm)
    Excluding feet and lens: 14.8 x 11.4 x 4.3" (375.92 x 289.56 x 109.22mm)

  • Weight

    With standard Lens: 15.2lbs (6.89kg)

  • UPC Code

    010343932623

About Epson PowerLite 5510

Bright large-venue projector with lens shift and robust connectivity
Designed for large venues, the PowerLite 5510 installation projector delivers bright, uncompromising image quality and professional-grade reliability. Offering 3x Higher Color Brightness than competitive models, Epson 3LCD projectors ensure bright, vivid images. Featuring 5,500 lumens of color brightness and 5,500 lumens of white brightness1, plus XGA resolution with up to 15,000:1 contrast ratio, the PowerLite 5510 shines, even in environments with high ambient light. Horizontal and vertical lens shift increases installation flexibility, while versatile digital connectivity, including 2x HDMI, offers easy integration. The projector also supports enterprise-level wireless security and remote network monitoring and control with convenient Message Broadcasting and scheduling functions.

• 3x Higher Color Brightness and reliable performance: 3LCD, 3-chip technology
• Look for two numbers: The PowerLite 5510 has: 5,500 lumens Color Brightness for accurate, vivid color, 5,500 lumens White Brightness for well-lit rooms
• Crisp, detailed images: XGA (1024 x 768) resolution with up to 15,000:1 dynamic contrast ratio
• Installation flexibility: up to +/-58 percent vertical and +/-38 percent horizontal lens shift; also features lens shift lock
• Versatile connectivity: 2x HDMI, VGA, BNC and LAN inputs for easy integration with any system
• Enterprise-level wireless security: the optional wireless LAN module (sold separately) supports robust wireless network security protocols that help keep information safe
• Remote network monitoring and control: plus Message Broadcasting and built-in scheduling functions
• Long-lasting lamp: up to 10,000 hours in ECO Mode
• Advanced collaboration features: simultaneously project side-by-side from different sources with Split Screen
• Seamless integration tools: compatible with Crestron RoomView and Extron

Bright and Colorful
Features 5500 lumens of color brightness (color light output) and 5500 lumens of white brightness (white light output).

XGA Resolution
1024 x 768 resolution.

Lens Shift
Equipped with horizontal and vertical lens shift.

HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable.

Split Screen
Display content from two inputs simultaneously, side by side, on a single screen.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Epson PowerLite 5510 XGA 3LCD Projector
  • Power Cable
  • Computer Cable (VGA)
  • Projector Remote Control with Batteries
  • User Manual CD
  • EasyMP Software CD
  • Quick Setup Sheet
  • Registration Card and Lens Lock Screw
  • Epson 2 Year Warranty (1 Year on Lamp)
