High-aperture Epson 3LCD, 3-chip technology
Front/rear/ceiling mount
Epson Poly-silicon TFT Active Matrix
2,304,000 pixels (1920 x 1200) x 3
5,500 lumens
5,500 lumens
Supports 4:3, 16:9, 16:10
1920 x 1200 (WUXGA)
640 x 480, 800 x 600, 1280 x 1024,1400 x 1050
300 W UHE
10,000 hours (ECO Mode), 5,000 hours (Normal Mode)
87%
1.26 - 2.30
50" - 300"
Vertical: +/-30 deg., Horizontal: +/-30 deg.
(High Brightness, Dynamic Mode) 15,000:1
Up to 1 billion colors
Pixel Clock:
13.5 MHz - 162 MHz (up to UXGA 60 Hz)
Horizontal:
15 kHz - 92 kHz
Vertical:
50 Hz - 85 Hz
Manual focus/zoom
1.65 - 2.55
21.34 mm - 37.99 mm
Optical zoom: 1.0x - 1.8x
NTSC: 480 line, PAL: 576 line (depends on observation of the multi-burst pattern)
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p
1x HDBaseT
2x HDMI (1x MHL)
Computer: 1x D-sub 15 pin
Component Video: 1x BNC
Audio-in: 2x Mini stereo
Network: 1x RJ-45 100 Mbps
Serial: 1x RS-232c
USB: 1x Type A (for wireless module, service, firmware update, clone settings)
1x Type B (firmware update)
1x Hardwire remote jack
Monitor Out: 1x D-sub 15 pin
1x Audio Out
38 dB (Normal Mode), 28 dB (ECO Mode)
Power, Source Search Selection, Computer, Video, A/V Mute, Freeze, User ID, Auto, Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume, Help, Menu, Enter, Esc and Pointer Functions
49' (14.94m)
Right/left: Front: +/- 60 deg.; Rear: +/- 30 deg.
Upper/lower: Front: +/- 20 deg.; Rear: +10 to + 45 deg.
100 - 240 V +/-10%, 50/60 Hz AC
462 W (Normal Mode)
356 W (ECO Mode)
3.0 W Standby (Communication On)
0.5 W Standby (Communication Off)
0 to 45deg. C (32 to 113deg. F)
Including feet: 8.5 x 13.9 x 6.2" (215.90 x 353.06 x 157.48mm)
Excluding feet and lens: 18.5 x 12.6 x 5.2" (469.90 x 320.04 x 132.08mm)
15.2lbs (6.89kg) with standard Lens
010343932609
I love it.
By Big 1.
I have used this projector for outdoor movies with the family as well as movies nights at church and powerpoints in children's church and Sunday School.

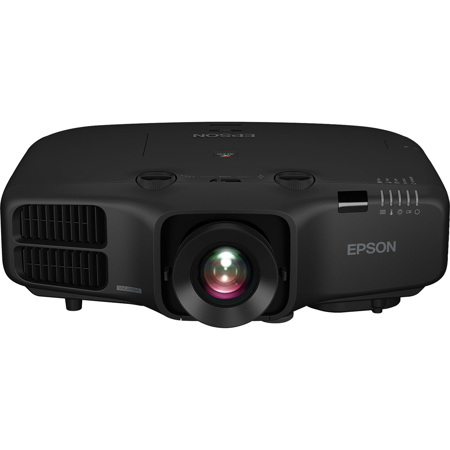

Full HD large-venue projector with lens shift and robust connectivity
Optimized for large venues, the PowerLite 5535U Full HD installation projector features black casing and delivers uncompromising image quality and professional-grade reliability. Offering 3x Higher Color Brightness than competitive models, Epson 3LCD projectors ensure bright, vivid images. With 5,500 lumens of color brightness and 5,500 lumens of white brightness, plus WUXGA resolution with 1080p support, the PowerLite 5535U shines bright, even in well-lit environments. Horizontal and vertical lens shift increases installation flexibility, while HDBaseT connectivity ensures easy integration. Miracast allows wireless screen mirroring for Android devices and 1080p video streaming. The projector also supports enterprise-level wireless security and remote network monitoring/control.
3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology
Look for two numbers - The PowerLite 5535U has: 5,500 lumens Color Brightness for accurate, vivid color, 5,500 lumens White Brightness for well-lit rooms
Crisp, detailed widescreen images up to 300" - WUXGA resolution (1920 x 1200) with Full HD 1080p support and up to 15,000:1 dynamic contrast ratio
Installation flexibility - up to +/-50 percent vertical and +/-10 percent horizontal lens shift
Wireless screen mirroring with Miracast - stream Full HD 1080p content and mirror your wireless Android device screen
Advanced connectivity - HDBaseT and 2x HDMI inputs for easy integration with any system
Enterprise-level wireless security - the optional wireless LAN module (sold separately) supports robust wireless network security protocols that help keep information safe
Remote network monitoring and control - plus Message Broadcasting and built-in scheduling functions
Long-lasting lamp - up to 10,000 hours in ECO Mode
Seamless integration tools - compatible with Crestron RoomView and Extron
3x Brighter Colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors. Delivering 5500 lumens of color brightness and 5500 lumens of white brightness, the PowerLite 5535U uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
Bright and Colorful
Features 5500 lumens of color brightness (color light output) and 5500 lumens of white brightness (white light output).
WUXGA Resolution
1920 x 1200 Full HD widescreen resolution.
Lens Shift
Equipped with horizontal and vertical lens shift.
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable.
HDBaseT
Combines HDMI, Ethernet and RS-232 into one cable.
