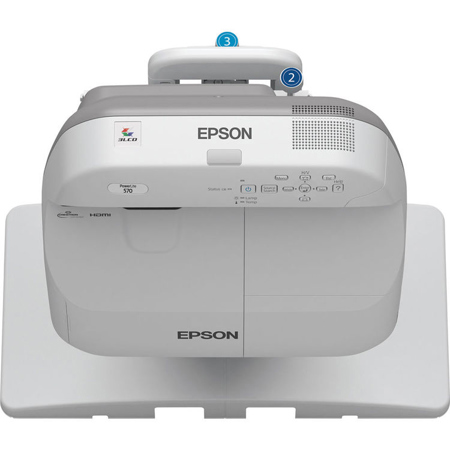

Epson PowerLite 570 XGA 3LCD Ultra-Short-Throw Projector, 1024x768, 2700 Lumens

SKU: IESPL570

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Epson PowerLite 570 Specifications

  • Projection System

    3LCD, 3-chip technology

  • Projection Method

    Front/rear wall mount

  • Driving Method

    Poly-silicon TFT Active Matrix

  • Pixel Number

    3x 786432 dots (1024 x 768)

  • Color Brightness

    Color Light Output: 2700 lumens

  • White Brightness

    White Light Output: 2700 lumens

  • Aspect Ratio

    4:3

  • Native Resolution

    1024 x 768 (XGA)

  • Resize

    640 x 580 (VGA), 800 x 600 (SVGA)
    1152 x 864 (SXGA), 1280 x 800 (WXGA)
    280 x 960 (SXGA2), 1280 x 1024 (SXGA3)
    1280 x 768 (WXGA 60-1)
    1360 x 768 (WXGA 60-2), 1440 x 900 (WXGA+)
    1400 x 1050 (SXGA+), 1600 x 900 (WXGA++)

  • Lamp Type

    215W UHE

  • Lamp Life

    Up to 10000 hours (ECO Mode)
    Up to 5000 hours (Normal Mode)

  • Throw Ratio Range

    0.31 to 0.42

  • Size (Projected Distance)

    55.9 x 93.2" / 1419.86 x 2367.28mm

  • Manual Keystone Correction

    Vertical: +/- 3 deg.
    Horizontal: +/- 3 deg.

  • Mac Connectivity

    Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included), DP to HDMI or VGA

  • Contrast Ratio

    Up to 10000:1

  • Color Reproduction

    Up to 1.07 billion colors

  • Projection Lens: Type

    No optical zoom/Manual focus

  • Projection Lens: F-number

    1.8

  • Projection Lens: Focal Length

    3.71mm

  • Projection Lens: Zoom Ratio

    Digital zoom 1.0 to 1.35

  • Interfaces: Wireless LAN Port

    802.11 b/g/n (optional - module sold separately)

  • Display

    NTSC: 480 lines
    PAL: 576 lines (Depends on observation of the multi-burst pattern)

  • Input Signal

    NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM

  • Speaker

    16W (mono)

  • Fan Noise

    Normal Mode: 35dB
    ECO Mode: 28dB

  • Security

    Kensington style lock provision, padlock and security cable hole, password protect function

  • Remote Control

    Functions: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V Mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc
    Operating Distance: Front/rear: 19.7' / 6m

  • Operating Temperature

    41 to 95 deg. F / 5 to 35 deg. C

  • Power Supply Voltage

    100 to 240V +/- 10%, 50/60Hz

  • Power Consumption

    333W (Normal Mode), 239W (ECO Mode)
    4.3W Standby (Communication On)
    0.33W Standby (Communication Off)

  • Dimensions (W x D x H)

    Including feet: 14.4 x 14.8 x 7.6" / 365.76 x 375.92 x 193.04mm
    Excluding feet: 14.4 x 14.8 x 6.1" / 365.76 x 375.92 x 154.94mm

  • Weight

    11.7lbs / 5.31kg

4 Accessories for Epson PowerLite 570 XGA 3LCD Ultra-Short-Throw Projector, 1024x768, 2700 Lumens

  • All Accessories (4)
  • Adapters & Mounts (3)
  • Speakers (1)

About Epson PowerLite 570

The ideal ultra-short-throw projector for classroom collaboration
The PowerLite 570 ultra-short-throw projector brings a new level of collaborative learning to the BYOD classroom. With brilliant image quality, plus advanced network connectivity, this wireless XGA performer makes it easier than ever to share engaging lessons and interact with every student. Offering 3x Brighter Colors than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. Featuring 2700 lumens of color brightness and 2700 lumens of white brightness, the PowerLite 570 delivers dynamic images that are sure to captivate any classroom. It can project a 93" image from just 12" away. And, it features Moderator software, so you can easily share students' work from multiple devices, simultaneously.

• 3x Brighter Colors and reliable performance - 3LCD, 3-chip technology
• One measurement of brightness is not enough - look for both high color brightness and high white brightness. The PowerLite 570 has - Color Brightness: 2700 lumens; White Brightness: 2700 lumens
• Amazing image quality - native XGA resolution (4:3 performance), up to 10,000:1 contrast ratio
• Ideal wall-mount installation - get a 93" image from as little as 12" away; significantly reduces shadow interference and glare
• Convenient collaboration for BYOD classrooms - wirelessly share and compare student's work from multiple devices, simultaneously, with Moderator software
• Manage your projector and present remotely - easy network connectivity; software included
• Wireless projection - supports iPhone, iPad and Android mobile devices with the Epson iProjection App
• 2x HDMI - supports multiple high-definition AV devices, with MHL support
• Powerful sound to engage every student - built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
• Long-life, low-cost lamp - lasts up to 10,000 hours in ECO Mode

3x Brighter Colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors. Delivering 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output, the PowerLite 570 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Bright and Colorful
Features 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output).

Ultra-Short Throw Projector
Can be mounted only 12.2" away from the board and the projected XGA image can get as large as 93" diagonal with reduced shadow interference.

Moderator Function
Multi-PC projection and Moderator function allows up to 50 devices to connect over a network and then select up to 4 to project simultaneously.

iProjection App Compatible
Wirelessly project from your iPhone, iPad, iPod Touch or Android mobile device.

3LCD
The #1 projection technology in the world, with 3 chips that deliver both high color brightness and high white brightness.

HDMI Connectivity
Get both audio and brilliant HD video content with just one HDMI cable (compatible with the latest laptops, Blu-Ray and media players).

Multi-PC Collaboration
Epson's Multi-PC Collaboration utility allows you to display four PC screens simultaneously over the network with even more users connected to the same projector on Standby Mode.

Pre-set Templates
Choose from four pre-set templates or create a custom template to project lines or grids onto whiteboards or chalkboards.

Crestron RoomView Compatible
Crestron RoomView compatibility allows IT managers (those who have standardized their equipment using this popular platform) to easily monitor and control network-connected Epson projectors via the same software they use currently to monitor all other projectors on their network.

Auto Iris Technology
Epson's Auto Iris Technology adjusts the aperture to provide the optimum contrast and brightness for each scene.

Quick Corner
This innovative feature allows you to move any of the four corners of an image independently at setup, to adjust each corner for a perfectly rectangular picture.

Built-in Closed Captioning
Built-in closed captioning helps educational institutions meet ADA 508 requirements for students with hearing impairments.

Epson iProjection App
Display from your iOS or Android mobile device with the free Epson iProjection App and any nearby wireless Epson projector.

What's in the box:

  • Epson PowerLite 570 XGA 3LCD Ultra-Short-Throw Projector
  • Wall Mount
  • 15' Power Cord
  • 16' Computer Cable (VGA)
  • Projector Remote Control
  • Batteries
  • User Manual CD
  • Projector Software CDs
  • Quick Setup Sheet
  • Installation Guide
  • Template Sheet
  • Password Protection Sticker
  • Epson Projector 2 Year Limited Warranty
  • Epson 90 Day Lamp Warranty
