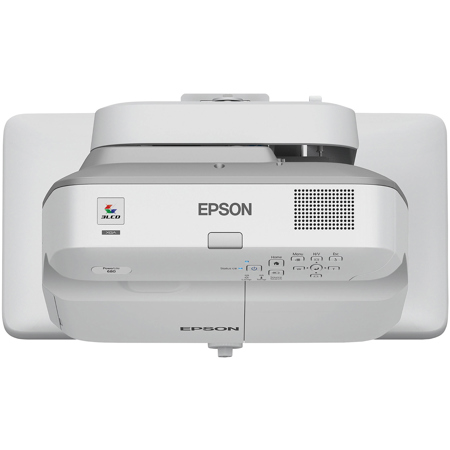

Epson PowerLite 680 XGA 3LCD Projector for SMART Board Interactive Whiteboards, 1024x768, 3500 Lumens

SKU: IESPL680XGA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Epson PowerLite 680 Specifications

  • Projection System

    3LCD, 3-chip technology

  • Projection Method

    Front / rear / wall mount / table

  • Driving Method

    Poly-silicon TFT Active Matrix

  • Pixel Number

    3x (1024x768) 786,432 dots

  • Color Brightness - Color Light Output

    3500 lumens

  • White Brightness - White Light Output

    3500 lumens

  • Aspect Ratio

    4:3

  • Native Resolution

    1024x768 (XGA)

  • Resize

    640x480 (VGA); 800x600 (SVGA); 1152x864 (SXGA); 1280x800 (WXGA); 1280x960 (SXGA2); 1280x1024 (SXGA3); 1280x768 (WXGA 60-1); 1366x768 (WXGA 60-2); 1440x900 (WXGA+); 1400x1050 (SXGA+); 1600x900 (WXGA++); 1600x1200 (UXGA)

  • Lamp Type

    250W UHE

  • Lamp Life

    ECO mode: Up to 10000 hours
    Normal mode: Up to 5000 hours

  • Throw Ratio Range

    0.32 - 0.43

  • Size - Projected Distance

    55.4" - 92.7"

  • Keystone Correction

    Manual:
    Vertical: +/-3 degrees
    Horizontal: +/-3 degrees

  • Contrast Ratio

    Up to 14000:1

  • Color Reproduction

    Up to 1.07 billion colors

  • Power Supply Voltage

    100 - 240V +/-10%, 50 / 60Hz

  • Power Consumption

    ECO mode: 324W
    Normal mode: 373W
    Communication on: 2.2W standby
    Communication off: 0.23W standby

  • Temperature

    41 deg. to 104 deg. F (5 deg. C to 40 deg. C)

  • Security

    Kensington-style lock provision
    Padlock and security cable hole
    Password protect function

  • Eco Function

    RoHS compliant

  • Projection Lens Type

    Digital zoom/Manual focus

  • F-Number

    1.6

  • Focal Length

    3.7mm

  • Zoom Ratio

    Digital zoom 1.0 - 1.35

  • Standard Connectivity

    Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included), DP to HDMI or VGA adapter (not included)

  • Remote Control Functions

    Source Search, HDMI/Video, LAN, Computer, USB, Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Page Up and Down, Home, Auto, Mouse Functions, User, Split Screen

  • Operating Distance

    Front / Rear: 19.7' (6m)

  • Display Performance

    NTSC: 480 lines
    PAL: 576 lines (Depends on observation of the multi burst pattern)

  • Input Signal

    NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

  • Interfaces

    Wireless LAN Port 802.11 (USB) b/g/n (Optional - module sold separately)
    1x Microphone
    1x RS-232c
    1x Video
    Audio In: 3x Mini Stereo
    1x USB (Type B)
    1x USB (Type A Power)
    1x Audio-out
    Monitor-out: 1x / Computer 2
    2x Computer
    Network: 1x RJ-45
    3x HDMI (1x MHL)

  • Speaker

    16W mono

  • Fan Noise

    ECO mode: 30dB
    Normal mode: 35dB

  • Dimensions (WxDxH)

    Including Feet: 14.5 x 15.8 x 7.4" (368.30 x 401.32 x 187.96mm)
    Excluding Feet: 14.5 x 15.8 x 5.9" (368.30 x 401.32 x 149.86mm)

  • Weight

    12.6 lbs (5.72kg)

About Epson PowerLite 680

Ultra short-throw presentation display for interactive SMART Boards
Compatible with SMART Board M680 and 880 interactive whiteboards, the PowerLite 680 ultra short-throw XGA presentation display for SMART supports the SMART Extended Control Panel and features advanced network connectivity. Pair it with a SMART Board (sold separately) featuring SMART Learning Suite tools for an integrated solution. Offering up to 3x Higher Color Brightness than competitive models, Epson 3LCD projectors and displays ensure vivid lessons. Delivering 3500 lumens of color and white brightness, the 680 projects a 77" image from less than 7". Easy network connectivity and included software allow remote management and presentation. Plus, its lamp lasts up to 10000 hours in ECO Mode.

• Compatible - specially designed to work with SMART Board M680 and 880 interactive whiteboards
• Seamless integration - connect and control your display via the SMART Extended Control Panel (ECP)
• Up to 3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology
• Bright display - 3500 lumens color/white brightness
• Long-life lamp - lasts up to 10000 hours in ECO Mode
• Incredible image quality - native XGA resolution (1024 x 768) and 4:3 format
• Ultra short-throw presentation display - get a 77" image from less than 7" away with virtually no shadow interference
• Manage your display and send announcements remotely - easy network connectivity; software included
• Wireless support - display Chromebook, iOS, Android, Mac and PC screens
• Versatile connectivity - 3x HDMI supports multiple high-definition A/V devices, with MHL support

Bright and Colorful
Features 3500 lumens of color brightness (color light output) and 3500 lumens of white brightness (white light output).

XGA Resolution
1024 x 768 resolution.

Ultra Short Throw Distance
Project large 77" images from a short distance. Ideal for use with interactive whiteboards or standard whiteboards. Minimizes shadow interference and glare.

HDMI / MHL Connectivity
Stream 1080p content and mirror your mobile device with MHL & the latest in connectivity. Get instant access to movies, games and more from MHL-enabled devices.

Multi-PC Projection and Moderator Function
Connect up to 50 devices over a network and select up to 4 displays to project simultaneously - great for comparing students' work.

Lamp Life
High-efficiency E-TORL lamp lasts up to 5000 hours in normal mode and up to 10000 hours in ECO Mode.

What's in the box:

  • Epson PowerLite 680 XGA 3LCD Projector
  • 15' Power Cord
  • Remote Control
  • Batteries
  • User Manual CD
  • Software CDs
  • Quick Setup Sheet
  • Installation Guide
  • Template Sheet
  • Projector Feet
  • Epson 2 Year Projector and 90 Day Lamp Limited Warranty
