Review Summary
RGB Liquid Crystal Shutter Projection System
Front, Front/Ceiling, Rear, Rear/Ceiling
0.67" (D10 with C2Fine)
Poly-silicon TFT Active Matrix
2,304,000 pixels (1920 x 1200) x 3
6000 Lumens
6000 Lumens
16:10
1920 x 1200 (WUXGA)
1.35-2.20
80" screen: 2.33-3.78 m
Vertical: +/-30 degrees; Horizontal: +/-30 degrees
Up to 2,500,000:1
10 bit
Up to 1.07 billion colors
Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Laser Diode
Analog: 13.5-162 MHz (up to UXGA 60 Hz)
Digital: 13.5-162 MHz (up to UXGA 60 Hz)
Analog: 15-92 kHz
Digital: 15-75 kHz
Analog: 50-85 Hz
Digital: 24/30/50/60 Hz
Optical Zoom (Manual)/Focus (Manual)
1.5-1.7
Zoom: Wide: 50"-500" [1.44-14.76 m]; Zoom: Tele: 50"-500" [2.35-23.84 m]
20.0-31.8 mm
1-1.6
Lens cap (without string)
1x HDBaseT
2x HDMI (1x MHL)
Computer: 1x D-sub 15 pin
1x Control I/O: RS-232C D-sub 9 pin
USB-I/O: 1x Type A; 1x Type B
Wired LAN RJ45
Wireless LAN Built-in
2x Audio in (stereo)
1x Audio out (stereo)
38 dB (Normal Mode), 27 dB (ECO Mode)
8m (26.25')
Front: Right/Left: +/-60 degrees; Upper/Lower: +30 to -20 degrees
Rear: Right/Left: +/-30 degrees; Upper/Lower: +50 to +10 degrees
100 - 240 V +/-10%, 50/60 Hz AC
Normal: 370 W; Quiet: 276 W; Networked Standby 2.0 W; Energy Saving: 0.3 W
Including feet: 17.32 x 11.97 x 5.35" (43.99 x 30.40 x 13.59cm)
Excluding feet: 17.32 x 11.97 x 4.73" (43.99 x 30.40 x 12.01cm)
With standard lens: 18.7 lbs (8.48kg) (Approx.)

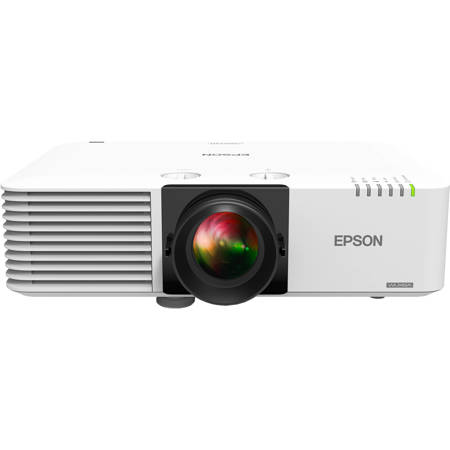

Powerful, compact WUXGA laser projector with 6,000 lumens plus lens shift
The compact, affordable PowerLite L610U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,000 lumens color/white brightness. This wireless projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours. And, it offers virtually maintenance-free operation for the life of the optical engine. Plus, it features a Dynamic contrast ratio of up to 2,500,000:1. It also includes manual lens shift, wireless networking with enterprise-level security, Miracast and advanced installation features.
Bright, vivid color
6,000 lumens color/white brightness.
Full HD, widescreen images up to 500"
WUXGA resolution (1920 x 1200); Full HD 1080p support.
Breakthrough laser technology
Features a laser light source of up to 20,000 hours; plus, Instant ON/OFF.
Virtually maintenance-free operation
For the life of the optical engine.
Extraordinary sharpness and detail
Up to 2,500,000:1 Dynamic contrast ratio.
Flexible installation
Up to +/-50 percent vertical and +/-20 percent horizontal manual lens shift.
Integrated wireless networking with enterprise-level security
Plus wireless content sharing with Epson iProjection; and wireless mirroring with Miracast for Android/Windows 8.1+ devices or AirPlay for iOS devices (requires Apple TV).
Advanced installation features
360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner and more.
Robust connectivity
Supports HDBaseT, 2x HDMI, VGA, RJ-45, stereo mini and control management tools.
Constant Brightness Mode
Fine-tune the brightness setting to help maximize run time.
