Epson SureColor P10000 Specifications

Additional Item Includes

Additional Item Includes

Jump to...
  • Additional Item Includes

    - T800700 Dark Gray 110 ml Ink Cartridge
    - T800800 Matte Black 110 ml Ink Cartridge
    - T800900 Gray 110 ml Ink Cartridge
    - T800900 Light Gray 110 ml Ink Cartridge
    - Internal Print Server 320GB
    - Ink Maintenance Tanks (Installed)
    - AC Power Cable
    - User Guide Kit (Documentation)
    - Epson 1 Year Warranty

  • Printing Technology

    Advanced PrecisionCore MicroTFP Print Head
    10-channel, piezo inkjet print head

  • Minimum Ink Droplet Size

    Enhanced Variable Droplet Technology as small as 3.5 picoliters

  • Maximum Print Resolution

    2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpi

  • Print Speed

    16 x 20" (406.40 x 508.00mm) prints from 1:47 to 3:17 Production is 2:09
    20 x 30" (508.00 x 762.00mm) prints from 2:55 to 5:33 Production is 3:40

  • Nozzle Configuration

    Color and Monochrome; 800 nozzles x 10 channels

  • Ink Type

    Epson UltraChrome PRO pigment inks
    Printer is designed for use with Epson cartridges only, not third-party cartridges or ink

  • Ink Palette

    C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK

  • Ink Configuration

    10-ink, 9-color

  • Replacement Ink

    Photo Black T800100
    Cyan T800200
    Vivid Magenta T800300
    Yellow T800400
    Light Cyan T800500
    Vivid Light Magenta T800600
    Dark Gray T800700
    Matte Black T800800
    Gray T800900
    Light Gray T800000

  • Fade Resistance / Print Longevity

    UltraChrome PRO, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints

Ink Supply System

Jump to...
  • Ink Supply Fill Volume

    Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
    Cartridge fill volume: 700 ml each x 10 colors total

  • Ink Shelf Life

    2 years from printed production date or 6 months after open

Printable Area and Accuracy

Jump to...
  • Maximum Paper Width

    44" (1117.60mm)

  • Minimum Cut-sheet Size

    8.5 x 11" (215.90 x 279.40mm)
    Minimum recommended cut-sheet: 13 x 19" (330.20 x 482.60mm)

  • Minimum Paper Width

    10" (254.00mm)

  • Maximum Printable Width

    44" (1117.60mm) in BorderFree print mode
    43.75" (1117.60mm) in standard print mode

  • Line Accuracy

    +/- 0.2% of specified length
    +/- .26mm minimum

  • Maximum Printable Length

    Cut-sheet: 80" (2032.00mm)
    Roll: 590.55" (15000.00mm)
    As allowed by the Epson MAC and PC printer driver. Application, version of application and Operating System version may limit maximum length.

Sheet Media Handling

Jump to...
  • Sheet Loading

    Top-loading if less than .5mm thick

  • Thickness

    0.8mm to 1.5mm (0.03" to 0.06")

  • Single Sheet, Top-loading

    Up to 44" (1117.60mm) wide

  • BorderFree Print Widths

    Left and right borderless "bleed" printing for the following roll media widths: 10", 11.8", 13", 16", 17", 20", 23", 24", 28.86", 29", 33.11", 36", 40.55", 44"

  • Left/Right Margins

    3mm (0.12") each side; 6mm (0.24") total

  • Top/Bottom Margins

    3mm / 15mm (0.12"/0.59")
    15mm / 15mm (with centering)

Printer Details

Jump to...
  • Printer Language

    Epson Professional Photographic Drivers standard; optional internal Adobe Postscript 3 print server1

  • Interfaces

    USB 2.0 (1 port)
    1000Base-T Ethernet (1 port)

  • Rated Voltage

    AC 110 - 240 V

  • Rated Frequency

    50 - 60 Hz

  • Power Consumption

    Printing: approx. 95 W
    Sleep Mode: approx. 2.8 W (1000 BaseT Ethernet in Standby Mode)
    Power Off: less than 0.5 W ENERGY STAR qualified

  • Rated Current

    5A

Operating Systems

Jump to...
  • Printer Driver

    Apple macOS 10.13.x-10.12.x, OS X: 10.11x-10.7x
    Microsoft Windows: 10, 8.1, 7 (32-bit, 64-bit)

Onyx RIPCenter Supported

Jump to...
  • Microsoft Windows

    10, 8.1, 7 Professional (64-bit)

  • RAM

    8GB minimum (4GB/ core recommended)
    1 dedicated USB port for security key

General

Jump to...
  • Temperature

    Operating: 50 to 95 deg. F (10 to 35 deg. C)
    Operating Recommended: 65 to 75 deg. F (18 to 24 deg. C)
    Storage: -4 to 104 deg. F (-20 to 40 deg. C)

  • Humidity

    Operating: 20 to 80% (no condensation)
    Operating Recommended: 40 to 60% (no condensation)
    Storage: 5 to 85% (no condensation)

  • Sound Level

    Sound Pressure Level: Less than 51.1 dB(A)
    Sound Power Level: approx. 65.3 dB(A)

  • Safety Approvals

    Safety Standards: UL605950-01, CAN/CSA C22.2 No. 60950-1 EMC FCC part 15 subpart B class A, CAN/CSA-CEI/IEC CISPR22 class A, AS/NZS CISPR 22 class A

  • Dimensions

    Basket Open: 74.0 x 38.6 x 45.1" (1879.60 x 980.44 x 1145.54mm)

  • Weight

    278 lbs (126.10kg)

About Epson SureColor P10000

The Art of Production

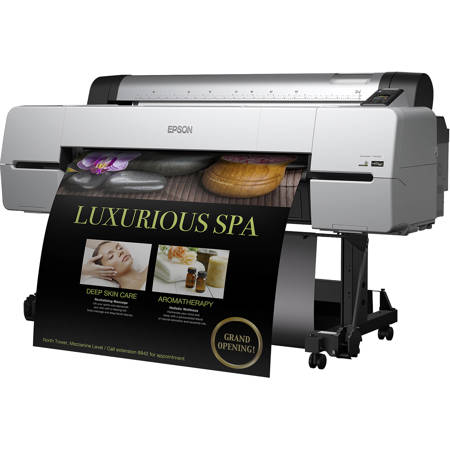

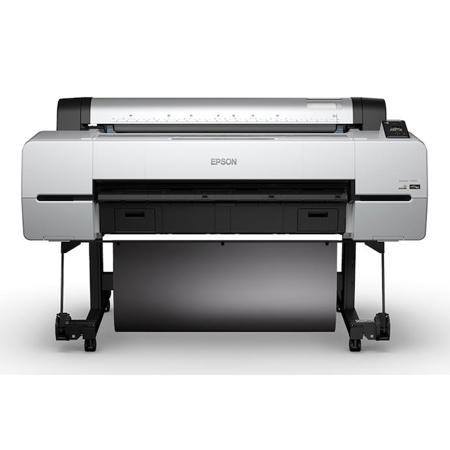

The new 44" Epson SureColor P10000 Production Edition printer is redefining the world of wide-format, high-production signage and graphics imaging. This innovative solution features breakthrough imaging technologies, including a high-performance 2.6" wide PrecisionCore MicroTFP printhead and Epson UltraChrome PRO 9-color pigment ink - complete with four levels of gray. This state-of-the-art printer includes ONYX RIPcenter workflow software, which incorporates an Adobe PostScript based engine and powerful color management tools. Plus, they support Epson's diverse media library with fine art, photographic and even third-party signage media options built in.

The art of performance
High-performance 9-color archival pigment for high-volume photographic printing environments.

Remarkable productivity

PrecisionCore MicroTFP printhead utilizing 8,000 nozzles, for print speeds up to twice as fast as our previous generation.

Industry-standard workflow software

ONYX RIPcenter software incorporates an Adobe PostScript engine to maximize workflow productivity; supports leading photo, fine art and signage media.

Low cost of operation
High-capacity 700 mL ink cartridges, along with more efficient ink usage, allows for a low cost per print.

Outstanding print quality
Epson UltraChrome PRO archival ink technology produces exceptional color prints that last up to 200 years, along with four levels of gray for accurate transitions with very low grain, even at the fastest print modes.

Superior workflow features
Standard gigabit Ethernet and Hi-Speed USB, along with an internal 320GB print server, allow for exceptional networking performance for multiple workstations, a built-in Web page for job and file management and job accounting capabilities.

UltraChrome PRO Inks

Next-generation pigment ink technology
Introducing all new pigments for outstanding color performance and Improved Resin Encapsulation Technology for superior gloss uniformity.

Improved black density
Photo Black pigment 1.5 times denser than the previous generation ink set, along with significant improvement to overall contrast ratio and optical clarity.

Significant print permanence improvements
Featuring completely reformulated pigment technology for improved print permanence and up to twice the overall print permanence versus our previous generation ink set.

Extreme color balance
4 levels of black, featuring an all-new dark gray for rendering superb gray balance through the entire tonal range of B&W and color prints at any production speed.

PrecisionCore microTFP Printhead

Design for production
2.6 inch tall printhead with 800 nozzles per color, 8000 high performance nozzles in all.

Robust engineering
Single head configuration designed for maximum quality and reliability in demanding high-speed environments.

Epson PrecisionDot
Delivers best-in-class continuous tone image quality at production level print speeds

Printer Applications

Ultra-fast drafts
Print at up to 1,135 sq ft/hour (1-pass) on plain paper when speed is the critical factor.

High-speed poster printing
For high-speed production on various coated media types, the 381 sq ft/hour (4-pass) and 251 sq ft/hr (6-pass) modes provide highly sellable output.

Indoor display graphics
The 273 sq ft/hour mode (6-pass) on semigloss or glossy media provides eye-catching photographic quality even up close.

On-demand photo & fine art
Start with 194 sq ft/hour (8-pass) or move up in quality to 96 sq ft/hour (16-pass) for best-in class fine art production printing. Perfect for use with Epson Signature Worthy Canvas, Fine Art and Photo media.

Exhibition quality prints
Combine maximum quality 63 sq ft/hour (24-pass) with the highest quality Epson Legacy photo media for prints worthy of the world's most exclusive galleries and exhibitions.

What's in the box:

  • Epson SureColor P10000 44" Wireless Production Edition Inkjet Printer
  • Onyx RIPCenter Workflow Software
  • Printer Stand with Catch Basket
  • Spindle-Free Roll Media Adapters
  • T800100 Photo Black 110 ml Ink Cartridge
  • T800200 Cyan 110 ml Ink Cartridge
  • T800300 Vivid Magenta 110 ml Ink Cartridge
  • T800400 Yellow 110 ml Ink Cartridge
  • T800500 Light Cyan 110 ml Ink Cartridge
  • T800600 Vivid Light Magenta 110 ml Ink Cartridge
  • (See More in Spec for Item Includes)
