Epson SureColor T3470 Specifications

Print
  • Printing Technology

    PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

  • Minimum Ink Droplet Size

    4 picoliters; Variable Droplet Technology can produce up to three different sizes per line

  • Maximum Print Resolution

    2400 x 1200 dpi

  • Print Speed

    A1/D-sized print: 25 seconds

  • Nozzle Configuration

    Color and monochrome heads; 800 nozzles x 4 channels

  • Display

    4.3" Touchscreen

  • Printer Language

    Epson ESC/P Raster, HP-GL/2, HP RTL

  • Interfaces

    SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n), Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct

  • Ink Type

    UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

  • Replacement Ink

    Ink Cartridge (110 ml):
    Cyan T41W220
    Magenta T41W320
    Yellow T41W420
    Black T41W520

    Ink Cartridge (350 ml):
    Cyan T41P220
    Magenta T41P320
    Yellow T41P420
    Black T41P520

Printable Area and Accuracy

Jump to...
  • Maximum Paper Width

    24"

  • Minimum Cut-sheet Size

    8.27 x 11"

  • Minimum Paper Width

    Roll: 10"/Sheet: 8.27"

  • Maximum Printable Length

    Limited by application, OS and driver/RIP used

Sheet Media Handling

Jump to...
  • Single Sheet, Top-loading

    Up to 24" wide

  • Left/Right Margins

    0 to 3 mm each (0.24" total)

Roll Media Handling

Jump to...
  • Single Roll-to-Roll / Top-loading Roll

    Up to 24" wide

  • Media Core

    2" or 3" User-adjustable roll media adapters

  • Maximum Roll Diameter

    Up to 6.6" (16.76cm)

  • Media Thickness

    Up to 11.8 mil

  • Roll Cutting

    High-speed internal rotary cutter; auto or manual

  • Roll Paper Remaining

    The amount of remaining paper can be controlled from the control panel

  • BorderFree Print Widths

    10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0"

  • Rated Voltage

    AC 110-240V

  • Rated Frequency

    50-60 Hz

  • Power Consumption

    Printing: Approx. 34W
    Ready: Approx. 13W
    Sleep: Approx. 1.3W
    Power Off (Stand By): 0.25W

  • Rated Current

    2.8A

Epson Intelligent Ink Cartridges

Jump to...
  • Cartridge Fill Volume

    C, M, Y, K: 110 mL

  • Retail Cartridge Fill Volume

    C, M, Y, K: 110 or 350 mL

  • Ink Cartridge Shelf Life

    2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink

General

Jump to...
  • Operating Systems

    macOS 10.13.x, Mac OS X 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows 10, 8.1, 7 (32-bit, 64-bit), Windows Vista and Windows XP

  • Temperature

    Operating: 50 to 95 deg. F (10 to 35 deg. C)
    Operating (Recommended): 65 to 75 deg. F (18 to 24 deg. C)
    Storage: -4 to 104 deg. F (-20 to 40 deg. C)

  • Humidity

    Operating: 20-80% (no condensation)
    Operating (Recommended): 45-60% (no condensation)
    Storage: 5-85% (no condensation)

  • Sound Level

    Operating: Approx. 50 dB(A)
    Sleep: Approx. 32 dB(A)

  • Safety Approvals

    UL (MET), FCC (Class A), CSA, CE, EMC

  • Dimensions

    With Stand: 43 x 30 x 42" (109.22 x 76.20 x 106.68cm)

  • Weight

    With Stand: 141 lbs (63.96kg)

  • UPC Code

    010343945432

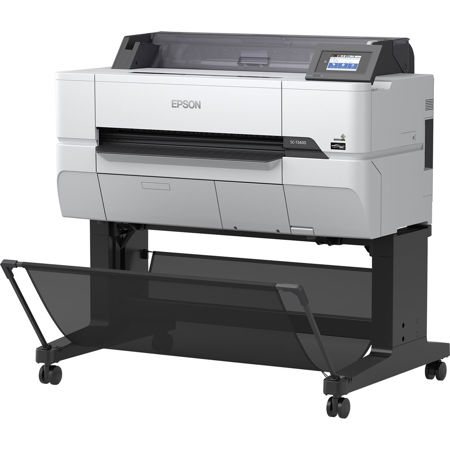

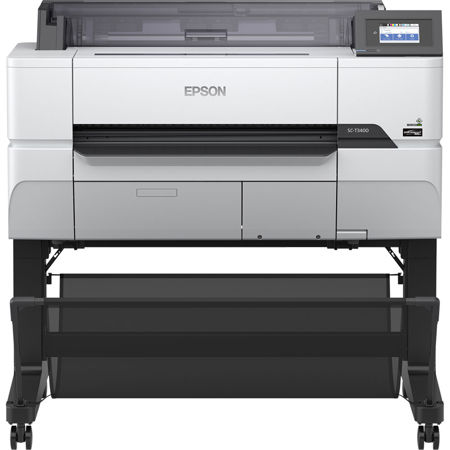

About Epson SureColor T3470

Productive and easy-to-use 24" workgroup inkjet printer
Rethink workgroup productivity with the 24" SureColor T3470 wide-format wireless printer, offering powerful, precise printing within a compact, robust design. Ideal for high-production printing of blueprints, line drawings and posters up to 24", it delivers accurate, A1/D-size prints in as fast as 25 seconds. Featuring a 4.3" color touchscreen, this easy-to-use printer also offers advanced network security and encryption designed to safeguard sensitive information. Its high-capacity UltraChrome XD2 pigment inks ensure durable, vibrant prints. Plus, Epson's breakthrough PrecisionCore MicroTFP printhead achieves outstanding clarity and commercial-grade reliability.

Powerful Workgroup Printing
Produce accurate A1/D-size prints in 25 seconds.

Easy to Use
Large, intuitive 4.3" LCD color touchscreen simplifies print tasks.

Replace Ink Less Often
High-capacity replacement ink cartridges up to 350 mL for less downtime.

Integrated Security
Protect important information with advanced network security and encryption features.

Outstanding Image Quality
Next-generation PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding photographic images, precise lines and crisp text.

Print from Virtually Anywhere in the Office
Easily print from tablets, smartphones and more with integrated wireless plus router-free Wi-Fi Direct printing.

Eco Features
• RoHS compliant
• ENERGY STAR qualified

Epson SureColor T3470 Features

  • Commercial-Grade Reliability - features a permanent printhead with advanced Nozzle Verification Technology, plus world-class service and support, including a 1-year limited warranty
  • Durable, Vibrant Prints - next-generation UltraChrome XD2 archival pigment ink technology
  • Convenient PC-free Printing - print blueprints, drawings, charts and posters directly from a USB thumb drive
  • Compact, Robust Design - maximize office space and productivity

What's in the box:

  • Epson SureColor T3470 24" Color Large Format Inkjet Printer
  • Cyan Ink Cartridge (110 ml)
  • Magenta Ink Cartridge (110 ml)
  • Yellow Ink Cartridge (110 ml)
  • Black Ink Cartridge (110 ml)
  • Start Here Poster
  • User Guide
  • AC Power Cable
  • Epson 1 Year Limited Warranty
