PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
2400 x 1200 dpi
A1/D-sized print: 31 seconds1
Smallest Droplet Size: 4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Black: 800 nozzles (800 nozzles x 1 channels)
Color: 2400 nozzles (800 nozzles x 3 channels)
UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)
Colors (C,M,Y) 26 mL
Black (K) 50 mL
Colors (C,M,Y): 26 or 50 mL
Black (K): 50 or 80 mL
2 years from printed production date or 6 months after opened
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
36"
8.27 x 11" (1 sheet and ASF)
Roll: 13"
Sheet: 8.27"
+/-0.1% or +/-0.26 mm
Up to 59'
10.2 mil
Up to 36" wide
Minimum 3 mm each
36" wide
2" Core Diameter: User-adjustable roll media adapters
Up to 4.6"
6.6 lbs
Up to 8.2 mil
High-speed internal rotary cutter; auto or manual
The amount of remaining paper can be controlled from the control panel
4.3" Touchscreen
ESC/P raster
HP-GL/2, HP RTL
SuperSpeed USB, Wired Ethernet 100BASE-TX /1000BASE-T, Wireless LAN IEEE802.11 b/g/n, USB memory stick, Wi-Fi Direct
CIS Sensor (Sheetfed)
Up to 600 dpi, reprint 2400 x 2100 dpi
Scan to Network Folder, FTP Server, Secure FTP Server, Mail Server, Secure Mail Server, USB Memory Stick (Bit Depth)
Width: Up to 36"
Length: Up to 8.9'
Up to 1.5 ips (Color)
Up to 4.5 ips (Monochrome)
1.4A
Operating: Approx. 26 W
Ready: Approx. 12 W
Sleep: Approx. 2.0 W
Power Off (Stand By): 0.2 W
Voltage: AC 110-240 V
Frequency: 50-60 Hz
Current: 1.4 A
Mac OS X (10.6.8 or later)
Windows 10, 8.1, 7 (32-bit, 64-bit)
Storage: -4 Degree to 104 Degree F (-20 Degree to 40 Degree C)
Operating: 20-80% (no condensation)
Operating (Recommended): 45-60% (no condensation)
Storage: 5-85% (no condensation)
Operating: 50 Degree to 95 Degree F (10 Degree to 35 Degree C)
Operating (Recommended): 59 Degree to 77 Degree F (15 Degree to 25 Degree C)
IEEE802.1x, SNMP 3, TLS/SSL, SMTPs, POPs, FTPs, IPsec, Administrator Mode, WPA3
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Indonesia
Maximum Copies: Up to 99
Reduction/Enlargement: 25% to 400%
Auto Sheet Feeder: Up to 11" x 17"
Sheet Feeder Capacity: 50 pages
Memory: 1GB (Printer) + 8GB (Scanner)
Acoustic Noise Level
Operating: Approx. 49 dB(A)
Sleep: Approx. 32 dB(A)
Media Type: Plain Paper, Recycled Paper, Coated Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Carrier Sheet
Supported File Formats: JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF
50 x 24 x 39" (127 x 60.96 x 99.06cm)
122 lbs (56kg)
010343963115

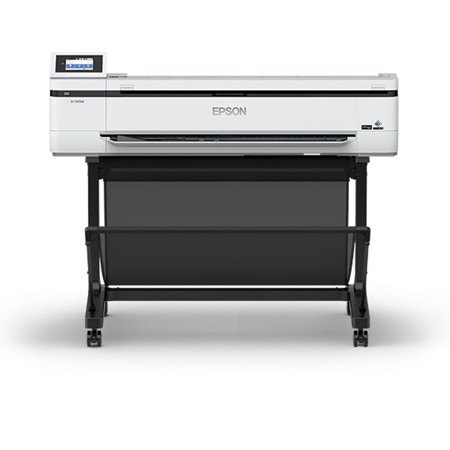

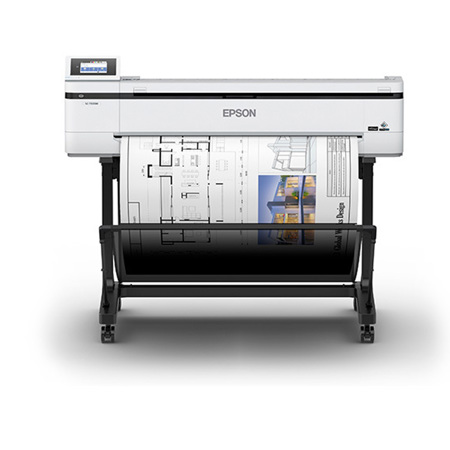

Where professional quality meets advanced technology, the SureColor T5170M 36" Wireless Large Format Inkjet Printer stands out. This high-performance printer, scanner, and copier is specifically designed for CAD, Architecture, Engineering, and Corporate Graphics, making it an indispensable tool in any professional setting.
The SureColor T5170M is not just a printer; it's a comprehensive solution for all your large format printing needs. It boasts a 36" wide printing capability, coupled with an integrated scanner, all housed in a sleek, ultra-compact design that is up to 15% smaller than its competitors. This compact size doesn't compromise on performance, delivering A1/D-size prints in as fast as 31 seconds.
This advanced printer supports a wide variety of media, including rolls and sheets, providing you with the versatility to handle any project. Its wireless and Wi-Fi Direct connectivity options make it easy to print from virtually anywhere in your home or office using a smart device.
From blueprints and technical documents to renderings and graphics, the SureColor T5170M consistently delivers high-quality, durable, and precise prints. This is made possible by the Epson PrecisionCore MicroTFP printhead technology and archival-quality, all-pigment-based UltraChrome XD2 inks.
The SureColor T5170M is more than just a printer; it's a compact desktop printing solution that offers affordability and ease-of-use. With the Epson UltraChrome XD2 ink, you can expect vibrant, long-lasting prints every time.
Explore the SureColor T-Series printer comparison guide to understand why the T5170M is the ideal printer for your needs. With the SureColor T-Series printers, you're not just getting a printer; you're investing in a fast, precise, and reliable printing solution that is trusted by creative professionals from architects and engineers to graphic artists and product designers.
