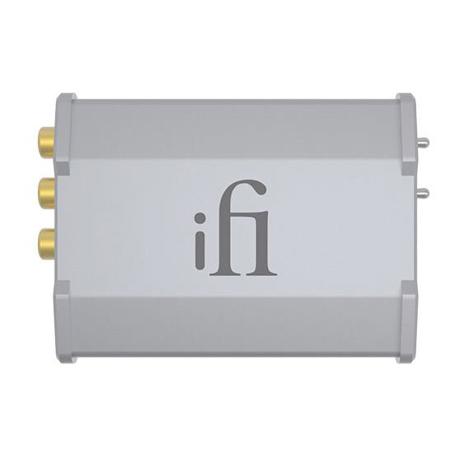

iFi AUDIO Nano iOne Bluetooth/USB/S/PDIF True Native DAC

SKU: IFINANOIONE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

iFi AUDIO Nano iOne Specifications

  • Power Source

    USB Bus power, embedded AMR Active Noise Cancellation technology

  • Formats

    44.1/48/88.2/96/176.4/192kHz PCM
    2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
    352/384kHz DXD

  • DAC System

    Bit-Perfect DSD & DXD DAC by Burr Brown
    (1-DAC Chip; 2-Channel; 4-Signals)

  • Filter

    PCM: Measure/Listen digital (selectable)
    DSD: Measure/Listen analogue (selectable)
    DXD: Bit-Perfect Processing, fixed filter

  • Input

    USB 3.0 compatible with USB 2.0, Bluetooth with aptX & AAC support Codec, S/PDIF RCA & Optical Combo

  • Output

    Coaxial S/PDIF for USB/Bluetooth (PCM up to192kHz)
    Audio RCA L/R

  • Frequency Response

    20Hz - 20kHz <+0/-0.5dB (44.1kHz SR, Measure Filter) 1Hz - 44khz <+0/-3.0dB (>= 88.2kHz SR, Measure Filter)

  • Output Voltage

    2.05V (+/-0.05V) at 0dBFS

  • Dynamic Range

    109dB (A)

  • Signal/Noise ratio

    109dB (A) at 0dBFS

  • THD & N

    < 0.0015% 10k Load at 0dBFS

  • Output Impedance

    < 50Ohms

  • Power Consumption

    < 2.5W

  • Dimensions (LxWxH)

    106 x 67 x 28mm (4.17 x 2.64 x 1.10")

  • Weight

    141g (4.97 oz)

  • UPC Code

    5081313081707

About iFi AUDIO Nano iOne

At iFi we believe that high quality sound is a way of life. The nano iOne was created for both audiophiles and those who yearn for better sound quality from their existing home systems. Whether you use NVIDIA Shield, Google Chromecast or a 4K television, hook your system up to a gaming console such as the XBox One, Playstation 4 or simple enjoy music through your smartphone, tablet or computer, the iOne is the one for you. Add it to your audiophile rig to push the boundaries of high-quality sound to a whole new level.

• Bluetooth / USB / S/PDIF True Native DAC
• Galvanic isolation technology on S/PDIF
• Active Noise Cancellation
• Hi-Res certified
• Burr-Brown Multibit True Native chipset
• FET high-def input with reclocking/line driver
• Noise suppression system for quiet power supply
• DSD256/PCM384 capable

It is ideal for

• Home systems - add Bluetooth to stream Spotify via computer, phone or tablet
• 4K televisions - improve sound quality to match picture quality
• Gaming consoles - elevate movie soundtracks and gaming effects to the max by connecting the optical output to the iONE then the analogue outputs to active desktop speakers or headphone amplifier
• S/PDIF only DACs - use USB/Bluetooth input to convert to S/PDIF output

The iOne is neither a one-trick pony nor is it a jack-of-all-trades. It is simply incredibly versatile and offers cutting-edge technology, with each separate function designed and implemented with as much care and dedication as they would receive in a single function device from iFi Audio.

Your sound. Your way
At the output, you can connect the RCAs to an a/V amplifier or headphone amplifier. However you prefer to connect your system, the iOne has it covered, whether its via Bluetooth, USB or S/PDIF (optical/coaxial). Plus the audiophile quality Bluetooth implementation in the iOne allows both aptX and AAC decoding so you can listen via Apple or Android, PC or Mac.

CD-like quality Bluetooth with aptX and AAC encoding
CD-like quality on Bluetooth across all platforms - using aptX or AAC encoding. aptX is for Windows, Mac and Android devices. AAC is for iOS devices. Everyone is able to enjoy the highest quality wireless playback.

Galvanically-isolated S/PDIF output with REclock/REgenerate
We have even added galvanic isolation for the S/PDIF so you know that the fastidious iFi attention to sound quality remains.

Burr-Brown True Native chipset
The Burr-Brown True Native chipset is a MultiBit DAC which represents the 'best of the best' chipset design. This chipset handles PCM and DSD natively, so the music signal stays in its original format all the way through.

Global Master Timing. Femto precision clock system
The Global Master Timing system as found in the AMR DP-777 will completely block jitter from the source by creating a new stable clock de-linked from the source clock. The GMT ensures the iONE will stay in lock step.

Active Noise Cancellation. Exceptionally quiet power
ANC noise suppression system for the power supply (conveniently drawn from USB) means a measured noise floor that 100x to quieter than the Common Noise Filter.

What's in the box:

  • iFi Nano iOne Bluetooth/USB/S/PDIF True Native DAC
  • iFi 1 Year Warranty
