Review Summary
40x
1.25x, 1.5x, 1.75x, 2x
20mm - 800mm
1:4 (20mm), 1:7.4 (800mm)
From the front lens:
10m (20 - 400mm in focal length)
20m (401 - 800mm in focal length)
20mm: 21.0 Degree x 11.8 Degree
800mm: 0.55 Degree x 0.31 Degree
1/1.8"
Full HD (1920x1080)
Color: 0.00015lux (at F1.2) / 0.0017lux (at F4.0)
B/W: 0.0001ux (at F1.2) / 0.0011lux (at F4.0)
Continuous AF, Quick AF, Manual
Auto, Manual (Aperture range : F4 - F16)
Auto (with minimum speed selection of 1/8 - 1/125s), Manual (1 - 1/32,000s)
Manual, AGC, HYPER-AGC
(Setting range: ISO400 - 819200)
Visible Light Cut filter (ON / OFF)
Auto, Manual
950nm, 940nm, 850nm, 808nm, Visible light
Auto, OIS, EIS, OFF
Selectable (2 levels)
Selectable (2 levels)
Selectable (3 levels)
Selectable (3 levels)
Selectable (3 levels)
Selectable (100 levels)
Selectable (100 levels)
Selectable (100 levels)
Selectable (100 levels)
AWB, AWB-W, Custom 1 - 2, Fine, Shade, Color Temperature (3000K, 5000K, 9000K)
NTSC, PAL
NTSC, PAL
NTSC: 1080p, 720p, 480p/PAL: 1080p, 720p, 576p
Ethernet(10Base -T, 100Base-TX, RJ45 connector), RS-485 (Half duplex), External trigger (Day / Night)
File recording format : MOV
Compression format : H.264 compliant
Pelco-D / Pelco-P
(including extended commands)
DC12V
9.5W
(SDHC/SDXC)
UHS-1-compatible 8GB+
SD Speed Class 10 or above
ICMP, ARP, TCP¼IP, UDP¼IP, HTTP, RTSP, RTP, DHCP, DNS, RTP/RTCP, SNTP
Windows 10
Google Chrome 71+
Yes (Profile S)
1
M112 x 1mm
Temperature : 14 - 122 Degree F (-10 - +50 Degree C)
Humidity : 10% - 80% (no condensation)
45 degrees upward - 45 degrees downward
5.47 x 6.14 x 16.14" (139 x 156 x 410mm)
14.10 lbs (6.4kg)
Models | SKU: IFJSX800 MFR: SX800 Special Order Generally ships in 7-14 days, subject to availability | SKU: IFJSX1600 MFR: SX1600 $37,500.00 Pre Order Now You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship. | SKU: PESRXP48V9 MFR: SRXP4-8V9-EBT-IR $801.45 Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. |
---|---|---|---|
Special Features | Day & Night Security, Network/IP, Storage Card Port | Day & Night Security, Network/IP, Storage Card Port | Day & Night Security, Network/IP, Outdoor & Night Vision |
Resolution | FHD (1920x1080) | FHD (1920x1080) | 4K UHD (3840x2160) |
Kit Style | Base | Base | Base |
Storage Capacity | NA | NA | NA |
Sensor Type | CMOS | CMOS | CMOS |
Chassis Type | Box/Bullet | Box/Bullet | Box/Bullet |

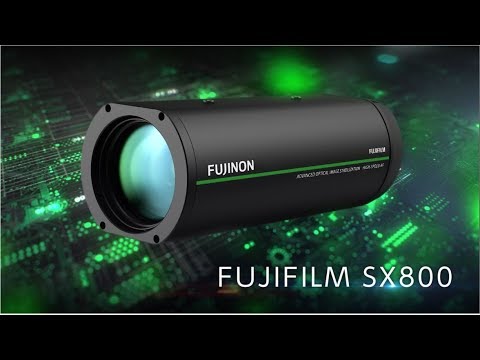

The FUJINON SX800 Long Range Multi-Purpose Camera represents the pinnacle of Fujifilm's advanced lens manufacturing and cutting-edge image processing technologies. This sophisticated camera is designed to meet the demanding needs of professional security and surveillance, with a versatile 20-800mm lens that delivers unparalleled long-range capabilities.
Engineered for a wide array of applications, the SX800 excels in border and port surveillance, construction site monitoring, and the surveillance of other critical infrastructure such as airports and maritime facilities. Its high-tech features enable the capture of clear images from a distance, even when targeting small and fast-moving objects like drones, thanks to its ultra-high-speed autofocus (AF) system.
In the realm of disaster management, the SX800's state-of-the-art telephoto performance is invaluable for quickly confirming and monitoring events such as forest fires, floods, and volcanic eruptions from a safe and remote location, potentially saving lives by providing timely information.
The camera's innovative design also facilitates the inspection of wind turbines and transmission lines, offering high operational accuracy that enhances visual inspections, reduces manual labor, and improves employee safety.
Beyond its utilitarian functions, the SX800's long-range capabilities open up new possibilities for creative expression in entertainment fields, including long-range photography, astronomical observation, and capturing sports and scenic views that are beyond the reach of conventional cameras.
Drawing on over half a century of excellence in lens technology, the SX800 incorporates FUJINON lenses, recognized with an Emmy Award for Technology, to produce ultra-high-definition images with super-telephoto range. The meticulous mechanical design and assembly ensure that multiple lens groups are precisely arranged within the housing, resulting in images of the highest clarity and detail.
The camera's superior imaging and processing technology, inherited from Fujifilm's renowned X Series digital cameras, ensures that the SX800 delivers clear images in diverse environments. Challenges such as vibration at high altitudes and atmospheric conditions like heat haze or fog are effectively corrected in real-time using the most advanced correction algorithms and a high-speed processing engine.
Key features of the SX800 include:
- Super Telephoto Range: With focal lengths ranging from 20mm wide-angle to 800mm telephoto, and up to 1600mm with digital zoom, the SX800 can be tailored to various surveillance needs while maintaining precise target capture even at extreme distances.
- High-Performance Electronic Image Stabilization (EIS): The large sensor and effective lens diameter ensure full HD resolution (1920 x 1080), delivering premium quality footage, further enhanced by the durability of the combined Optical Image Stabilization (OIS) system.
- Low-Light Shooting: The high-sensitivity sensor paired with advanced noise reduction technology enables the capture of clear, low-noise images in challenging light conditions.
- High-Speed Autofocus: The rear focus system drives the small-diameter lens at high speed, achieving autofocus in about 0.1 seconds, with automatic switching between image plane phase detection AF and contrast AF for optimal focus.
- Fog Reduction: Image processing technology compensates for atmospheric conditions such as heat haze, fog, and dust, ensuring clearer images even in the most challenging environments.
The FUJINON SX800 Long Range Multi-Purpose Camera with its 20-800mm lens is the epitome of innovation, designed for professionals who demand the best in long-range surveillance and high-resolution imaging.
