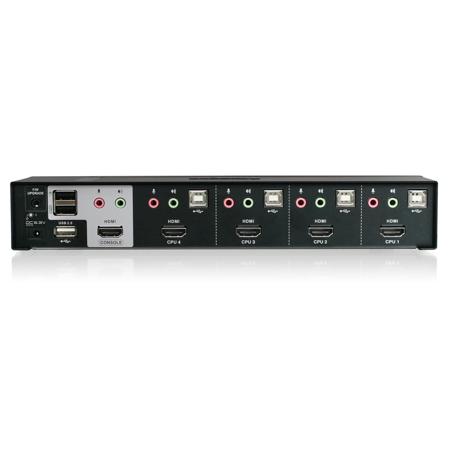

IOGEAR 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle

SKU: IGCS1794DPK MFR: GCS1794DPKIT
Earn VIP Reward Points

Key Features

  • Manage 4 HDMI computers with ease using this IOGEAR 4-Port HDMI KVMP Switch bundle.
  • Enjoy high-definition video at 1080p with this HDMI KVM switch and DisplayPort adapters.
  • Control multiple computers using one keyboard, mouse, and monitor with KVM technology.
  • This 4-Port KVM switch supports Windows, Mac, Sun Solaris, and Linux operating systems.
  • Quickly switch between computers via hotkeys or the front-panel switch button, improving workflow.
  • Includes HDMI KVM cables and DisplayPort adapters for a simple and complete setup.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

IOGEAR 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle Specifications

  • Max Computer Connections

    4

  • Port Selection

    Hotkeys or front-panel switch button

  • Console Connectors

    1x HDMI female
    1x USB Type-A female (keyboard)
    1x USB Type-A female (mouse)
    2x 3.5 mm stereo female (green, audio)
    2x 3.5 mm stereo microphone female (pink, microphone)
    1x 4-conductor 3.5 mm (black, flash ROM upgrade)

  • PC Connectors

    4x HDMI (two DisplayPort with adapters)
    4x USB Type-B female
    4 x 3.5 mm stereo female (green, audio)
    4x 3.5 mm stereo female (pink, microphone)

  • Additional Ports

    2x USB 2.0 Type-A female (one front and one rear)

  • Adapter Specifications

    DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps
    DisplayPort link tracking
    Compliant with DVI 1.0 up to 1.65 Gbps
    Supports Deep Sleep mode

  • LEDs

    4x USB peripherals (green)
    4x On line (orange)

  • Emulation

    USB keyboard and mouse

  • Video Resolution

    1920x1200 (1080p)

  • Scan Interval

    1 to 99 seconds

  • Power

    5.3V, 2.4A

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Humidity (Non-Condensing)

    0 to 80%

  • Supported Operating Systems

    Windows, Mac, Sun Solaris, and Linux

  • Dimensions (WxHxD)

    10.3 x 1.6 x 3" (26.16 x 4.06 x 7.62cm)

  • Weight

    1.9 lbs (0.86kg)

  • UPC Code

    881317515148

About IOGEAR 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle

From managing multiple devices to optimizing your workspace, the 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle is a versatile solution for home offices and small to medium-sized businesses. This innovative product from IOGEAR allows seamless control over four HDMI or DisplayPort computers using a single USB keyboard, USB mouse, and a high-definition display or HDTV.

This bundle is designed to offer flexibility, allowing you to choose between HD and DisplayPort connections. It includes two DisplayPort to HDMI adapters, enabling you to display content from DisplayPort-enabled devices on a large external HDMI display or HDMI projector.

The 4-Port HDMI/DisplayPort KVM Switch is a cost-effective, plug-and-play solution that allows you to switch between four computers at the push of a button. It supports a wide range of video resolutions, from 480i to 1080p, with a maximum video resolution of 1920 x 1200.

The built-in USB 2.0 hub allows you to share peripherals between the connected computers, while the Dolby True HD and DTS HD Master Audio Support ensure high-quality sound. The switch is compatible with multiple operating systems, including Windows, Mac, Sun Solaris, and Linux, and is HDCP compliant.

IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID), ensuring there's no delay or change in video resolution when switching between or booting computers. The switch also features power-on detection, automatically switching to the next powered-on computer if one is powered off.

The bundle also includes DisplayPort to HD Adapters that convert your DisplayPort to HDMI, allowing you to connect to your HDMI projector, TV, or monitor. These adapters are compliant with DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps, and support full DisplayPort link tracking.

Whether you're into desktop publishing, graphic design, video editing, digital home entertainment, or high-end gaming, this HDMI KVMP switch can enhance efficiency and save on equipment costs. Its expanded connectivity features, including two USB 2.0 peripheral ports for asynchronously sharing USB devices, make it a must-have for any tech-savvy professional or enthusiast.

The 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle offers a simple, plug-and-play solution, including all the necessary cabling for a quick and easy setup. With IOGEAR's Mini DisplayPort to HDMI adapter's audio pass-through feature, you won't need additional cabling to get audio signals from your Mini DisplayPort device to your HDTV or projector.

IOGEAR 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle Features

  • High-performance 4-Port HDMI KVMP Switch for seamless control over multiple devices
  • Versatile connectivity with both HDMI and DisplayPort options, ideal for multi-device environments
  • Includes two DisplayPort to HDMI adapters for increased flexibility and convenience
  • Supports a wide range of video resolutions up to 1920 x 1200 for high-definition viewing
  • Built-in USB 2.0 hub for sharing peripherals between connected computers
  • Features IOGEAR's DynaSync technology that remembers monitor's parameters for smooth switching between devices

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage 4 HDMI computers with ease using this IOGEAR 4-Port HDMI KVMP Switch bundle.
  • Enjoy high-definition video at 1080p with this HDMI KVM switch and DisplayPort adapters.
  • Control multiple computers using one keyboard, mouse, and monitor with KVM technology.
  • This 4-Port KVM switch supports Windows, Mac, Sun Solaris, and Linux operating systems.
  • Quickly switch between computers via hotkeys or the front-panel switch button, improving workflow.
  • Includes HDMI KVM cables and DisplayPort adapters for a simple and complete setup.

What's in the box:

  • IOGEAR GCS1794 4-Port HD KVMP Switch
  • 2x DisplayPort to HDMI Adapters
  • 4x HDMI KVM Cables
  • Firmware Upgrade Cable
  • Power Adapter
  • Installation Guide
  • IOGEAR 3 Year Limited Warranty
