IOGEAR 4-port DualView Mini DisplayPort KVMP Switch with Peripheral Sharing, Multi-Platform OS Support

SKU: IGCS1924

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

IOGEAR GCS1924 Specifications

  • Connections

    4

  • Port Selection

    Hotkeys or TouchPanel

  • Console Connectors

    Monitor: 2x mini DisplayPort
    Keyboard: 1x USB type A female
    Mouse: 1x USB type A female
    Audio: 1x mini stereo jack female (green)
    Microphone: 1x mini stereo jack female (pink)

  • CPU Connectors

    Monitor: 8x mini DisplayPort
    Keyboard: 4x USB type B female
    Mouse: 4x USB type B female
    Audio: 4x mini stereo jack female (green)
    Microphone: 4x mini stereo jack female (pink)

  • Video Resolution

    Single Link: 1920 x 1200
    Dual Link: 2560 x 1600
    Special Monitors: 3840 x 2400

  • OS Supported

    Multi-platform OS support including Windows, Mac and Linux

  • System Requirements

    Console:
    2x displays with mini DisplayPort inputs
    Keyboard and mouse
    Computer:
    Computers with mini DisplayPort - enable graphic card
    An open USB port

  • Dimensions (H x D x L)

    1.70 x 7.80 x 7.80" (4.31 x 19.81 x 19.81cm)

  • Weight

    1.3lbs (0.58kg)

  • UPC Code

    881317509338

About IOGEAR GCS1924

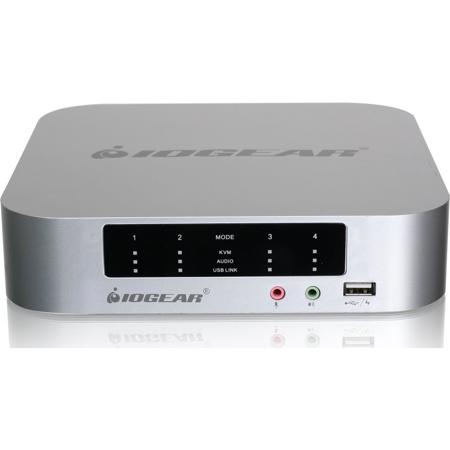

The Iogear 4-port DualView Mini DisplayPort KVMP Switch with Peripheral Sharing allows you to access four computers from a single USB keyboard, USB mouse and dual view mini DisplayPort console monitors. It provides you a combination of 4 port Mini DisplayPort dual view switch and a 2 port USB 2.0 hub. The built-in USB 2.0 hub enables each computer to access connected peripherals on a one-computer-at-a-time basis. The switch's independent switching feature allows the KVM focus on one computer while the USB peripheral focus on another. This eliminates the need to purchase a separate USB hub as well as a separate stand-alone peripheral sharing switch.

The 4 Port KVMP Switch further improves on previous KVM designs with the latest mini DisplayPort and mini TOSLINK connectors. It provides the capability of digital audio and video to the computers with ultra high resolution of up to 3840 x 2400 or a 3D display with 1920 x 1080 resolution at 120 Hz. It also provides vivid picture quality as well as surround sound SPDIF connection. Additionally, the switch is designed with the same size as the new Mac Mini, so you can stack four Mac Minis directly on top of this switch thus saving desk space.

IOGEAR GCS1924 Features

  • Share 2 Mini DisplayPort monitors, a keyboard, mouse and speakers between 4 Mini DisplayPort computers with dual monitor support
  • Video resolutions: Single Link 1920x1200, Dual-Link 2560x1600
  • Supports special monitors with 3840x2400
  • 2 USB 2.0 ports for peripheral sharing
  • Audio Support for digital and analog: Mini TOSLINK is a high Definition digital audio signals, 3.5mm audio jack supports 2.1 stereo with full bass response
  • Multiplatform OS support - Windows, Mac and Linux
  • Port switching made easy with front-panel touch pad, hotkeys or USB mouse
  • Asynchronous hotkey switching between KVM focus, USB peripheral and audio ports
  • Mini DisplayPort 1.1a & HDCP compatible
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Front USB port designed for charging smart phones and smart tablets

Key Features

  • Share 2 Mini DisplayPort monitors, a keyboard, mouse & speakers between 4 Mini DisplayPort computers
  • Video resolutions
  • Supports special monitors with 3840x2400
  • 2 USB 2.0 ports for peripheral sharing
  • Audio Support for digital & analog
  • Multiplatform OS support

What's in the box:

  • IOGEAR 4-port DualView Mini DisplayPort KVMP Switch with Peripheral Sharing
  • 8 x Mini DisplayPort 1.1a Cable
  • 4 x Custom Cable Sets 1.8m (USB2.0 x 1 & 3.5mm audio Jack x 2)
  • User Manual
  • Power Adapter
  • Quick Start Guide
  • IOGEAR 3 Year Warranty
