IOGEAR 4-Port DVI KVMP Switch, Wireless Keyboard/Mouse
See all Iogear items

IOGEAR 4-Port DVI KVMP Switch with Cables, Wireless Keyboard and Mouse Combo

SKU: IGGCS1104KM1

This item is no longer available.

Recommended Alternatives

Iogear GCS1716KIT: Picture 1 regular

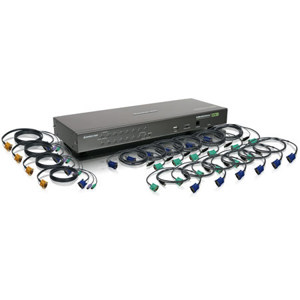

IOGEAR GCS1716KIT 16-Port USB PS/2 Combo KVM Switch
$729.95$594.99
Iogear : Picture 1 regular

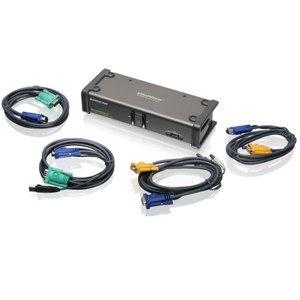

IOGEAR 2-Port Dual View KVM Switch with Cables
$199.95
Iogear : Picture 1 regular
IOGEAR 2-Port MiniView Micro USB PLUS KVM Switch
$54.95$48.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR 4-Port DVI KVMP Switch, Wireless Keyboard/Mouse Specifications

  • Computer Connections: Direct

    2

  • Port Selection

    Front Panel Pushbutton; Hotkey

  • Power

    1 x DC Jack

  • USB

    2 x USB 2.0 Type A Female

  • Console Connectors: Monitor

    1 x DVI-I Female

  • Console Connectors: Keyboard

    1 x USB Type A Female

  • Console Connectors: Mouse

    1 x USB Type A Female

  • Console Connectors: Audio

    1 x 3.5mm Mini Stereo Jack (Green)

  • Console Connectors: Microphone

    1 x 3.5mm Mini Stereo Jack (Pink)

  • CPU Connectors: Monitor

    2 x DVI-I Female

  • CPU Connectors: Keyboard & Mouse

    2 x USB Type B Female

  • CPU Connectors: Audio

    2 x 3.5mm Mini Stereo Jack (Green)

  • CPU Connectors: Microphone

    2 x 3.5mm Mini Stereo Jack (Green)

  • Switch Port Selection

    2 x Pushbutton

  • On Line

    2 (Orange)

  • USB Peripherals

    2 (Green)

  • Emulation: Keyboard

    USB

  • Emulation: Mouse

    USB

  • Video Resolution

    Up to 1920x1200@60Hz;DDC2B

  • System Requirements

    DVI Monitor
    USB Keyboard and Mouse
    Speakers and Microphone (optional)
    Computer:
    DVI Port
    Type A USB Port
    Audio ports (optional)
    Windows XP, Vista, or 7 (32- or 64-bit); Mac OS X or Greater; Sun Solaris; Linux; UNIX; or other USB supported system

  • Scan Interval

    1-99 Seconds (Default at 5 Seconds)

  • Voltage

    DC 5.3V

  • Amps

    2.4A

  • Operation Temperature

    0-50Deg.C

  • Storage Temperature

    -20-60Deg.C

  • Humidity

    0-80% RH; Non-condensing

  • Dimensions (W x H x D)

    10.6 x 1.9 x 3.1" (26.9 x 4.8 x 7.9cm)

  • Weight

    2.1 lbs (0.95kg)

  • UPC Code

    881317506276

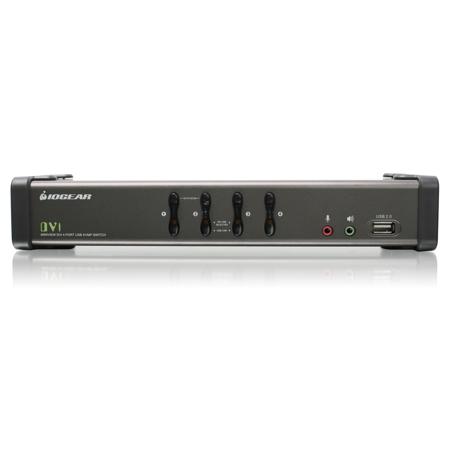

About IOGEAR 4-Port DVI KVMP Switch, Wireless Keyboard/Mouse

The 4-Port DVI KVMP Switch with Cable from Iogear allows a single user to manage 4 separate workstations with one keyboard, mouse and monitor. Switch between the computers via the switch on the front panel or by hotkey. Asynchronous switching allows you to use peripherals from one computer while the switch targets another one, allowing you to switch without interrupting printing or another peripheral device in use.

With support of single-link DVI resolutions up to 1920 x 1200 and full 2.1 stereo audio support, the 4-Port DVI KVMP Switch provides a versatile and convenient way to manage four computers from one station. The switch comes with USB KVM cables and Iogear's Long-Range Wireless Media Center Keyboard & Mouse.

IOGEAR 4-Port DVI KVMP Switch, Wireless Keyboard/Mouse Features

  • Dual function KVMP / USB switch
  • One console controls 4 computers
  • Control your computers up to 33ft away with the reliable 2.4GHz bi-directional technology keyboard and laser mouse
  • Media Center hot keys offer quick access to your media tasks such as "My TV", playback and volume control
  • Contoured laser mouse with soft rubber grips provides exceptional precision and comfort
  • Iogear's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • Independent (asynchronous) switching of KVM and peripheral USB / audio ports
  • KVM is fully compliant with the USB 2.0 specification
  • DVI digital and analog monitor support
  • Computer selection via front panel switches or hot keys
  • LED display for easy status monitoring
  • Auto Scan Mode for monitoring all computers
  • Complete keyboard emulation for error free booting
  • Superior Video quality - 1920 x 1200 @ 60Hz; DDC2B
  • Easy installation
  • Hot-Pluggable - Add or remove computers for maintenance without powering down the switch
  • Supports Windows and Mac host systems
  • Compatible with most wireless keyboards and mice
  • Firmware upgradable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual function KVMP / USB switch
  • One console controls 4 computers
  • Control your computers up to 33ft away
  • Media Center hot keys offer quick access to your media tasks such as "My TV", playback & volume control
  • Contoured laser mouse
  • Iogear's Display Emulation technology

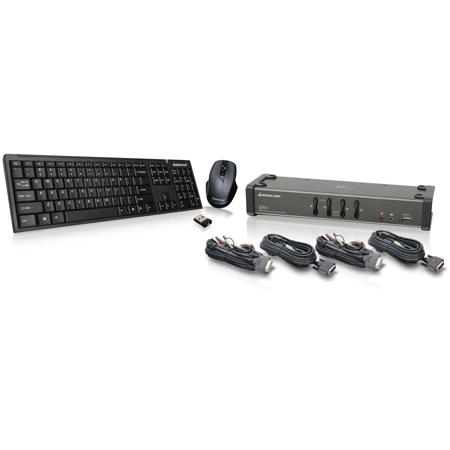

What's in the box:

  • IOGEAR 4-Port DVI KVMP Switch
  • 1 x 2.4GHz Wireless Keyboard and Mouse Combo
  • 4 x USB DVI-D KVM Cables
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Quick Start Guide
  • 2 x Warranty Card
  • IOGEAR 3 Year Warranty
