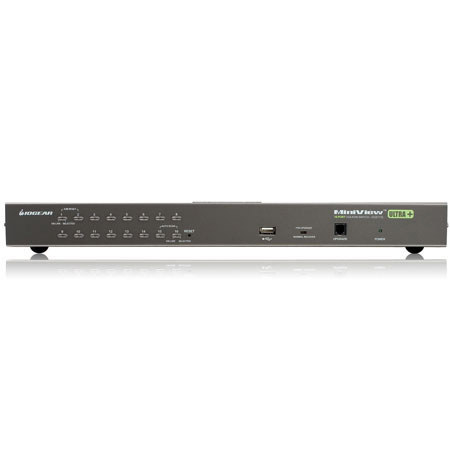

IOGEAR GCS1716KITU 16-Port USB PS/2 Combo KVM Switch
See all Iogear items

IOGEAR GCS1716KITU 16-Port USB PS/2 Combo KVM Switch with Cables

SKU: IGGCS1716KU

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR GCS1716KITU Specifications

  • Computer Connections

    16

  • Daisy Chain/Cascading Connections

    256 (via Cascade)

  • Port Selection

    Hotkeys, OSD, Button

  • Connectors

    Console: 1 x SPHD-18 Male (Yellow)
    Computer/KVM: 16 x SPHD-15 Female (Yellow)
    Power: 1 x DC Jack
    USB: 1 x USB 1.1 Type A Female

  • Reset Switch

    1 x Semi-Recessed Push Button

  • F/W Upgrade

    1 x Slide Switch

  • Switch Port Selection

    16 x Push Button

  • Emulation Keyboard

    PS/2, USB

  • Emulation Mouse

    PS/2, USB

  • Video Resolution

    VGA 2048x1536, DDC2B

  • Voltage

    DC 5.3V

  • Amps

    2.4A

  • Scan Interval

    1-255 sec

  • Operation Temperature

    0-50C

  • Storage Temperature

    -20-60C

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (W x H x D)

    17 x 1.75 x 6.25" (43.18 x 4.44 x 15.87 cm)

  • Weight

    6.02 lb (2.73 kg)

  • UPC Code

    881317505828

0 Accessories for IOGEAR GCS1716KITU 16-Port USB PS/2 Combo KVM Switch with Cables

About IOGEAR GCS1716KITU

The Iogear GCS1716KITU KVM is a combo switch with USB KVM cables included; allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

IOGEAR GCS1716KITU Features

  • Multi platform OS support - Windows, Mac, Sun Solaris and Linux
  • Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels - control up to 256 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Multi platform OS support
  • Windows Mac Sun Solaris & Linux
  • Easy to operate
  • Computer selection via front panel LED's intuitive OSD (on screen display) & hotkeys
  • Cascade up to 2 levels
  • Control up to 256 computers from a single console

What's in the box:

  • IOGEAR 1 x GCS1716 16-Port Combo KVM
  • 1 x 2M USB KVM Cable (G2L5202U)
  • 1 x 2M PS/2 KVM Cable (G2L5202P)
  • 16 x 3M USB KVM Cable (G2L5203U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
  • 1 x Standard Rack Mounting Kit
  • IOGEAR 3 Year Warranty
