IOGEAR 4 Port MiniView Extreme Multimedia KVMP Switch
See all Iogear items

IOGEAR 4 Port MiniView Extreme Multimedia KVMP USB/PS2/Audio/Peripheral Sharing Switch Kit with Cables

SKU: IGGCS1734
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR 4 Port MiniView Extreme Multimedia KVMP Switch Specifications

  • Housing Case

    Plastic/Metal

  • Console Connectors

    Mouse: 1 x USB Type A
    Keyboard: 1 x USB Type A
    Monitor: 1 x HDB-15 Female (Std. VGA/SVGA)
    Audio: 1 x stereo speaker; 1 x Microphone
    Flash ROM Upgrade: 1 x RJ11 socket

  • Power

    Voltage: DC 5V
    Amps: 2.6 AMP

  • LEDs

    Selected: 4
    On Line: 4
    USB Peripherals: 4

  • Port Selection

    Push button, Hot Keys

  • Power Consumption

    Bus powered, power adapter for additional power

  • Video Resolution

    2048x1536 (Max.); DDC/ DDC2B/ DDC2AB

  • Scan Interval

    5 sec.

  • Emulation

    Keyboard: USB Plug-n-Play
    Mouse: USB Plug-n-Play

  • Computer Connections

    Direct: 4

  • CPU Connectors

    Audio: 4 x stereo speaker; 4 x Microphone
    Peripherals: 2 x USB Type A
    Keyboard, Mouse, and Monitor: 4 x SPDB15

  • Operating Temperature

    4 - 40deg.C

  • Storage Temperature

    -20 - 60 C

  • Humidity

    0 - 80% RH

  • Cable Length

    4 ea 6 ft (1.8M)

  • Peripheral Sharing

    USB, selected through Hotkeys

  • Requirement

    Computers with USB or PS/2 connections (additional cables needed for PS/2 computers, USB peripheral ports won't function when use PS/2 cables.)
    Windows 98, 98SE, ME, 2000, XP
    Mac OS 8.6 or greater
    Sun Solaris work station
    Linux, UNIX and other USB supported systems
    Additional drivers and support may be needed
    Audio: Only support 2-piece, powered speakers systems

  • Dimensions (W x H x D)

    8" x 1.7" x 3.5" / 20.32 x 4.318 x 8.89 cm

  • Weight

    1.1 lbs (0.50 kg)

  • UPC Code

    881317000460

About IOGEAR 4 Port MiniView Extreme Multimedia KVMP Switch

IOGEAR's new MiniView Extreme Multimedia KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Windows, Mac, and Sun systems using USB or PS/2. You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more.

Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of IOGEAR's Miniview Extreme KVMP switch.

IOGEAR 4 Port MiniView Extreme Multimedia KVMP Switch Features

  • Multi functional switch allows four USB or PS/2 computers to share one USB console and two USB peripheral devices such as printers and scanners, as well as speakers and a microphone
  • User can conveniently switch USB peripheral devices from one computer to another using Hot Keys
  • USB peripheral devices and USB consoles can be switched asynchronously from one computer to another using Hot Keys
  • Fully compliant with USB 1.1 specifications
  • Complete keyboard and mouse emulation for error free booting
  • Support special keys on Mac and Sun keyboard
  • AutoScan mode to monitor all computers
  • Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys
  • Features AutoScan mode to monitor all computers
  • LED display for easy status monitoring
  • Superior video quality - supports resolutions up to 2048 x 1536
  • Extra convenience offered through sharing of speakers and microphone
  • Easy installation: no software required, hot swappable
  • Compact design for easy placement

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

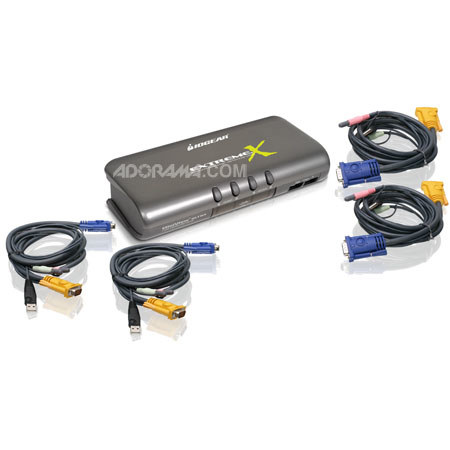

  • IOGEAR 4 Port MiniView Extreme Multimedia KVMP Switch
  • 4 USB KVM Bonded Cables
  • 1 Quick Start Guide
  • 1 User Manual
  • 1 Warranty Card
  • 1 Power Adapter
  • 1 Firmware Upgrade Cable
  • IOGEAR 3 Year Warranty
