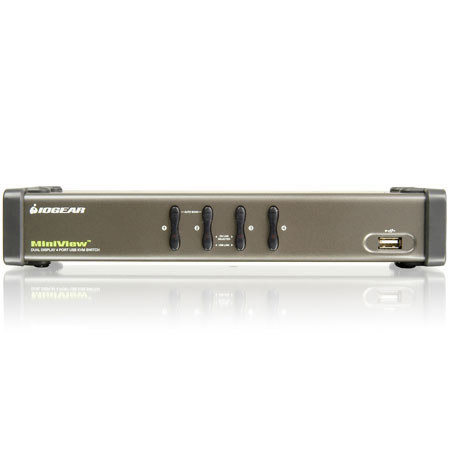

IOGEAR GCS1744 4-Port Dual View KVM Switch
See all Iogear items

IOGEAR GCS1744 4-Port Dual View KVM Switch, 2048 x 1536 Resolution, USB, VGA Interface

SKU: IGGCS1744
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR GCS1744 Specifications

  • Max Computer Connections

    4

  • PC Connectors

    Monitor: USB/Video1: SPHD-15 Female x 4; Audio/Video2: SPHD-15 Male x 4
    Peripheral: USB Type A Female x 4

  • Console Connectors

    Keyboard: USB Type A socket x 1
    Monitor: HDB15 Female x 2
    Audio: Earphone Jack Female x 1; Microphone Jack Female x 1
    Mouse: USB Type A socket x 1
    Flash ROM Upgrade: RJ11 Socket x 1

  • Video Resolution

    2048 x 1536

  • Scan Interval

    1-99 seconds

  • Port Selection

    Push Button; Hot Keys

  • Enclosure

    Metal

  • System Requirements

    Console: 2 x VGA Monitors
    1 x USB mouse
    1 x USB keyboard
    Computer: 2 x VGA, SVGA, or MultiSync ports
    1 x Type A USB port
    Operating Systems: Windows 98, 98SE, ME, 2000, XP; Mac OS 8.6 or greater; Linux, UNIX and other USB supported systems
    Audio: Requires 2-piece powered speaker system

  • On Line LEDs

    4 x Orange

  • Link LEDs

    4 x Green

  • Power Requirements

    DC 5V

  • Power Consumption

    1.25W

  • Operating Temperature

    0-50 C

  • Storage Temperature

    -20-60 C

  • Humidity

    0 - 80% RH, NC

  • Cable Length

    4 USB/Video and 4 Audio/video at 5.9 ft (1.8m)

  • Dimensions (W x H x D)

    10.75 x 2.25 x 3.0 inches / 273.05 x 57.15 x 76.2 mm

  • Weight

    3 lbs (1.360 kg)

  • UPC Code

    881317003645

About IOGEAR GCS1744

The Dual View GCS1744 USB KVMP Switch brings dual head video functionality to Iogear's USB KVM switch technology. Now four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse and two VGA, SVGA, or Multisync monitors. In addition, the GCS1744 allows the computers to share USB peripherals connected to the USB peripheral ports, such as printers, scanners, portable hard drives, etc.

Recognizing the importance of sound, this switch is also audio enabled. A single microphone can provide audio input to each of the computers and you can enjoy the audio output of each computer on a single set of speakers.

IOGEAR GCS1744 Features

  • One dual monitor console controls four dual monitor computers
  • Additional VGA display channel provided for dual display of each computer
  • Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners and portable hard drives, etc
  • Advanced Control: Switch computers without interrupting USB or Audio operations
  • Audio jacks provided for speaker and microphone sharing
  • Independent switching of KVM, USB and audio
  • Easy to install - no software required - connecting cables is all it takes
  • Easy to operate - computer selection via push button switches or hotkeys
  • Auto Scan function to monitor computer operation
  • Hotkey selection for OS and keyboard language
  • LED display for easy status monitoring
  • Caps Lock, Num Lock and Scroll Lock, states are saved and restored when switching
  • Hot pluggable add or remove computers for easy maintenance
  • Firmware upgradable
  • Keyboard and mouse emulation for error free booting
  • Supports multimedia USB keyboards
  • Supports Mac & Sun keyboards
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Efficient, ergonomic design - logical connector layout

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • IOGEAR GCS1744 4-Port Dual View KVM Switch
  • 1 x Power Adapter
  • 4 x Custom Audio/Video Cables (5.9 ft Long)
  • 4 x Custom USB/Video Cables (5.9 ft long)
  • 1 x Firmware Upgrade Cable
  • 1 x User Manual
  • 1 x Quick Start Guide
  • IOGEAR 3 Year Warranty
