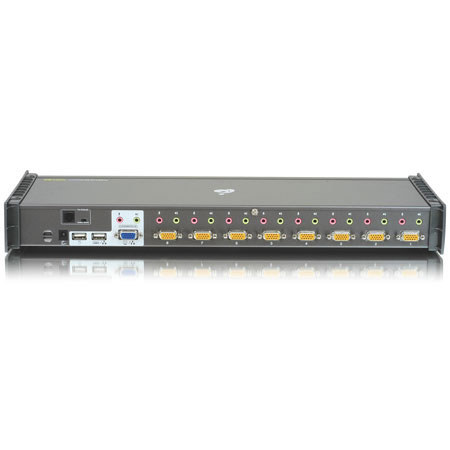

IOGEAR MiniView GCS1758 8-Port Ultra+ KVM Switch, 2048x1536 Resolution, USB Interface

SKU: IGGCS1758

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR GCS1758 Specifications

  • Max Computer Connections

    8 Direct connections or 512 Daisy Chain or Cascading

  • PC Connectors

    8 HDB15 for Keyboard, Mouse and Monitor
    8 Audio connectors
    8 Microphone connectors

  • Console Connectors

    Microphone: 1
    Monitor-HDDB15 female: 1
    Audio: 1
    Mouse-USB Type A: 1
    Keyboard-USB Type A: 1

  • Video Resolution

    2048 x 1536 at 60Hz; DDC2B

  • Scan Interval

    1-255 seconds

  • Port Selection

    Push Buttons, Hot Keys or OSD

  • Enclosure

    Metal

  • System Requirements

    Console: VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation
    USB mouse & keyboard
    VGA, SVGA, or Multisync card
    Either a Type-A USB port, or PS/2 mouse and keyboard ports
    To share audio, a multimedia sound card is required. Only support 2-piece, powered speakers systems
    Cables: For PS/2 computers, use IOGEAR part number G2L530XP; for USB computers, use IOGEAR part number G2L530XU

  • Power Requirements

    5V DC, 2.6 Amp

  • Dimensions (W x H x D)

    17.0 x 1.75 x 6.0" (43.2 x 4.4 x 15.2 cm)

  • Weight

    5.9 lbs (2.66 kg)

  • UPC Code

    881317001078

About IOGEAR GCS1758

The IOGEAR GCS1758 8-Port Miniview Ultra+ KVM Switch is ideal tool to help reduce redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse. The added audio support allows you to enjoy music while working. Just think of the time, space and money you'll save and added fun.

The New Miniview Ultra+ is much more than a simple eight-port KVM switch. The dual interface support allows you to connect both PS/2 and USB computers on the same switch. The multi-platform support allows you to control Windows based computers, Sun Solaris systems, Linux, or even Macs by a single KVM switch. IOGEAR extended the multi-platform support by supporting the special keys on both Sun and Mac keyboards.

This KVM switch also comes with the IOGEAR VSE technology, which provides excellent video resolution - up to 2048 x 1536. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while On Screen Display (OSD) technology allows you to assign a unique name to each computer and access it via a smooth menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the Miniview Ultra+ is the perfect switch for your server room or any other multi-computer environment.

IOGEAR GCS1758 Features

  • Dual interface support - supports computers with either PS/2 or USB Keyboard and mouse
  • Multi platform support - Windows, Mac and Sun Solaris
  • Easy to install - just plug the cables in
  • Audio support allows sharing multimedia speakers and Microphone
  • Easy to operate - computer selection via front panel switches, intuitive OSD (on screen display) and Hot Keys
  • Security - 2 level password protection for OSD
  • Hot Pluggable - both console side and computer side can hot swap and auto-detect device changes
  • LED Display for easy status monitoring
  • Auto Scan Mode for monitoring all computers
  • Complete keyboard emulation for error free booting
  • Superior video quality; 2048 x 1536; support DDC2B
  • Total capacity expandable to support 512 computers via 3 levels of cascading
  • Supports special keys on Sun and Mac keyboards
  • Firmware upgradeable through flash ROM
  • Designed for both desktop and rack mount

What's in the box:

  • IOGEAR GCS1758 8-Port Miniview Ultra+ KVM Switch
  • 1 x Power Adapter
  • 1 x Rack Mount Kit
  • 1 x Firmware Upgrade Cable
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x Warranty Registration Card
  • IOGEAR 3 Year Warranty
