IOGEAR KVMP Switch Kit Specifications

  • System Requirements

    Console:
    DVI Monitor
    Standard 104 key wired USB keyboard
    Standard 2 or 3 button USB mouse

    Computers:
    DVI or Mini DisplayPort port
    USB Type-A port

    Operating Systems:
    Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
    Mac OS 9 to 10.x
    Oracle Solaris
    Linux, Unix and other USB supported systems

  • Computer Connections

    Direct: 4
    Port Selection: Hotkey, Push Button

  • Console Connectors: Monitor

    1x Dual Link DVI-I Female

  • Console Connectors: Keyboard

    1x USB Type A Female

  • Console Connectors: Mouse

    1x USB Type A Female

  • Console Connectors: Flash ROM Upgrade

    1x 4-conductor 3.5mm Jack (Black)

  • Connectors-Audio: Console

    Center/Subwoofer: 1x Mini Stereo Jack Female (Orange)
    Line In: 1x Mini Stereo Jack Female (Blue)
    Line Out: 1x Mini Stereo Jack Female (Green)
    Microphone: 1x Mini Stereo Jack Female (Pink)
    Rear Speaker Out: 1x Mini Stereo Jack Female (Black)
    Side Speaker Out: 1x Mini Stereo Jack Female (Gray)

  • CPU Connectors: Monitor

    4x Dual Link DVI-I Female

  • CPU Connectors: Keyboard & Mouse

    4x Dual Link DVI-I Female

  • Connectors-Audio: CPU

    Center/Subwoofer: 1x Mini Stereo Jack Female (Orange)
    Line In: 1x Mini Stereo Jack Female (Blue)
    Line Out: 1x Mini Stereo Jack Female (Green)
    Microphone: 1x Mini Stereo Jack Female (Pink)
    Rear Speaker Out: 1x Mini Stereo Jack Female (Black)
    Side Speaker Out: 1x Mini Stereo Jack Female (Gray)
    Peripheral Sharing: 2x USB 2.0 Type A Female

  • LEDs

    On Line: 4x Orange
    KVM: 4x Green
    Audio: 4x Green
    USB Peripherals: 4x Green

  • Emulation: Keyboard

    USB

  • Emulation: Mouse

    USB

  • Emulation: Video Resolution

    DVI-D: 2560x1600 at 60Hz (Dual Link); 1920x1200 at 60Hz (Single Link); 3840x2400 at 13Hz (Single Link - with special monitors only); DVI-A: 2048x1536; DDC2B

  • Emulation: Scan Interval

    1-99 sec (5 sec default)

  • Power

    Voltage: DC 5.3V
    Amps: 2.4A

  • Housing

    Case: Metal

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Humility

    0-80% RH, Non-condensing

  • Dimensions (HxDxL)

    17 x 2.25 x 6.12" (43.18 x 5.72 x 15.54cm)

  • Weight

    6 lbs (2.72kg)

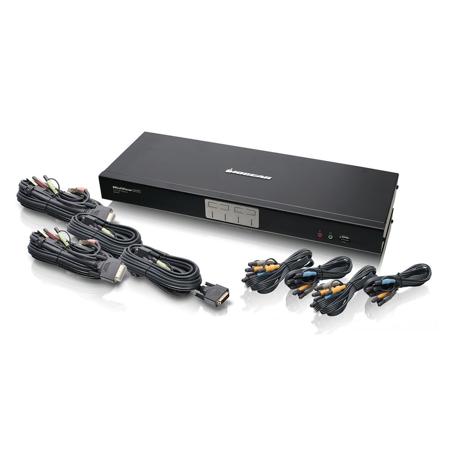

About IOGEAR KVMP Switch Kit

4-Port Dual-Link DVI and Mini DisplayPort KVMP with 7.1 Audio
Iogear's 4-port Dual-Link DVI and Mini DisplayPort KVMP switch with 7.1 audio offers complete flexibility with your Dual-Link DVI and Mini DisplayPort connections. Take full advantage of the included active Mini DisplayPort adapters. Control and switch between Mini DisplayPort and Dual-Link DVI computers. Take control of four computers and share multiple USB peripherals from a single keyboard, monitor and mouse console.

• Switch between 4 computers with the push of a button
• Offers the flexibility to mix and match computer connections: DVI and Mini DisplayPort
• Kit includes 4x Mini DisplayPort to DVI Active adapters
• Switching via pushbutton or hotkey
• Cost effective: Plug-N-Play solution and cables are included
• Share a professional quality monitor between four computers
• DynaSync1 technology reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between or booting computers
• Compatible with gaming keyboards
• Supports high-end 3D graphics
• Maximum video resolutions: 4K UHD: 3840x2160 (depends on source and compatible monitors), DVI-D Dual link: 2560x1600, DVI-D Single link: 1920x1200
• Share a 7.1 surround sound system between two computers
• Built-in USB 2.0 hub - share USB peripherals between all connected computers
• Asynchronous hotkey switching between KVM focus, USB peripheral and audio ports
• Complete keyboard and mouse emulation for error free booting and real-time switching
• Mouse emulation may be disabled to allow programmable buttons to function
• Supports MAC keyboard and special keys
• Firmware upgradeable
• All cables are included
• Convert your Mini DisplayPort to DVI using the included Active Mini DisplayPort to DVI Adapters
• Supports up to 3840x2160 at 30Hz resolution based on source and monitor capabilities
• Compatible with AMD Radeon Eyefinity Graphics Processing Units (GPUs)
• DisplayPort 1.2 and HDMI 1.4 Compliant
• Plug-N-Play Solution, No Software or Driver installation necessary
• Powered by DisplayPort Output- No external power adapter needed

Control, Switch and Share
Switching between computers can be done in two convenient ways: front panel pushbutton or hotkey combination. The integrated 4-port USB 2.0 hub allows peripheral expansion, minimizing the need to purchase an extra USB hub.

High Video Resolution Solution up to 4K
The 4-Port Dual-Link DVI and Mini DisplayPort KVMP switch supports high-end 3D graphics (NVIDIA 3D Vision Ready) and is compatible with most gaming keyboards. With a 4K source and compatible 4K HDMI monitor, connecting your DisplayPort computers with the included adapters is the perfect application where ultra-high video resolution is required:

• CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
• Desktop Publishing / Graphic Design / Video Editing
• Medical / Surgical / Diagnostic Displays
• High-end gaming, where ultra-high video resolution is demanded

7.1 Surround Sound
This Dual-Link DVI and Mini DisplayPort KVM switch comes ready with 7.1 audio support, allowing audiophiles to enjoy the upgraded 7.1 surround sound experience. Complete your full audio experience by connecting a full surround sound setup in your entertainment environment. With high video resolution and high audio resolution, this will satisfy any A/V enthusiast or professional.

Out-of-Box Solution
Iogear's 4-Port Dual-Link and Mini DisplayPort KVMP Switch Kit with 7.1 Audio is the complete solution package you need for your computer switching setups. Whether you need connection for Dual-Link DVI, Mini DisplayPort or a combination between the two, this Dual-Link DVI and Mini DisplayPort KVM kit offers a true out-of-box solution for your connectivity needs.

What's in the box:

  • Iogear 4-Port Dual-Link DVI KVMP Pro with 7.1 Audio
  • 4x Active Mini DisplayPort to DVI Adapters
  • 4x Dual-Link DVI-D KVM Cable
  • 4x 7.1 Audio Cable
  • Firmware Upgrade Cable
  • Power Adapter
  • Installation Guide
  • Iogear 3 Year Warranty
