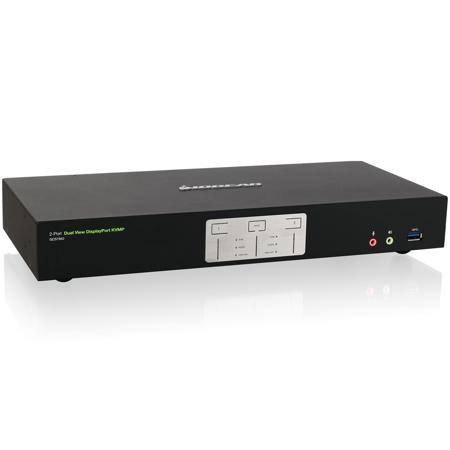

IOGEAR 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio, TAA

SKU: IGGCS1942NC MFR: GCS1942NC
Earn VIP Reward Points

Key Features

  • Seamlessly switch between two computers with this IOGEAR 4K Dual View DisplayPort KVMP switch.
  • Enjoy stunning video quality with resolutions up to 4096 x 2160 @60 Hz using this DisplayPort KVM.
  • The integrated USB 3.0 hub lets you share peripherals between connected computers easily.
  • Use hotkey commands, pushbuttons, or a mouse to switch ports on this versatile KVM switch.
  • Enhance your workstation with dual monitor support, boosting productivity with this KVM.
  • This TAA-compliant KVM switch ensures secure and reliable performance for government use.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Darrio H : I primarily decided to give iogear a second chance. I hope to for an easy solution to swap between my pc and my laptop docking station. That’s it

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

IOGEAR KVMP Switch Specifications

Requirements

Requirements

Jump to...
  • Requirements

    Console: 2x DisplayPort compatible monitors
    Standard 104-key wired USB keyboard
    Standard 2 or 3-button wired USB mouse
    Microphone and speakers (optional)

    Computer: 2x DisplayPort ports
    Type-A USB port
    Audio ports (optional)
    Use with video adapter may change performance

Computer Connections

Jump to...
  • Direct

    2

  • Daisy Chain or Cascading

    2

Port Selection

Jump to...
  • Port Selection

    Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), or RS-232 commands

Console Connectors

Jump to...
  • Monitor

    2x DisplayPort (Black)

  • Keyboard

    1x USB Type A (Black)

  • Mouse

    1x USB Type A (Black)

  • Audio

    2x 3.5mm Mini Stereo Jack (Green; Front and Rear)

  • Microphone

    2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

CPU Connectors

Jump to...
  • Monitor

    2x DisplayPort (Black)

  • Keyboard & Mouse

    2x USB 3.0 Type B (Blue)

  • Audio

    2x 3.5mm Mini Stereo Jack (Green)

  • Microphone

    2x 3.5mm Mini Stereo Jack (Pink)

Switches

Jump to...
  • F/W Upgrade

    1x USB Type B

  • Port Selection

    2x Pushbutton

Connectors

Jump to...
  • USB

    1x USB 3.0 Type A (Blue; Front), 1x USB 3.0 Type A (Blue; Rear)

  • Serial

    1x RJ-45 (DCC)

  • On Line

    2x Orange

  • Selected

    2x Orange

  • Audio

    2x Green

  • USB Peripherals

    2x Green

Emulation

Jump to...
  • Keyboard

    USB

  • Mouse

    USB

Video Resolution

Jump to...
  • Video Resolution

    4096 x 2160 @60 Hz (4K DCI)

Scan Interval

Jump to...
  • Scan Interval

    1-255 seconds (5 seconds default)

Power Consumption

Jump to...
  • Power Consumption

    DC 12V

Environment

Jump to...
  • Operation Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F(-20 - 60 Degree C)

  • Humidity

    0-80% RH, Non-condensing

Housing

Jump to...
  • Case

    Metal

General

Jump to...
  • Dimensions (H x L x D)

    2.125 x 13.19 x 6.125" (5.39 x 33.5 x 15.56cm)

  • Weight

    3.5lbs (1.59kg)

  • UPC Code

    881317520654

About IOGEAR KVMP Switch

Take your multi-monitor workstation to the next level with the 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio. This high-quality, durable device is designed to maximize the potential of your high-end dual DisplayPort workstations, offering a seamless switch between two 4K displays.

Experience the brilliance of Cinema 4K resolutions, delivering a standard of 4096 x 2160 at a smooth frame rate of 60Hz. This compact, efficient device is perfect for professional film and video production industries, as well as applications in motion graphic design, animation, engineering, architecture, and media design, where superior screen, image, and video quality are paramount.

This user-friendly KVMP switch allows you to switch and access two DisplayPort computers effortlessly, either from the push-button front panel or via a hotkey combination on your keyboard. It also features the latest in mouse port-switching functionality, enabling you to change ports with a simple click of the wheel button on your 3-button USB mouse.

Expand your workspace and double your desktop viewing space by adding a second 2-Port KVMP. With Multi Stream Transport (MST) support, you can daisy chain each monitor to another, accommodating up to four Cinema 4K DisplayPort monitors.

The built-in USB 3.0 hub provides connectivity speeds up to 5Gbps, allowing you to connect multiple USB devices such as keyboards, mice, and external hard drives. It's also compatible with legacy USB 2.0 and 1.1 devices.

Additional smart connectivity features like Power on Detection ensure automatic connection to the next powered-on computer, turning your workstation into a convenient, easy-to-use powerhouse. Experience the superior performance and convenience of the 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio.

IOGEAR KVMP Switch Features

  • Maximize your high-end multi-monitor workstation with superior video resolution
  • Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz)
  • Operate 2 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
  • Add another GCS1942 to expand up to four 4K monitors
  • DisplayPort 1.2 compliant, HDCP compliant
  • Allows independent switching of the KVM, USB, and audio devices
  • Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices
  • Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
  • SuperSpeed 5Gbps transfer rate
  • MST (Multi-Stream Transport)1
  • DP++ supports HDMI and DVI output2
  • Computer selection via front panel pushbuttons, hotkeys, or mouse3
  • Supports 7.1 HD audio through DisplayPort4
  • Full bass response for high quality 2.1 channel audio
  • Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support - Windows7, Windows 8.1, Windows 10, Mac OS, and Linux
  • Multilingual keyboard mapping supports English, French, and German keyboards
  • Mac keyboard support and emulation5
  • RS-232 Commands6
  • Auto-Scan Mode to monitor all computers
  • Power on detection
  • Hot pluggable
  • Firmware upgradable
  • Includes all KVM and audio cables

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between two computers with this IOGEAR 4K Dual View DisplayPort KVMP switch.
  • Enjoy stunning video quality with resolutions up to 4096 x 2160 @60 Hz using this DisplayPort KVM.
  • The integrated USB 3.0 hub lets you share peripherals between connected computers easily.
  • Use hotkey commands, pushbuttons, or a mouse to switch ports on this versatile KVM switch.
  • Enhance your workstation with dual monitor support, boosting productivity with this KVM.
  • This TAA-compliant KVM switch ensures secure and reliable performance for government use.

What's in the box:

  • IOGEAR 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA)
  • Power Adapter
  • Quick Start Guide
  • IOGEAR 3 Year Limited Warranty
