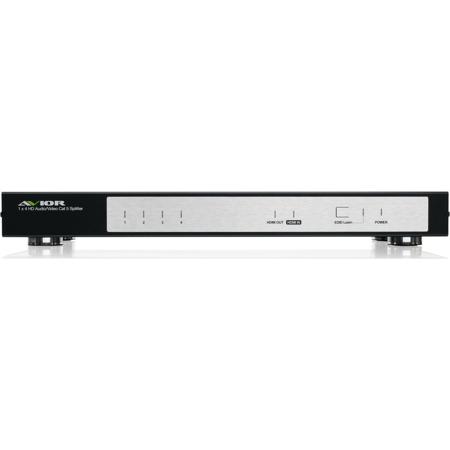

IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter, Up to 2.25Gbps Data Rate
See all Iogear items

IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter, Up to 2.25Gbps Data Rate, 121' Cascading Distance

SKU: IGGHSP8214E

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter, Up to 2.25Gbps Data Rate Specifications

  • LEDs

    Power On: 1
    Port Status: 4 (Output)

  • Power

    Voltage: 6V DC
    Amps: 2A
    Power Consumption: 12 Watts (max)

  • Data Rate

    Up to 2.25Gbps

  • Video Resolution

    480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA

  • Cable Connections

    Input: HDMI
    Output: HDMI

  • Connectors

    Input: 1 x HDMI Type A 19 Pin Female
    Output: 8 x HDMI Type A 19 Pin Female

  • Operation Temperature

    32 deg. F to 122 deg. F (0 deg. C to 50 deg. C)

  • Humidity

    0-80% RH (Non Condensing)

  • Storage Temperature

    -4 deg. F to 140 deg. F (-20 deg. C to 60 deg. C)

  • Case Material

    Metal

  • Cascading Distance

    Source to device: 6' (1.82m)
    Device to device: 50' (15.24m)
    Device to display: 65' (19.81m)
    Total: 121' (36.88m)

  • Certification

    RoHS Compliant
    HDCP Compliant

  • Dimensions (L x D x H)

    17.22 x 6.1 x 2.13" (43.73 x 15.49 x 5.41cm)

  • Weight

    4.63lbs (2.1kg)

  • UPC Code

    881317509659

About IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter, Up to 2.25Gbps Data Rate

The Iogear 4-Port HDMI Audio/Video Cat5e/6 Splitter takes high definition audio and video from a single HDMI media source and directs it to 4 separate HD TVs or displays with 3D support via Cat5e/6 receiver. Being HDCP compliant, the unit is able to support the highest quality HD video and multi-channel digital audio, enabling the splitting of HD content from DVR / Set-top boxes, Blu-Ray players, computers and other HD or non-HD devices. The "Loop Through" also known as a "Local Port" offers additional flexibility for cascading and an additional local viewing monitor connection. Designed with 1Urack-mountable metal casing. Distribute Full HD 1080p (24/60 Hz) or your 3D content with multi-channel digital audio and 12-bit Deep Color. The Iogear 4 Port HDMI Cat5e/6 Splitter can cascade up to 3 levels supporting up to 64 HDMI signals. Cascading distance from source to device 6ft, device to device 50ft and device to display 65ft; makes a total of 121ft through cascade.

IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter, Up to 2.25Gbps Data Rate Features

  • Distribute a single HDMI media source up to 4 HDMI displays over Cat 5e/6 cables up to 196 feet
  • Connect with HDMI Cat 5e/6 Audio/Video Receiver
  • Works with DVR / Set-top boxes, Blu-ray / DVD players, media servers, computers and many more
  • A local HDMI Out Port allows flexibility for cascading and one additional local viewing monitor connection
  • High resolution support: 1080p up to 130ft, 1080i up to 196ft
  • Auto-detects the highest common resolution of connected displays
  • Supports 12-bit Deep Color
  • LED indication of displays
  • HDCP Compliant
  • Backwards compatible with DVI devices with HDMI to DVI adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Connect with HDMI Cat 5e/6 Audio/Video Receiver
  • High resolution support
  • Supports 12-bit Deep Color
  • LED indication of displays
  • HDCP Compliant

What's in the box:

  • IOGEAR 4-Port HDMI Audio/Video Cat5e/6 Splitter
  • Rack Mount Kit
  • Power Adapter
  • Foot Kit
  • Quick Start Guide
  • IOGEAR 3 Year Warranty
