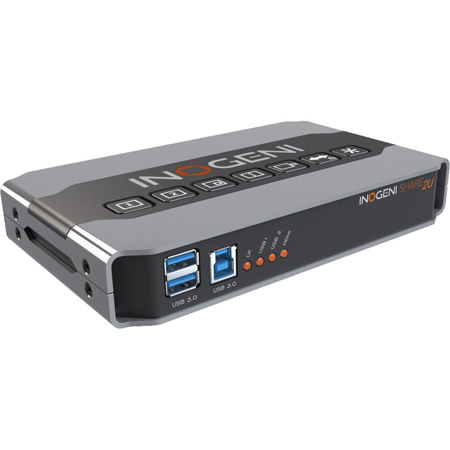

INOGENI SHARE2U Mix Dual USB/HDMI Cameras to USB 3.0 Multi I/O Capture Device

SKU: IGSHARE2U1 MFR: INOGENI-SHARE2U
Earn VIP Reward Points

Key Features

  • Mix dual USB/HDMI cameras into one 1080p60 USB 3.0 signal for seamless video capture.
  • Create dynamic presentations using the 2:1 camera mixer with picture-in-picture mode.
  • Enjoy stable connection with UVC-compliant software like Teams, Zoom, and Webex.
  • Capture from multiple sources; supports simultaneous capture of 2x USB + Audio.
  • Experience low latency video output with automatic hardware-based video scaling.
  • Achieve high resolution video with uncompressed USB 3.0 output up to 1080p60.
See More Product Details
On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

INOGENI SHARE2U Specifications

Main feature

Main feature

Jump to...
  • 2:1 Camera mixer

    2:1 Camera mixer
    (1x USB and 1x USB or HDMI cameras mixer into a single USB 3.0 interface)
    Simultaneous capture and mix of 2x USB 2.0 signals + Audio into one 1080p60 USB 3.0 signal
    14 mix setup videos: Picture-in-picutre, side-by-side

Video input

Jump to...
  • #1 Connector & video resolutions

    1x USB camera 2.0
    MJPEG or H264
    Depends on the camera specifications

  • #2 Connector & video resolutions

    1x USB camera 2.0
    MJPEG or H264
    Depends on the camera specifications
    - OR -
    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than SU2111xxx and SUM111xxx)

  • Color space

    HDMI : RGB, YCbCr 4:4:4 and 4:2:2

Video output

Jump to...
  • HDMI

    1x HDMI up to 1080p60
    (One mixed video stream)

  • USB

    1x USB 3.0 uncompressed up to 1080p60
    (One mixed video stream)

  • USB - Color Space ou CODEC

    USB 3.0: YCbCr (YUY2) 4:2:2 8-bit
    USB 2.0: MJPEG

  • USB - Video scaler

    Automatic hardware-based

  • USB - Color space conversion

    Automatic hardware-based

  • USB - Sampling conversion

    Automatic hardware-based

  • USB - Frame rate conversion

    Automatic hardware-based

  • Analog audio connections

    Unbalanced analog stereo, line level, 3.5 mm jack

  • Analog audio I/O

    2-channel LPCM 48kHz audio from line input

  • Digital audio I/O

    Embedded in HDMI or USB

Control

Jump to...
  • Control options

    Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232

  • IP interface

    10 Mbps
    Static address configuration through our Control App
    DHCP not supported

USB Port

Jump to...
  • USB expansion port

    Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Compatibility

Jump to...
  • Barco ClickShare Conference Compatible

    Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

  • Operating systems

    NO driver installation necessary
    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2.6.38)

  • Minimum host requirements

    USB 2.0 port - We recommend USB 3.0 for uncompressed video
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

  • Supported cameras

    Depends on the camera specifications

  • Software Compatibility

    UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2
    Compatible to: Teams, Zoom, Webex, Google Meet, etc

Certifications

Jump to...
  • HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

  • Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC

  • TAA-compliant

    Yes

Physical

Jump to...
  • Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

  • Operating temperature

    32 Degree to 113 Degree F (0 Degree to 45 Degree C)

  • Storage temperature

    -40 Degree to 221 Degree F (-40 Degree to 105 Degree C)

  • Relative humidity

    0% to 90% non-condensing

  • Dimensions (W x L x H)

    7.25 x 4.25 x 1.25" (18.5 x 11 x 3cm)

  • Weight

    1.19 lbs (540g)

About INOGENI SHARE2U

When it comes to enhancing your HyFlex classes or collaborative meetings, the SHARE2U Mix Dual USB/HDMI Cameras to USB 3.0 Multi I/O Capture Device is the perfect solution. This professional-grade camera mixer is designed for a smooth, seamless Bring Your Own Device (BYOD) or Bring Your Own Meeting (BYOM) experience.

The SHARE2U mixer captures two Picture-In-Picture or side-by-side video sources in one video flow, allowing for dynamic presentations. It can mix two cameras from three sources, including two USB 2.0 and one HDMI. This feature enables you to change camera and video configurations without interrupting the flow of your presentation.

Ideal for remote education, collaborative meetings, webinars, or live streaming, the SHARE2U is compatible with Q-SYS Core processors and Barco ClickShare Conference (CX-20, CX-30 & CX-50). It outputs uncompressed video on USB 3.0 or MJPEG on USB 2.0, and offers audio I/O and mixer via the INOGENI Control App.

The SHARE2U is controllable by LAN & RS-232, making it a cost-effective solution that is reliable and simple to install and connect, with no driver required. Its compact and robust design features an Aluminum enclosure, and it is designed and manufactured in Canada, ensuring TAA-compliance.

The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device for manual control. With the push of a button, you can easily switch up to 14 mix setup videos.

This 4K pro AV camera mixer is fully compatible with all cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

The SHARE2U Dual USB camera mixer can be used for a wide variety of applications. It offers seamless integration with Q-SYS technology solutions, robust control modules, easy integration using the Asset Manager library, and reduced integration time of INOGENI products in Q-SYS environments.

Whether you're setting up for a meeting room, lecture room, or live webcast office, the SHARE2U Mix Dual USB/HDMI Cameras to USB 3.0 Multi I/O Capture Device is the ideal solution for creating more complex and engaging content.

INOGENI SHARE2U Features

  • Control interface: LAN, RS-232, USB (Get the software upgrade: Crestron Serial & IP modules)
  • Local and remote keypad: REMOTE User Guide
  • USB 2.0 cameras and HDMI capture
  • Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
  • Audio mixer: Unbalanced, line level stereo audio support
  • PTZ control of USB cameras over USB 3.0 interface
  • Device configuration via the INOGENI Control App
  • Firmware upgrade available via the INOGENI Control App
  • Supports multiple devices on the same host
  • Compatible with Windows, macOS and Linux
  • Compatible with the Q-SYS Core processors
  • Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Key Features

  • Mix dual USB/HDMI cameras into one 1080p60 USB 3.0 signal for seamless video capture.
  • Create dynamic presentations using the 2:1 camera mixer with picture-in-picture mode.
  • Enjoy stable connection with UVC-compliant software like Teams, Zoom, and Webex.
  • Capture from multiple sources; supports simultaneous capture of 2x USB + Audio.
  • Experience low latency video output with automatic hardware-based video scaling.
  • Achieve high resolution video with uncompressed USB 3.0 output up to 1080p60.

What's in the box:

  • INOGENI SHARE2U Mix Dual USB/HDMI Cameras to USB 3.0 Multi I/O Capture Device
  • 3.3' USB 3.0 Cable (Type-A to Type-B)
  • RS-232 Terminal Block Adapter
  • Power Supply
  • INOGENI 2 Year Limited Warranty
