Review Summary
H.264 AVC, H.264 High Profile, H.265
1x HDMI
2x HDMI
Touch display compatible
4K, 30 fps (TX and RX) from 2048 Kbps
1080p, 30 fps from 1024 Kbps
720p, 30 fps from 512 Kbps
Input:
UHD (3840 x 2160)
FHD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p)
XGA (1024 x 768)
SVGA (800 x 600)
Output:
UHD (3840 x 2160)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)
Content frame rate: 5-30 fps (up to 4K resolution at 15 fps in call)
Room participant counting detection
Air Quality Sensor: CO2 and Volatile Organic Compounds (VOC)
Apple AirPlay
Miracast
HDMI input
Whiteboarding
2 lenses:
Wide: 120 Degree HFOV, 140 Degree DFOV
Narrow: 70 Degree HFOV, 78 Degree DFOV
2x 20 Megapixel sensors
7.3x digital zoom
UHD 2160p (4K) capture resolution
Automatic meeting experience powered by Poly DirectorAI including group framing, people framing (preview feature), and speaker framing
Additional cameras can be added via USB
Poly NoiseBlockAI technology
Poly Acoustic Fence technology
1x 3.5mm
1x HDMI
2x MEMS microphones, plus 2x 2nd order microphones
Microphone pickup range up to 25' (7.62m)
1x 3.5mm
Two-way Stereo Speakers
Mid speakers:
Power Handling (RMS) 20 Watts
Power Handling (MAX) 30 Watts
Sensitivity 83 dB
Tweeter speakers:
Power Handling (RMS) 15 Watts
Power Handling (MAX) 20 Watts
Sensitivity 89 dB
Custom Tuned Bass Ports for rich sound
1x HDMI
2x USB-A (3.0)
1x USB-C
Bluetooth 5.0
2x RJ45
Wi-Fi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
22 kHz bandwidth with Polycom Siren 22 technology
20 kHz bandwidth with G.719 (M-Mode) and Polycom Siren 22 technology
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
IPv4
IPv6
2x 10/100/1G Ethernet (RJ45)
Auto-MDIX
H.323 and/or SIP up to 6 Mbps running Poly Video App
Polycom Lost Packet Recovery (LPR) technology
Dynamic bandwidth allocation
Reconfigurable MTU size
Web proxy support:
Basic
Digest
NTLM
Media encryption (H.323, SIP):
AES-128
AES-256
H.235.6 support
Authenticated access to admin menus, web interface, and API
Local account password policy configuration
Security profiles
Local account and login port lockout
Secure defaults
Remote logging with support for TLS
Active directory external authentication
Electronic privacy shutter
Zoom Certified
Microsoft Teams Certified
Google Meet Certified
All cloud service providers through Poly Video App mode
USB Device Mode
Support for native 3rd party applications includes Zoom, Microsoft Teams, Google Meet, BlueJeans, Dialpad, GoToRoom and RingCentral
Radiant
Appspace
Auto sensing power supply
Typical operating voltage/power:
37 VA @ 120 V @ 60Hz
37 VA @ 230 V @ 50/60Hz
Typical BTU/h:
65
Operating temperature: 32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
Non-operating temperature: -40 Degree F to 158 Degree F (-40 Degree to 70 Degree C)
Operating humidity: 15 to 80% (non-condensing)
Non-operating humidity: 5 to 95% (non-condensing)
Maximum altitude: 16,000' (4876m)
Cloud: Poly Lens service
China
33.1 x 5.3 x 4.6" (84.01 x 13.53 x 11.73cm)
7.05 lbs (3.2kg)
196188632864

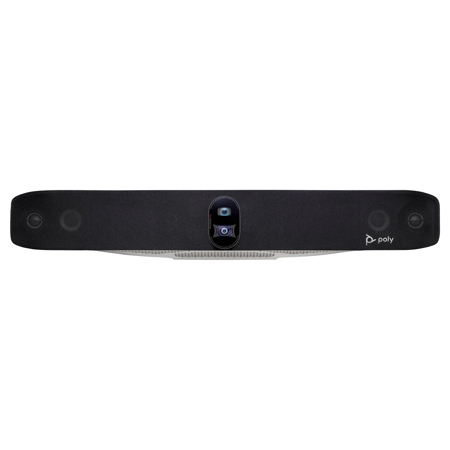

All-in-one video bar for large conference spaces
Enable meeting equality
The Poly Studio X70 video bar combines stunning design with sharp 4K video and boardroom-filling stereo sound that brings your large meeting rooms to life.
Crystal clear video
With lifelike definition from dual cameras and 4K sensors, everyone in the meeting is shown in sharp detail.
Intelligent camera technology
Poly DirectorAI smart camera technology works behind the scenes to keep meeting participants framed.
Pro-quality audio
Enjoy crystal-clear, boardroom-filling audio thanks to two-way stereo speakers and advanced bass ports.
The tools you need
Leading cloud video apps are built right in.
High end optics
Life-like video with dual cameras, each with their own 4K sensor.
Poly DirectorAl
Intelligent camera framing modes (group, people, and speaker) that keep meetings on track.
Privacy shutter
Enhanced security with lightning-fast motorized, integrated electronic privacy shutter.
Simple management
Easy management with Poly Lens ensures high uptime and provides advanced analytics.
Noise blocking innovations
Keep distracting noise and outside conversations from disrupting your meeting with Poly NoiseBlockAl and Acoustic Fence.
Boardroom filling stereo sound
Two-way stereo speakers, aluminum cone tweeters, and advanced bass ports.
Advanced microphone design
Unique second order gradient microphones pick up all corners of the room with incredible clarity.
Join the way you want
Connect to nearly any cloud video service using build-in cloud video apps, the Poly Video App, or directly from a PC.
We work everywhere you do
Poly Studio X70 is compatible with leading collaboration platforms.
Certified for Microsoft Teams
Certified for Zoom
Certified to work with Google Meet
Poly Lens software
Empower IT with intelligent insights and scalable management to make the most of your deployment.
Poly Lens Admin Cloud
Poly Lens software gives IT teams visibility and control over Poly devices. Deploy, configure, update, and get valuable insights from one endpoint or thousands, using one scalable platform.
Poly Lens App
Use a convenient app to keep software up to date, manage device settings, and use wellbeing reminders to keep focused and energized all day long.
