New Arrival

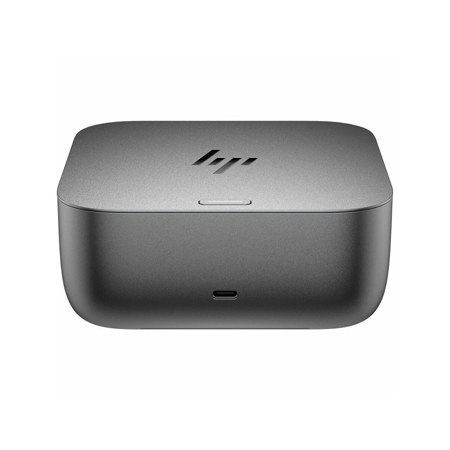

HP Thunderbolt 4 Ultra 280W G6 Dock, TAA Compliant

SKU: IHAW5N3AA MFR: AW5N3AA#ABA
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer speeds with Thunderbolt 4, ensuring efficient workflow for creative professionals.
  • Connect multiple displays for an expansive workspace, supporting up to four external monitors for enhanced productivity.
  • Power your devices effortlessly with 280W power delivery, keeping your laptop and peripherals charged.
  • Enjoy versatile connectivity options, including USB-C and HDMI, for all your essential devices and accessories.
  • Benefit from robust security features like HP Wolf Security, safeguarding your data and network connections.
  • Achieve seamless network integration with 2.5 GbE RJ-45, providing stable and fast internet access.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HP Ultra G6 Dock Specifications

  • Color

    Gray

  • Port and connectors

    Front:
    1x USB Type-C 10Gbps signaling rate (up to 15 W USB Power Delivery)

    Right side:
    1x USB Type-A 10Gbps signaling rate (charging)
    1x nano security lock slot
    1x USB Type-C 10Gbps signaling rate (up to 15 W USB Power Delivery)

    Left side: 2x USB Type-A 10Gbps signaling rate (charging)

  • Port and connectors (Contd.)

    Rear:
    1x Thunderbolt 4 with USB Type-C 40Gbps signaling rate
    1x USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort 1.4)
    2x USB Type-A 5Gbps signaling rate (charging)
    1x HDMI 2.1
    2x DisplayPort 1.4
    1x RJ-45 (2.5 GbE)

  • Physical security

    1x nano security lock slot

  • Connection type

    Thunderbolt 4 and 4.5mm power barrel

  • Security management

    HP Wolf Security for Business
    HP Sure Start
    System network manageability in any power state (HP with HP)

  • Certified collaboration software

    Intel Thunderbolt 4

  • Power supply

    330W external power adapter

  • Power to system

    Up to 280W via 4.5mm power barrel or up to 180 W via Thunderbolt 4 cable (both HP and non-HP host devices that support Power Delivery 3.1)

  • Power delivery (PD) profiles

    12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A

  • Current (max)

    6.15 A

  • Operating voltage

    19.5 V

  • Manageability features

    HPCMSL
    Disconnected Firmware updates
    eTag
    PXE Boot
    Wake on LAN (from the Off, Sleep or Hibernation states)
    MAC address pass-through (from the On, Off, Sleep or Hibernation states)
    LAN/WLAN switching
    Disable LAN
    Event messaging
    Intel vPro Technology (wired

  • Resolution (maximum)

    360Hz

  • Resolutions supported

    Non-Thunderbolt with multi-function PCs: 4x QHD (2560 x 1440 @ 60Hz), 3x FHD (1920 x 1080 @ 60Hz), 2x QHD (2560 x 1440 @ 60Hz),1x 5K (5120 x 2880 @ 60Hz), 1x FHD (1920 x 1080 @ 360Hz)

    Non-Thunderbolt with high-resolution PCs: 4x 4K (3840 x 2160 @ 60Hz), 3x QHD (2560 x 1440 @ 60Hz), 2x 4K (3840 x 2160 @ 60Hz), 1x 5K (5120 x 2880 @ 60Hz), 2x FHD (1920 x 1080 @ 360Hz); 1x QHD (2560 x 1440 @ 360Hz)

  • Resolutions supported (Contd.)

    Thunderbolt with dual DisplayPort streams: 4x 4K (3840 x 2160 @ 60Hz), 3x QHD (2560 x 1440 @ 60Hz), 2x 4K (3840 x 2160 @ 60Hz), 1x 5K (5120 x 2880 @ 60Hz)

    Thunderbolt with single DisplayPort stream: 4x 4K (3840 x 2160 @ 60Hz), 3x QHD (2560 x 1440 @ 60Hz), 2x 4K (3840 x 2160 @ 60Hz), 1x 5K (5120 x 2880 @ 60Hz)

  • Refresh rate (maximum)

    Up to 8K

  • Cable length

    3.2' (1m)

  • External monitor support

    Up to 3 external displays and 1 PC display or up to 4 external displays

  • Power button type

    Mechanical power button with RGB LED indicator to power or wake host system

  • LED

    Front LED bar: RGB LED (white, blue, amber, green, red)
    Power button: RGB LED (white, blue, amber, green, red)

  • Cable type

    1x Thunderbolt 4 cable and a 4.5mm power barrel to connect to host system

  • Drivers included

    Intel NIC driver; Realtek NIC driver(ARM); Realtek NIC driver(Windows)

  • Supported operating systems

    Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS

  • System Requirements, Minimum

    USB Type-C (USB Power Delivery, Alt Mode DisplayPort); Thunderbolt 4 port

  • Sustainable impact specifications

    35% post-consumer recycled plastic

  • Operating temperature range

    32 to 95 Degree F (0 to 35 Degree C)

  • Non-operating temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Operating altitude

    -49.2 to 10,000'

  • Non-operating altitude

    -49.2 to 40,000'

  • Operating humidity range

    10 to 90% non-condensing

  • Non-operating humidity range

    5 to 95% non-condensing

  • Country of Origin

    Mexico

  • Dimensions (W x D x H)

    4.76 x 4.76 x 1.95" (12.09 x 12.09 x 4.9cm)

  • Weight

    1.7 lbs (771g)

  • UPC Code

    198701753261

About HP Ultra G6 Dock

Supercharge your workflow
Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 280W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.

Powerful connections in an instant
Find true momentum with uninterrupted connections to your devices. Stay in your flow all day with up to 280W of power delivery and 40 Gbps of data transfer speeds via Thunderbolt 4 technology and all the ports you need to connect your setup.

Everything, secured
Prevent potential threats with HP Wolf Security , interlacing HP Sure Start to provide complete end-to-end security. Work and rest easy knowing your dock is protected.

Sustainability in action - Built to last
Thoughtfully designed with longevity in mind. Durably crafted with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Consciously wrapped in plastic-free packaging.

More Ports. More Flexibility
More ports means more capabilities. With a TBT4, USB-C DP Alt. Mode, HDMI, RJ-45, two USB-C, two DisplayPorts, and five USB-A ports, you can connect all your devices.

Intuitive, compact design
Easily connect to your ports and declutter your desk with rear-facing USB-C cable connectivity, all in a compact design. A full suite of manageability tools Empower your IT to manage and track your docks by product name, serial number, and MACAddress from anywhere with the time-saving, easy to-use Electronic Tag (eTag) and HPCMSL management tools.

Wired Intel vPro
With Intel vPro Active Management Technology, authorized administrators can remotely access notebooks using wired connections, even if turned off, to make updates.

Compatible with myHP
Enable hardware and software innovations from HP with the myHP application. This single dashboard houses access to settings for your docking station and other devices.

HP Ultra G6 Dock Features

  • 280W power delivery and 40 Gbps Thunderbolt 4 speed
  • Multiple ports: TBT4, USB-C DP Alt Mode, HDMI, RJ-45, DisplayPort, USB-A
  • HP Wolf Security and HP Sure Start for end-to-end protection
  • Durable, replaceable parts with eco-friendly, plastic-free packaging
  • Rear-facing USB-C cable connectivity for a clean, compact setup

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience rapid data transfer speeds with Thunderbolt 4, ensuring efficient workflow for creative professionals.
  • Connect multiple displays for an expansive workspace, supporting up to four external monitors for enhanced productivity.
  • Power your devices effortlessly with 280W power delivery, keeping your laptop and peripherals charged.
  • Enjoy versatile connectivity options, including USB-C and HDMI, for all your essential devices and accessories.
  • Benefit from robust security features like HP Wolf Security, safeguarding your data and network connections.
  • Achieve seamless network integration with 2.5 GbE RJ-45, providing stable and fast internet access.

What's in the box:

  • HP Thunderbolt 4 Ultra 280W G6 Dock
  • 330W Power Adapter
  • Thunderbolt 4 and 4.5mm Power Barrel Combination Cable
  • Power Cord
  • User Manual
  • HP 3 Year Limited Warranty
