2024-02-06T20:18:42

Rated 4 out of 5

Server Grade hardware/software in a Workstation case with Desktop performance.

3 year warranty Two Nvme Slots Dual Channel Ram Seagate Barracuda 2.5in Drive (with extra 2.5in drive slot) Bunch of PCI slots. High quality case and decent keyboard. We bought 10 of these and they provide a satisfactory experience even on the 2.5in hard drive (Clean imaging was done to get top performance) You will need to buy a Display Port to whatever your monitor take cable so expect to spend $10 more.

Spencer T.

2022-08-17T20:00:00

Rated 5 out of 5

Not bad !

Nicely made machine , expandable , doesn't take up much room on the desktop , should run for years without problems . Using it for general office stuff , photo editing . Should have gotten the SD card reader , but tht's my problem , not HP's . You should know that aftermarket memory with big heatsinks will interfere with the drive cage , so plan accordingly.

1049

2022-07-16T20:00:00

Rated 5 out of 5

HP Z2 Small Form Factor G5 Workstation

Great buy, I really like the Core i7 processor, it is super-fast, the PC meets my needs.

JIMKNY

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP Z2 G5 Specifications

Operating System

Operating System

Jump to...
  • Operating System

    Windows 11 Pro (64-Bit)

Performance

Jump to...
  • Chipset

    Intel W480

  • Processor

    Intel Core i7-10700 (10th Gen)

  • CPU Socket

    LGA 1200

  • CPU

    2.9 to 4.8GHz 8-Core

  • L3 Cache

    16 MB

  • Memory Type

    3200 MHz DDR4

  • Total Installed Memory

    32GB

  • Memory Configuration

    2x 16GB (User-Replaceable)

  • Maximum Memory Capacity

    128GB

  • Memory Slot Type

    288-Pin DIMM

  • Memory Slots

    4 (2 Available)

  • Buffered Memory

    No

  • ECC Memory

    No

  • Graphics Type

    Dedicated

  • GPU

    NVIDIA Quadro RTX 3000 with 6GB GDDR6 VRAM

Storage and Expansion

Jump to...
  • Total Drive Bays

    1x 3.5" (External)
    1x 3.5" (Internal)
    1x 2.5" (Internal)
    1x Slim Optical Drive (External)

  • SSD Slots

    1x M.2 2280 PCIe 3.0 x4 (In Use)
    1x M.2 2280 PCIe 3.0 x4 (Available)

  • Total Installed Capacity

    512GB

  • Solid State Storage

    1x 512GB M.2 NVMe PCIe

  • PCI Expansion

    1x PCIe 3.0 x16 [x16 Mechanical]
    1x PCIe 3.0 x16 [x4 Mechanical]
    2x PCIe 3.0 x1 [x1 Mechanical]
    1x M.2 2230 (E-Key) x1 (Available)

  • Optical Drive

    None

  • Ports

    4x USB-A 3.1/3.2 Gen 2
    4x USB-A 3.0 / 3.1/3.2 Gen 1
    2x USB-A 2.0

  • USB Type-C

    1x USB 3.1 / USB 3.2 Gen 2

  • Display

    4x Mini DisplayPort 1.4a

  • Audio I/O

    1x 1/8" (3.5mm) Headphone/Microphone/Line Input/Output
    1x 1/8" (3.5mm) Line Output

  • Built-In Speakers

    None

  • Built-In Microphones

    None

  • Media/Memory Card Slot

    None

Communications

Jump to...
  • Ethernet

    1x RJ45 (Gigabit)

  • Wi-Fi

    None

  • MU-MIMO Support

    None

  • Bluetooth

    None

  • NFC

    No

Keyboard & Mouse

Jump to...
  • Keyboard

    USB Full-Size Keyboard with Number Pad

  • Pointing Device

    USB Mouse

General

Jump to...
  • Security

    Dedicated TPM Security Chip

  • Power Supply

    450 W with IEC

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 6 A

  • Operating Temperature

    40 to 95 Degree F (4 to 35 Degree C)

  • Operating Humidity

    10 to 85% (Non-Condensing)

  • Color

    Black

  • Dimensions

    13.3 x 12.1 x 3.95" (337.8 x 307.3 x 100.33mm)

  • Weight

    11.9 lbs (5.4kg)

About HP Z2 G5

FEATURED REVIEWS

Not bad !

By 1049

Nicely made machine , expandable , doesn't take up much room on the desktop , should run for years without problems . Using it for general office stuff , photo editing . Should have gotten the SD card reader , but tht's my problem , not HP's . You should know that aftermarket memory with big heatsinks will interfere with the drive cage , so plan accordingly.

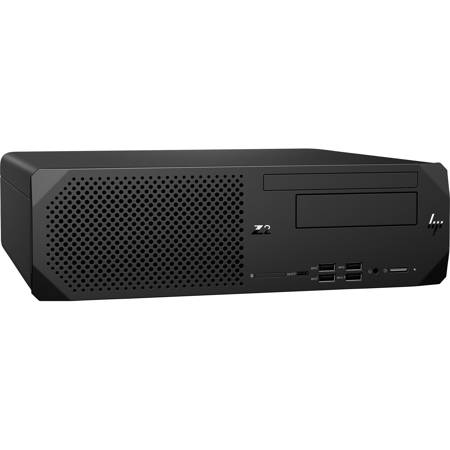

HP Z2 Small Form Factor G5 Workstation

By JIMKNY

Great buy, I really like the Core i7 processor, it is super-fast, the PC meets my needs.

HP's most powerful small form factor, reimagined.
Get high-end performance in a compact device. Completely redesigned to pack more graphics and processing into less space, you can easily take on complex 3D design projects. And with near endless configuration options, it's the ideal hardware when you need a custom solution

Performance that defies space constraints.
Get high-end professional graphics and an Intel processor in a small form factor. Re-engineered from the ground up, you get full, unthrottled performance for real-time rendering and faster visualizations.

Make it your own with our most customizable small form factor.
Build a system matched exactly to your needs with over a million possible configurations. And with customizable I/O ports, you can support new and legacy technologies, dynamic displays and even a second LAN without messy dongles or adapters.

We test it so you can trust it. 24/7.
We know you need performance you can rely on. That's why our products endure over 360K hours of rigorous testing, MIL-STD testing and software certifications.

Intel Core i7 processor
Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel Core i7 processor.

Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

NVIDIA Quadro Graphics
Experience high-end visualization and seamlessly render your biggest projects with the next generation NVIDIA Quadro RTX graphics; Certified and supported for the apps you use every day.

Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.

HP Z2 G5 Features

  • Unthrottled performance for real-time rendering and faster visualizations
  • Stunning new design features front and rear ledges, so you can easily move your system from location to location
  • Small Form Factor desktop compact size with reduced footprint, perfect for users with limited desk space
  • Features Latest 10th Gen Intel Core i7-10700 2.9GHz processor delivers outstanding performance
  • 16GB DDR4 RAM Memory Provides Enhanced multitasking and Improved performance
  • 512GB SSD gives significantly faster speed and improved overall system responsiveness
  • Efficiently manage multi-tasking with Windows 11 Pro, also provide performance & stability to your device
  • Wi-Fi enables faster internet speeds and improved network performance

Product Documents

User Manual

Key Features

  • Unthrottled performance for real-time rendering and faster visualizations
  • New design features front/rear ledges,so you can easily move your system from location to location
  • SFF desktop compact size with reduced footprint, perfect for users with limited desk space
  • Features Latest 10th Gen Intel Core i7-10700 2.9GHz processor delivers outstanding performance
  • 16GB DDR4 RAM Memory Provides Enhanced multitasking and Improved performance
  • 512GB SSD gives significantly faster speed and improved overall system responsiveness

What's in the box:

  • HP Z2 G5 Small Form Factor Workstation (Black)
  • USB Keyboard
  • USB Mouse
  • Power Cord
  • Wolf Pro Security Edition Software License (1 Year)
  • HP 3 Year Limited Warranty
