HP RP5800-SFF Specifications

Chipset

Chipset

Jump to...
  • Chipset

    Intel Q67 Express

Processors

Jump to...
  • Processors

    Intel Second Generation Core i5 processors:
    Intel Core i5-2400 processor (3.10 GHz, 6MB cache, 4 cores/4 threads)
    Intel Stable Image Platform Program (SIPP)
    Support Intel vPro technology

  • Processors Speed

    Base: 3.1 GHz
    Turbo: 3.4 GHz

  • Size

    8 GB

  • Type

    DDR3 synchronous DRAM non-ECC system memory
    Supports non-ECC DDR3 PC3-10600 (1333 MHz) and PC3-8500 (1066 MHz) memory

  • Maximum Memory

    Supports up to 16GB of DDR3 SDRAM using DIMM modules
    Slot 1 is black and must always be populated

Data storage drives

Jump to...
  • Solid state drive

    256GB SSD

I/O ports

Jump to...
  • USB 2.0

    Front: Two, covered
    Rear: Five
    One powered USB, 24 V
    Two RS-232 (power configurable) ports standard (serial)
    One parallel port available as an option
    One eSATA port available as an option
    Two RS-232 powered configurable ports, optional (for a total of 4)
    Two USB+ PWR 12 V cards, optional (three 12 V USB+ PWR per card) for a total of 6

  • PS/2

    One color-coded support for keyboard (purple)
    One color-coded support for mouse (green)
    One RJ-11 cash drawer port

  • Video

    One VGA
    One DisplayPort v1.1a
    Provides integrated dual independent monitor support
    DVI output available via optional DisplayPort to DVI adapter

  • Audio

    Rear: Line input (supports microphone or line input) and line out
    All ports are 3.5 mm in diameter
    One RJ-45 (NIC) port

  • Two full-height slots

    PCI: Two each: 4.2" full height, 6.6" length, 25 W maximum power
    PCIe x1: Two each: 4.2" full height, 6.6" length, 10 W maximum power
    (with a choice of either)

  • Two half-height slots

    PCIe x1: One each: 2.5" low profile, 6.6" length, 10 W maximum power
    PCIe x16: One each: 2.5" low profile, 6.6" length, 75 W maximum power

  • External

    1 each 5.25", 5.7" depth

  • Internal hard disk drive

    2 each 3.5"

Controllers

Jump to...
  • Hard drive

    SATA
    Supports up to SATA 6 Gb/s

  • SATA interfaces

    One SATA 2.0
    Two SATA 3.0

  • Host SATA

    Advanced Host Controller Interface (AHCI) revision 1.2

Network interface connections

Jump to...
  • Network interface connections

    Intel 82579LM (integrated) GbE network connection
    Intel PRO 1000 CT GbE NIC card (PCIe x1) (optional)

Communications

Jump to...
  • Communications

    HP WLAN NIC 802.11 b/g/n PCIe card
    2006 LSI PCIe x1 56K international SoftModem (optional)

Graphics

Jump to...
  • Card

    Intel HD graphics (integrated)

  • Adapter

    HP DisplayPort to DVI-D adapter
    HP DisplayPort to HDMI adapter
    HP DisplayPort to VGA adapter

Multimedia

Jump to...
  • Multimedia

    High-definition audio with Realtek ALC261 codec (all ports are stereo)
    Line-out and line-in rear ports (3.5 mm)
    Internal speaker (standard)

Input/output devices

Jump to...
  • Keyboard

    HP PS/2 standard keyboard
    HP USB standard keyboard
    HP USB mini keyboard
    HP USB and PS/2 washable keyboard

  • Mouse

    HP PS/2 optical mouse
    HP USB optical mouse
    HP USB laser mouse
    HP USB and PS/2 washable mouse

Electrical

Jump to...
  • Power supply

    240 W (EPA90 power supply, active PFC)

  • Operating voltage range

    90-264 V ac

  • Rated voltage range

    100-240 V ac

  • Rated line frequency

    50/60 Hz

  • Operating line frequency range

    47-63 Hz

  • Rated input current

    4 A (Efficiency 87/90/87% at 20/50/100% load)

  • Power supply fan

    80 mm variable speed fan

  • ENERGY STAR compliant

    ENERGY STAR 5.0 compliant

  • Power cord length

    6.0' (1.83m)

  • Current leakage (NFPA99)

    Less than 275 micro A

Environmental

Jump to...
  • Temperature range

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Non-operating: -22 Degree to 149 Degree F (-30 Degree to 65 Degree C)

  • Relative humidity

    Operating: 10% to 90%, non-condensing at ambient
    Non-operating: 0% to 95%, non-condensing at ambient

  • Maximum altitude (unpressurized)

    Operating: 10,000' (3048m)
    Non-operating: 30,000' (9144m)

Safety Certifications

Jump to...
  • Eco-label certifications & declarations

    US Energy Star
    IT ECO declaration
    EPEAT Gold where HP registers commercial desktop products

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • System volume

    13.0 L (782.77 cu. in)

  • Dimensions (H x W x D)

    Chassis: 3.95 x 13.3 x 14.9" (100 x 338 x 379mm)
    Tower stand: 1.1 x 7.0 x 7.9" (29 x 178 x 200mm)

  • Weight

    System: 15.08 lbs (6.84kg)
    Maximum supported (desktop orientation): 77 lbs (35kg)

  • UPC Code

    825633531857

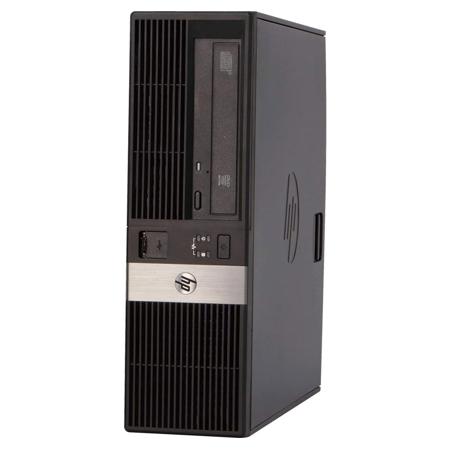

About HP RP5800-SFF

HP RP5800 Point of Sale System has UEFI BIOS developed and engineered by HP for better security, manageability, and software image stability. It has 90% high efficiency energy saving power supply.

HP RP5800-SFF Features

  • Intel Core i5-2400 3.1GHz

Key Features

  • Intel Core i5-2400 3.1GHz

What's in the box:

  • RP5800-SFF Desktop Computer
