HP DesignJet Studio Steel Large Format Printer,36" Color Inkjet Plotter,Wireless
See all HP items

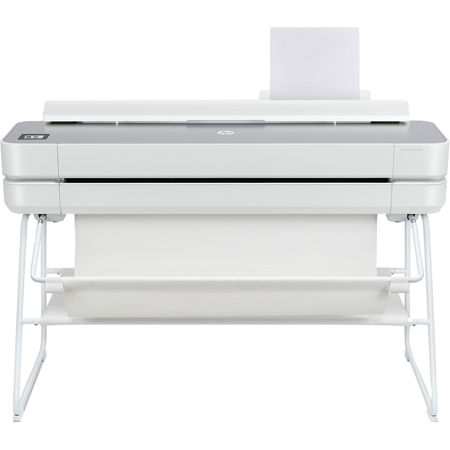

HP DesignJet Studio Steel Large Format Printer, 36" Color Inkjet Plotter, Wireless

SKU: IHPDJS36
(4)

This item is no longer available.

Recommended Alternatives

HP M234dw: Picture 1 regular
HP LaserJet MFP M234dw Wireless Duplex Multifunction Monochrome Laser Printer
$254.28$239.00
HP M776dn: Picture 1 regular
HP M776dn Color LaserJet Enterprise Flow Multifunction Printer, 550 Sheet Tray
$6,049.00
HP M776z: Picture 1 regular
HP M776z Color LaserJet Enterprise Flow Multifunction Printer, 2x 550 Sheet Tray
$8,659.00
HP M856dn: Picture 1 regular
HP M856dn Color LaserJet Enterprise Printer, 550 Sheet Standard Input Tray
$4,639.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum print width of the DesignJet Studio Steel Large Format Printer?

The DesignJet Studio Steel Large Format Printer can print on media up to 36 inches wide.

What is the resolution of this printer?

The DesignJet Studio Steel Large Format Printer has a high resolution of 2400 x 1200 dpi for sharp and vibrant prints.

What are the connectivity options for this printer?

The printer offers a wide range of connectivity options including Ethernet, HP ePrint, USB, and Wi-Fi.

Is this printer compatible with the HP Smart app?

Yes, this printer is compatible with the HP Smart app, allowing you to print your jobs and manage your plotter from virtually anywhere, anytime.

What makes the DesignJet Studio Steel Large Format Printer eco-friendly?

The DesignJet Studio Steel Large Format Printer is the first net carbon neutral HP DesignJet plotter, making it a more environmentally responsible choice.

Reviews about this item

Review Summary

2024-12-21T19:00:00

Rated 5 out of 5

HP Designjet Studio

Very easy use

Dumaine

2024-05-24T20:00:00

Rated 5 out of 5

HP large printer

Very nice printer

LUK C.

2023-09-25T20:00:00

Rated 1 out of 5

Warranty not connection to account.

3 year warranty offer with purchase but didn't transfer to account. Called HP but they were unable to help. Frustrated.

69Sailor

2021-04-29T20:00:00

Rated 5 out of 5

Great design easy to use

Love my DesignJet Studio. Easy set up and wireless! Highly recommend.

DrywallPartners

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

HP DesignJet Studio Steel Specifications

Print

Print

Jump to...

  • Print Speed

    25 sec/page on D, 82 D prints per hour

  • Print Resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink Types

    Dye-based (C, M, Y); pigment-based (K)

  • Page Yield

    20 ml of ink yields 101 A1/D pages, taking into account maintenance routines

  • Ink Drop

    5.5 pl (C, M, Y); 12 pl (K)

  • Printheads

    1 (cyan, magenta, yellow, black)

  • Printhead Nozzles

    1376

  • Line Accuracy

    +/-0.1%

  • Minimum Line Width

    0.0008" (0.02mm)

  • Max Optical Density

    8 L min/2.10 D

Media

Jump to...

  • Handling

    Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

  • Roll size

    11 to 36" (279 to 914mm)

  • Sheet Size

    Auto Sheet Feeder: 8.3 x 11 to 13 x 19"(210.82 x 279.4 to 330 x 482.6mm)
    Manual Feed: 8.3 x 11 to 36 x 74.7" (210.8 x 279.4 to 914 x 1897mm)

  • Standard Sheets

    Auto sheet feeder: A, B
    manual feed: A, B, C, D, E

  • Grammage

    60 to 280 g/sq.m (roll/manual feed); 60 to 220 g/sq.m (auto sheet feeder)

  • Thickness

    Up to 11.8 mil

  • Applications

    Line drawings; Presentations; Renderings

  • Memory

    1 GB

  • Hard disk

    None

Connectivity

Jump to...

  • Interfaces

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11

  • Print languages (standard)

    HP-GL/2, HP-RTL, CALS G4, JPEG, URF

  • Drivers

    Raster driver for Windows and macOS

  • HP Software and Solutions

    HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

  • Remote Print Enabled

    Yes

  • One-Click Multi-Size Printing

    Yes

Environmental ranges

Jump to...

  • Recycled Plastic in Printer

    10%

  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating Humidity

    20 to 80% RH

  • Operating Altitude

    Up to 9843'

  • Storage Temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

Acoustics

Jump to...

  • Sound Pressure

    42 dB(A) (operating), <16 dB(A) (idle)

  • Sound Power

    >5.8 B(A) (operating), <3.4 B(A) (idle)

Power

Jump to...

  • Consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1200 mA max

Certification

Jump to...

  • Safety

    USA and Canada (CSA certified)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)

  • Environmental

    ENERGY STAR; WEEE; ErP

Physical

Jump to...

  • Dimensions (w x d x h)

    51.9 x 21.9 x 36.7" (1317 x 555 x 932mm)

  • Weight

    91.9 lbs (41.7kg)

Other

Jump to...

  • UPC Code

    194850665660

18 Accessories for HP DesignJet Studio Steel Large Format Printer, 36" Color Inkjet Plotter, Wireless

  • All Accessories (18)
  • Ink (8)
  • PrintHead (1)
  • Cables & Adapters (3)
  • Printer Paper (6)
HP 712 29ml Cyan DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
HP 712 29ml Cyan DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
$42.00
Recommended
HP 712 29ml Magenta DesignJet Ink Cartridge for T650/T630/T230/T210/Studio
HP 712 29ml Magenta DesignJet Ink Cartridge for T650/T630/T230/T210/Studio
$42.00
Recommended
HP 712 29ml Yellow DesignJet Ink Cartridge for T650/T630/T230/T210/Studio
HP 712 29ml Yellow DesignJet Ink Cartridge for T650/T630/T230/T210/Studio
$42.00
Recommended
HP 712 38ml Black DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
HP 712 38ml Black DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
$50.00
Recommended
HP 712 80ml Black DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
HP 712 80ml Black DesignJet Ink Cartridge for T650/T630/T230/T210/Studio Plotter
$81.00
Recommended
HP 712 29ml Yellow DesignJet Ink Cartridge for T650/T630/T230/T210, 3-Pack
HP 712 29ml Yellow DesignJet Ink Cartridge for T650/T630/T230/T210, 3-Pack
$91.90
HP 712 29ml Cyan DesignJet Ink Cartridge for T650/T630/T230/T210/Studio, 3-Pack
HP 712 29ml Cyan DesignJet Ink Cartridge for T650/T630/T230/T210/Studio, 3-Pack
$91.90
HP 712 29ml Magenta DesignJet Ink Cartridge for T650/T630/T230/T210, 3-Pack
HP 712 29ml Magenta DesignJet Ink Cartridge for T650/T630/T230/T210, 3-Pack
$92.00
HP 713 DesignJet Printhead Replacement Kit
HP 713 DesignJet Printhead Replacement Kit
$306.00
Comprehensive 10' Cat6 550 MHz Snagless Patch Cable, Black
Comprehensive 10' Cat6 550 MHz Snagless Patch Cable, Black
$7.19
C2G Cables to Go 5m (16.40') USB 2.0 A/B Cable, Black
C2G Cables to Go 5m (16.40') USB 2.0 A/B Cable, Black
$8.49
HP Universal Matte Bond Inkjet Paper, 80 g/m2, 4.2 mil, 24"x150' Roll
HP Universal Matte Bond Inkjet Paper, 80 g/m2, 4.2 mil, 24"x150' Roll
$30.99

About HP DesignJet Studio Steel

FEATURED REVIEWS

HP Designjet Studio

By Dumaine

Very easy use

HP large printer

By LUK C.

Very nice printer

Take your printing projects to the next level with the DesignJet Studio Steel Large Format Printer, a perfect blend of design and performance. This 36" Color Inkjet Plotter is not just a printer, but a statement of style and technology that stands out in any setting.

Experience the ease of setting up this advanced printer using your smartphone, making it a truly wireless device. As the first net carbon neutral HP DesignJet plotter, it's a choice that's as good for your business as it is for the environment.

Enjoy the extreme simplicity of this versatile printer. It's capable of automatically printing multi-size A3/B and A0/E projects without the need for manual media source switching. With the world's easiest job submission, you can send multiple files in one click using the HP Click software. Print with confidence, knowing that the intuitive driver and true print preview will deliver the results you expect.

This reliable printer is designed to fit the way you work. High-speed printing capabilities mean you won't be left waiting by the printer, with an impressive speed as fast as 25 seconds per A1/D plot. Boost your productivity by printing your projects up to 2x faster, saving time from job prep to final print.

With the HP Smart app, you can print your jobs and manage your plotter from virtually anywhere, anytime. The high-quality results are ensured by HP Bright Office Inks, which plot up to 31% more line accuracy and up to 65% more gamut.

The DesignJet Studio Steel Large Format Printer is a durable, high-quality, and advanced solution for all your large format printing needs.

HP DesignJet Studio Steel Features

  • Fits the way you live
  • Extreme simplicity
  • Fits the way you work

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Advanced 36" Color Inkjet Plotter for high-quality, large format printing
  • Wireless setup via smartphone for seamless connectivity
  • First net carbon neutral HP DesignJet plotter, combining performance and eco-friendliness
  • Automatic multi-size printing with HP Click software for easy job submission
  • High-speed printing capabilities, delivering results as fast as 25 seconds per A1/D plot
  • Integrated with HP Smart app for remote job management and printing from anywhere, anytime.

What's in the box:

  • HP DesignJet Studio Steel 36" Wireless Large Format Color Inkjet Plotter Printer
  • Plotter Printer Stand
  • Automatic Sheet Feeder
  • Roll Cover
  • Printhead
  • Introductory Ink Cartridges
  • Spindle
  • Quick Reference Guide
  • Setup Poster
  • Power Cord
  • HP 1 Year Limited Warranty
