2019-04-22T20:00:00

Rated 5 out of 5

Great Plotter

I purchased this a month ago and have plotted 400 feet of 36" paper with a mixture of photos and text, it is quick and much quieter than my old HP Plotter. So far I am pleases with the purchase.

Mine P.

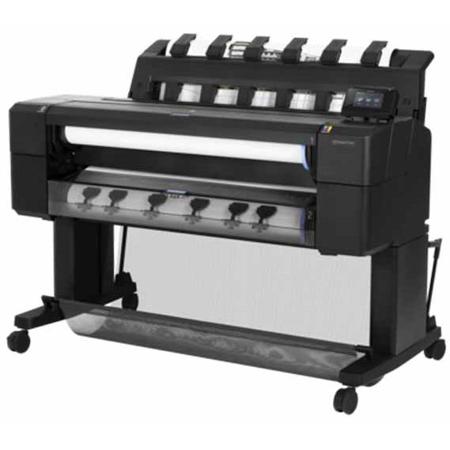

HP DesignJet T1530 Specifications

  • Line drawings

    21 sec/page on A1/D, 120 A1/D prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Margins (top x bottom x left x right)

    Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12")
    Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12")

  • Technology

    HP Thermal Inkjet

  • Ink types

    Dye-based (C, G, M, pK, Y); pigment-based (mK)

  • Ink drop

    6 pl (C, M, Y, G, pK); 9 pl (mK)

  • Printheads

    (C, G, M, mK, pK, Y)

  • Line accuracy

    +/- 0.1%

  • Minimum line width

    0.02 mm (0.0008 in) (HP-GL/2 addressable)

  • Guaranteed minimum line width

    0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))

  • Paper Handling

    Input: two automatic front-loading roll feeds, smart roll switching, sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter

  • Size

    Rolls: 279 to 914 mm (11 to 36")
    Sheets: 210 x 279 to 914 x 1219 mm (8.3 x 11 to 36 x 48")
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

  • Media types

    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

  • Media Sizes, Custom

    210 x 279 to 914 x 1219 mm

  • Thickness

    Up to 0.5 mm (19.7 mil)

  • Applications

    Line drawings, Renderings, Presentations, Maps, Orthophotos

  • Memory

    96GB (file processing) 500GB hard disk

  • Interfaces (standard)

    Gigabit Ethernet (1000 Base-T)

  • Printing languages (standard)

    PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, UR

  • Printing paths

    Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver

  • Drivers (included)

    HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux and Mac OS X

  • Operating temperature

    5 to 40 deg. C / 41 to 104 deg. F

  • Storage temperature

    -25 to 55 deg. C / -13 to 131 deg. F

  • Operating humidity

    20 to 80% RH

  • Sound pressure

    47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep))

  • Sound power

    6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)

  • Power consumption

    120 watts (printing); 1.3 watts sleep (5 watts with embedded Digital Front End)
    Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), Input Current 2 A max

  • Safety

    USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)

  • Electromagnetic

    Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

  • Environmental

    ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze

  • Dimensions (W x D x H)

    55.1 x 36.1 x 43.7" / 139.95 x 91.69 x 111.00cm

  • Weight

    194lbs / 88.00kg

  • UPC Code

    889296106333

35 Accessories for HP DesignJet T1530 36" PostScript Large Format Thermal Inkjet Photo Printer, 21sec/page Color, 2400x1200dpi

  • All Accessories (35)
  • Printer Accessories (1)
  • Printer Paper (5)
  • Cables & Adapters (4)
  • Cleaning Accessories (1)
  • Sample Pack (6)
  • Photo Paper (1)
  • Cutters & Trimmers (4)
  • Storage & Presentation (7)
  • Protectors (2)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)
  • Legacy Paper (1)
  • Copy Paper (1)

About HP DesignJet T1530

FEATURED REVIEWS

Great Plotter

By Mine P.

I purchased this a month ago and have plotted 400 feet of 36" paper with a mixture of photos and text, it is quick and much quieter than my old HP Plotter. So far I am pleases with the purchase.

You can look to this printer to boost workgroup performance. Impress clients with professional quality. Work quickly and effectively with features that enable efficiency and productivity. Secure your information and manage the printer easily.

Quality-Your projects, presented at their best
• Six Original HP inks produce a wide color gamut ideal for color graphics
• Original HP gray and photo black inks achieve precise line accuracy, dark blacks and true neutral grays
• Make your architectural prints shine with professional, high-resolution graphics- opt for Adobe PostScript
• Communicate with precision-produce plans, drawings and maps with fine line quality and up to 2400 dpi

Productivity-Ease, efficiency empower workgroups
• Stay organized and on task-the integrated 50-page output stacking tray delivers flat, collated prints
• Two rolls help save time-easy front loading, automatic alignment; two media types/sizes, smart switching
• Print complex files fast - one A1 in 21 sec (120 A1 per hr), 500 GB hard drive, parallel processing power
• Improve workgroup efficiency using the job center-manage job queues and job storage, track print costs

Security-Enterprise compatible, IT manageable
• Enable highly unattended printing with two 300-ft (91.4-m) rolls and Original HP ink cartridges up to 300 ml
• Safeguard information with security protocols like IPSec, 802.1x, SNMPv3, PIN printing and other options
• Easily configure/manage your printer with HP Embedded Web Server or the HP printer fleet with HP Web Jetadmin
• Integrates easily with your other office devices-iOS and Android compatibility with HP Mobile Printing

What's in the box:

  • HP DesignJet T1530 36" PostScript Large Format Thermal Inkjet Printer
  • Print Head
  • Introductory Ink Cartridges
  • Stacking Tray
  • Printer Stand and Media Bin
  • Spindles
  • Quick Reference Guide
  • Setup Poster
  • Start-Up Software
  • Power Cord
  • HP 2 Year Limited Warranty
