Questions & Answers

Tanya D : Can this scan drawings?GORDON D : no
Shopper : Will it print onvinyl?
Shopper : Why Did You Choose This?GREG L : price and size matterGORDON D : I have used HP plotters for more than 30 years.STEVE G : HP printers have been good to me.

Reviews about this item

Review Summary

2021-03-24T20:00:00

Rated 2 out of 5

It prints sometimes

I?ve had it about a year and from day one it never printed 36? wide, just 24? despite hours and hours of tech support ?help?. No big deal just annoying and could?ve saved a lot just ordering a 24 and also wasted lots on useless paper. It?s unreliable with Mac I think, I find myself just going to the copy store more often then printing out plans with it.

Timha

2020-09-22T20:00:00

Rated 3 out of 5

Fast printing with poor stacking

I brought this printer 15 days ago. Extremely easy to assembly and get running.Very impressed with the spend of printing, however very disappointed with the 'bin' design for retrieving prints, as they simply fall, curled up, into the bin. The time saved on printing is lost when you have to assemble those curled up drawing. I generally print 2-3 sets at one time but not with this plotter.

MSR D.

2020-09-14T20:00:00

Rated 5 out of 5

Works as described

Still new haven't put thru heavy printing, but test plots are as expected.

Plot 0.

2020-09-10T20:00:00

Rated 5 out of 5

FAST PRODUCT

I AM SO HAPPY WITH MY NEW SESIGNJET PRODUCT, IT IS VERY FAST. I LOVE IT

LUISW1

2020-09-02T09:17:18

Rated 5 out of 5

Met all expectations

It is great to access my printer from my laptop in another room! Pictures have good color quality as well. So far I am very satisfied.

JANET S.

2020-08-23T08:27:29

Rated 5 out of 5

New Plotter

Easy to install. Easy to add to network. Great plots.

GORDON D.

2020-08-17T20:00:00

Rated 5 out of 5

Great Features, Great Price.

I bought the Design Jet T530 a month ago to replace a Design Jet 750c that gave it up and that I couldn't get drivers for and it works perfectly. Really clean plots with very good resolution.

kaos3k

2020-08-16T20:00:00

Rated 5 out of 5

This is my 3rd Plotter in 18 years - great!

This is my 3rd Plotter in 18 years and this new HP T530 Plotter works great and fast! A a very nice and affordable addition to the Home Office. It will be the new workhorse, printing hunderds of 24x36 prints per year.

Finlay L.

2020-08-14T20:00:00

Rated 4 out of 5

Nice features

Took delivery the other day. Physical set-up of the machine was straight-forward and rather easy. Built-in Wi-Fi search connected to my network quickly; downloading the driver was simple.Ran the first plot yesterday, clean crisp lines and details; automatic cutter cut straight clean edge. However, needs to have a better 'bin' design for retrieving prints, as they simply fall,curled up, into the fabric 'bin'. There should be a flat, rigid recieving tray, at least as an optional accessory.

Bill O.

2020-08-05T20:00:00

Rated 5 out of 5

Smooth Printing!

Very easy to install and get it ready to print on a paper roll. Prints quick. Definitely getting my money’s worth

HomeBuilder_TheOriginal

2020-08-03T20:00:00

Rated 3 out of 5

Frustrating paper size

We've had this in our engineering office for about a month now, replacing our DesignJet 111. We have several 24" wide rolls of paper that we wanted to use up before we switched to the 36" rolls. Trying to get the plotter to plot the correct direction, in the correct location, etc. was incredibly frustrating. Even with the plotter set to autorotate, it would screw things up and plot the wrong direction, cutting off the drawing. This plotter's software leaves a LOT to be desired.

CivilUnrest

2020-08-02T20:00:00

Rated 5 out of 5

Great printer.

I bought a HP T530 24" printer. Very nice machine that performs like it should. It was very easy to setup and get going.

Joel28

2020-07-28T20:00:00

Rated 3 out of 5

Surprised

The price was right however it shipped later than promised . I can understand it is due to the pandemic , The biggest surprised , when went to install it , it already had a recall so we had to wait another week for a technician to come and repair it. Frankly I am not the person who uses it so I don't have a review of the actual performance yet

Lighting M.

2020-07-25T20:00:00

Rated 5 out of 5

Easy Peasy!

I just started working with my new hp designjet printer today. It is wonderful. I used a larger hp designjet 800ps for years until the software was discontinued. So, I decided to buy this little guy, which had excellent reviews. It's quite smaller than my old plotter and it's far less complicated to operate. Another thing, even though I has a post script plotter before, this one is much quicker to load and print. The paper is also quite easy to change and it's quite light so it moves around easily, which I do quite a lot. I haven't had one day of trouble with my old plotter and I'm sure this one will do the job just as well, if not easier. As an added bonus, there is a sheet fed 11 x 17" tray. I'm delighted.

handsewing

2020-07-15T20:00:00

Rated 5 out of 5

Great Value

We have had our printer for a couple of weeks now and really like it. Set up on the printer was very easy. Once installed, we were up and printing with ease. It is so much faster than our old DesignJet (which lasted almost 10 years). This is a great unit for the price and we are happy we chose this printer.

Rodney O.

2020-07-05T20:00:00

Rated 5 out of 5

Easy to set up! Easy to use....

The printer asy to set up! The printer is easy to use. I also like the comparatively low price....

RBrookfield

2020-06-21T20:00:00

Rated 4 out of 5

Engineer

upgraded from a 25 yr old HP designjet 500. man this T530 is so much quieter and about 10 times faster putting prints out. only had it a week, but so far so good. setup and install was soooo easy. to compare to the old 500 plotter, i don't like the paper catch as much as the old one. the 500 would stack up the sheets as they came out, the newer paper catch lets them all fall in kind of a pile and they will get out of order, but it's not a big deal unless you print 10-15 pages and aren't there to keep them sorted. the cutter on the 530 leaves a bit of a wavy edge (it's a straight cut, but it's like it's moving a little too fast. i think there may be a correction for this though).

biga1229

2020-06-15T20:00:00

Rated 5 out of 5

Does everything I needed it to do

using the T530 all the time and it works great for all my drawings that need to be printed.

DJKY

2020-06-04T20:00:00

Rated 5 out of 5

New Printer

Recently purchased this to take over for the T120 we have. Well worth the upgrade. Printing time is much faster and the quality is excellent. We still have the T120, T130, and now this newly added T530.

dwatts

2020-05-17T20:00:00

Rated 5 out of 5

Good Investment

The printer is as fast as advertised. What most impressed me was the very thoughtful approach taken when they designed the shipping packaging and installation instructions. Having put together lot of products from printers to playgrounds, I was expecting to need help with the install be cause of the weight. They designed the packaging and instructions in a process that was easy to follow and install.

MWM1

2020-05-10T20:00:00

Rated 5 out of 5

High quality printer/plotter

I was impressed with the quality of this printer. It is a good improvement over the T520 24-in Printer. This printer is a breeze to assemble, install and begin using. This printer will be used primarily for printing blueprints in 1/4 = 1 scale on Arch D size prints. The improved speed of this printer over the previous model is noticeable. Of note the 24-in model does come with a paper roll spindle too.

Bullie64

2020-05-03T20:00:00

Rated 4 out of 5

like the over all style

I have not hooked it up yet, the only thing is most of your literature and photos it looks like there is a acrylic cover over the paper roll, (not) I'm concerned someone might get there fingers caught in the gears when printing.!!!!

rckk

2020-04-22T20:00:00

Rated 3 out of 5

Compact

I purchased this printer when my old pinter died. It's a nice compact printer however when I print the 24x36 drawings they all just fall into the catch tray. So now I have to sit there and take each sheet and lay over the catch bar.

LWOOD235

2020-03-19T20:00:00

Rated 5 out of 5

Great "little" printer

Fast shipping. Easy to assemble. Works as expected. Had problems on 2 computers out of 5 to install the driver software. Had to install "manually" by windows and choose the INF file. Time will tell if reliable or not. Just wished the added a second roller bar.

Robert Q.

2020-03-19T20:00:00

Rated 5 out of 5

Great Small Office Printer

I needed to replace my +5-year old second hand Designjet T1100 24" printer when it printed its last print. I'm a small architectural firm the doesn't print any larger than 24 x 36 prints. HP has many great options and I was tempted to go with a plotter scanner, but with the uncertainty in the world today, decided on the T530. The printer is quite compact, compared to the T1100 behemoth I replaced. The unpacking of the printer and assembly was quite easy, but be aware you need two people, or at least having some one help makes it easier. I had the printer unpacked, assembled and operating in about an hour and a half. The printer is wireless or network cable capable, but it seems you can only use it in one mode or the other, but not both, at least I haven't explored using the wireless while the network cable is plugged in. The one print I ran was sharp and the quality quite good, at least good enough for my purposes, mostly construction drawings. I purchased the printer directly from HP, and it was on sale. The printer was shipped promptly and arrived a day ahead schedule. I've owned a number of HP plotters and printers and I've always been pleased with their quality and ease of use. I chose the T530 over the T525 because of the additonal warranty, which I assumed is a higher quality machine in terms of quality control and durability.

yorg4

2020-03-15T20:00:00

Rated 5 out of 5

Wide Format Printer

I bought this printer over a month ago & it's perfect for my Hydraulic engineering business!! My work goes much faster, as U can print at work & not have to go to a print shop each time I need to print. Also, I'm saving a Lot of time & money in having g my own printer!!

Rex q.

2020-03-13T20:00:00

Rated 5 out of 5

Excellent quality print at the right price

I bought the printer after researching many in the market. I can print home plans all day long without having to wait for them from my previous printing vendor, saving me time and money.

Adesa2020

2020-03-08T20:00:00

Rated 5 out of 5

Quality fast drawings!

I am very pleased with the T530, it was easy to assemble and set up. In a matter of minutes I was printing drawing files. The speed it prints at is very fast compared to my past experiences printing drawing files. Printing on the 13x19 Super B is a very convenient added bonus for those quick working drawings.

PresleyCJD

2020-02-05T19:00:00

Rated 4 out of 5

fast printing, good quality

Much quicker than the older designjet series, smaller foot print also

rrambat

2019-12-06T19:00:00

Rated 5 out of 5

What A Good Product!

Wanted to get a decent 24" plotter for a while now. Called HP and they helped me chose the right one. Cant believe how fast it got delivered. I am on Maui, Hawaii and everything takes long to get to us, but not from HP. The printer exceeds my expectations, I love it! If i ever need a printer like this again I will definitely be giving HP a call.

Balthazar T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP DesignJet T530 Specifications

Print
  • Print speed

    30 sec/page on A1
    76 A1 prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2 (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink types

    Dye-based (C, M, Y); pigment-based (K)

  • Ink cartridges

    4 (C, M, Y, K)

  • Ink drop

    5.5 pl (C, M, Y); 12 pl (K)

  • Printheads

    1 (Cyan, Magenta, Yellow, Black)

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008" (0.02mm) (HP-GL/2 addressable

  • Handling

    Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

  • Sheet Size

    Input Tray: 8.3 x 11 to 13 x 19" (210 x 279 to 330 x 482mm)
    Manual Feed: 13 x 19 to 24 x 74.7" (330 x 482 to 610 x 1897mm)

  • Roll size

    11 to 24" (279 to 610mm) rolls

  • Grammage

    60 to 280 g/sq. m (roll/manual feed)
    60 to 220 g/sq. m (input tray)

  • Memory

    1 GB

Connectivity

Jump to...
  • Interfaces

    Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi

  • Print languages (standard)

    HP-GL/2, HP-RTL, JPEG, CALS G4

  • Mobile printing features

    Direct print from mobile apps on Android and Chrome OS; HP Smart app for iOS and Android

  • Drivers

    Raster driver for Windows

Software

Jump to...
  • Software Available

    HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app

Environmental Ranges

Jump to...
  • Operating Temperature

    41 Degree to 104 Degree F (5 Degree C to 40 Degree C)

  • Operating Humidity

    20 to 80% RH

Acoustics

Jump to...
  • Sound Pressure

    Operating: 45 dB(A)
    Idle: < 16 dB(A)

  • Sound Power

    Operating: 6.2 B(A)
    idle: < 3.4 B(A)

  • Consumption

    Printing: < 35 W
    Ready: < 6 W
    Sleep: < 4.5 W
    Standby: < 0.3 W

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1200 mA max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)

  • Environmental

    ENERGY STAR; WEEE; EU RoHS; REACH; EuP; EPEAT

Physical

Jump to...
  • Dimensions

    38.9 x 20.9 x 36.7" (987 x 530 x 932mm)

  • Weight

    75 lbs (34kg)

  • UPC Code

    193808354670

26 Accessories for HP DesignJet T530 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5ZY60A)

  • All Accessories (26)
  • Ink & Toner (8)
  • Printheads (1)
  • Installation Service (1)
  • Extended Warranty (2)
  • Cleaning Accessories (1)
  • Cutters & Trimmers (3)
  • Printer Paper (10)

About HP DesignJet T530

FEATURED REVIEWS

Great Features, Great Price.

By kaos3k

I bought the Design Jet T530 a month ago to replace a Design Jet 750c that gave it up and that I couldn't get drivers for and it works perfectly. Really clean plots with very good resolution.

High quality printer/plotter

By Bullie64

I was impressed with the quality of this printer. It is a good improvement over the T520 24-in Printer. This printer is a breeze to assemble, install and begin using. This printer will be used primarily for printing blueprints in 1/4 = 1 scale on Arch D size prints. The improved speed of this printer over the previous model is noticeable. Of note the 24-in model does come with a paper roll spindle too.

T530

Office & Budget Perfection With Free HP Click Software.

• Save space by placing the world's smallest plotters wherever they fit best using the built-in stand.
• Save time by connecting and printing right away with Wi-Fi capabilities
• Speed up your PDF printing process with free HP Click software

Office & Budget Perfection With Free HP Click Software.

User Friendly Setup & The HP Poster Web App.

• Save money by printing in-house with HP's most affordable plotters
• Easily access your files from cloud folders and print them using your smartphone with the HP Smart app
• Impress your clients with beautifully designed posters using the free and intuitive HP Poster Web app

User Friendly Setup & The HP Poster Web App.

Industry Standard Quality From HP.

• Get perfectly matched color on both small- and large-format prints thanks to the built-in A3/A4 tray
• Achieve precise details with up to 2400 dpi and original HP/GL-2 capability
• Convey your ideas with bold images, sharp lines on plain paper for any application with HP Bright Office Inks

Industry Standard Quality From HP.

Save space, time, and money with a compact Wi-Fi plotter and stand that let you print in-house, right away. Speed up the PDF printing process. Print from your smartphone with the HP Smart app. Get high quality and high speed.

Ideal for
Architect, engineering, and construction professionals who need to increase productivity with a compact plotter that can be moved around the office.

Media Sizes
8.3 to 24-in wide sheets; 11 to 24-in rolls

Media Handling
Sheet feed; roll feed; input tray; media bin; automatic cutter

Security Features
Meet growing needs with the world's smallest large-format plotters, the perfect fit for your office and budget. Get radically simple, high-quality, and time-saving printing to help you deliver on more projects and bigger challenges.

Connectivity / Mobile Printing
• Connectivity: Fast Ethernet (100Base-T); Hi-Speed USB 2.0; Wi-Fi.
• Mobile Printing: Direct print from mobile apps on Android and Chrome OS; HP Smart app for iOS and Android

Print Speeds
Up to 30 sec/page on A1/D

Software Included
HP Smart app; Easily print project sets and PDF documents with HP Click printing software; Create posters using free premium photos, graphics & patterns with HP Poster App; HP DesignJet Utility for Mac and Windows.

Why to Buy
Discover savings, from your office space to your budget, with the world's smallest plotters and built-in stands. With built-in Wi-Fi, you can also save time by connecting and printing right away. Save money with HP's most affordable plotters.

HP DesignJet T530 Features

  • 30 sec/page on A1, 76 A1 prints per hour
  • Dye-based (C, M, Y); pigment-based (K)
  • Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
  • Compliant with Class B requirements, including: USA (FCC rules)

Key Features

  • 30 sec/page on A1, 76 A1 prints per hour
  • Dye-based (C, M, Y); pigment-based (K)
  • Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
  • Compliant with Class B requirements, including: USA (FCC rules)

What's in the box:

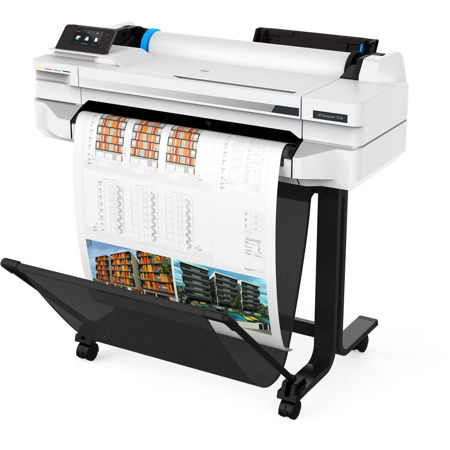

  • DesignJet T530 Large Format Wireless Plotter Printer (24 ")
  • Printer Stand
  • Printhead
  • Introductory Ink Cartridges
  • Quick Reference Guide
  • Setup Poster
  • Power Cord
  • HP 1 Year Limited Hardware Warranty
