Questions & Answers

Shopper : Why Did You Choose This?Lois U : Great output. Solid machine.

Reviews about this item

Review Summary

2024-10-27T20:00:00

Rated 2 out of 5

Not a great printer

It apparently does not have enough memory to send a file with multiple pages...very frustrating

Ffsl

2023-12-22T19:00:00

Rated 1 out of 5

Poor quality

Product came broken, poorly assembled at factory

Not s.

2023-11-29T19:00:00

Rated 4 out of 5

Catch tray needs some help.

The printer was easy to set up and prints nicely. We are printing 24" wide pages and agree with the other reviews that the paper output catch area is not great. The catch cloth is too loose and hangs too low allowing the pages to curl up and get out of sequence. We put a box underneath the cloth to raise up the catch area which seems to have solved the problem.

Skibetty

2023-09-22T20:00:00

Rated 5 out of 5

Great, easy to use plotter.

I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to print properly.

Village b.

2023-06-05T20:00:00

Rated 1 out of 5

Horrible Convoluted Garbage Plotter, do not buy.

You'd think a $7000 plotter would be programed to figure out how to print things on a sheet and not cut half of the print off. You'd think it'd allow you to print landscape from the roll to save paper. But no, everytime anyone in our office tried to print or scan anything on this plotter. It's a huge ordeal and I have to step in and fiddle with the printer properties to even get close to the print we want. Do not buy this plotter.

Jake13

2023-01-19T19:00:00

Rated 5 out of 5

Nice Printer for the money

Nice Printer for the money

bill

2023-01-11T19:00:00

Rated 1 out of 5

Arrived Broken

Trying this again since my previous review was deleted by HP. This printer arrived broken and three weeks later still not fixed.

Purchased 2.

2022-12-18T19:00:00

Rated 1 out of 5

Received broken/unusable.

Received broken/unusable. Header circuit board arrived installed crooked and not connected.

Received b.

2022-11-23T19:00:00

Rated 5 out of 5

Great machine, great value!

Wonderful machine so far! I just got it last week. This printer/scanner/copier does it all so well! Great value you for the money! I also have a Canon TX3000 large format in my NY office and it has been a piece of junk from the beginning so I really appreciate the quality of this machine!

R B.

2022-11-11T19:00:00

Rated 5 out of 5

Perfect for new engineering firm

Compact and. Perfect for small or home office. Very happy. I?ve only had for a few projects but so far extremely satisfied. It?s the perfect starter plotter as quality and features are all a professional needs, and only sacrifice would be speed for larger projects and E size sheets.

Bill P.

2022-11-09T19:00:00

Rated 1 out of 5

THE PRINTER DOES NOT WORK

I BOUGHT A BRAND NEW PRINTER. IT DOES NOT WORK IT WAS DELIVERED TWO WEEKS AGO . I AM STILL WAITING FOR HP TO FIX THE PRINTER.

EFH7

2022-10-27T20:00:00

Rated 3 out of 5

Almost there

everything setup easy and prints were accurate... days later had to make a quick print.... turned into a 30 minute ordeal. Still dreaming for a day when technology can keep up.

Adam Z.

2022-09-10T20:00:00

Rated 4 out of 5

So far easy to use.

So far it seems to be running good, only have had it for a short two weeks. It is a not as sturdy as we would like and runs a little slower than our previous machine. Don't like the fact that you cannot feed the next sheet in as the last sheet is finishing. Easy enough to use after you get used to it.

Designs

2022-07-24T20:00:00

Rated 1 out of 5

Great features, but VERY POOR DESIGN

i just purchased the T830 and has great features, but the paper tray at the bottom that catches the paper is a very poor design if you have to print more than 1 drawing. just have a huge pile of drawings at the bottom.

JC61

2022-05-02T20:00:00

Rated 2 out of 5

Automatic Cutter Problems

Great plotter for a small surveying business, but right after the year warranty ran out the automatic cutter quit working. It either never cuts, or it starts to cut and releases the cutter assembly halfway across the page, causing a paper rip/jam/crunch when the carriage assembly and paper feed continue doing their thing. The result? Ruined plot = wasted paper = wasted money. There also doesn't appear to be anybody even remotely close to our location in western NC who can repair this, and online troubleshooting and self-help is not product-specific.

NCPLS

2021-12-25T19:00:00

Rated 4 out of 5

Plotter

Seems to work great. Great quality, fast printing, wifi connection. The only thing i have noticed is that it doesn't wake up from sleep mode when you send a print. I?m sure its just a setting I need to find and adjust. Other than that, it works great.

Mitscher A.

2021-12-05T19:00:00

Rated 1 out of 5

Horrible Service

I purchased a new machine. It was delivered not working. Horrible service.

Architecture F.

2021-11-20T19:00:00

Rated 4 out of 5

Have to tend to the catch tray not productive

All in all the printer works fine. But the tray that accepts printed sheets does not allow the sheets to drop in neatly. This makes it tough to print plan sets as you have to stand at the machine and assist the pages to drop in correctly.

BREID

2021-11-08T03:00:55

Rated 5 out of 5

Small office solution.

The printer fits the need of my design company. We?ll worth the price and the wireless feature make it convenient.

Tracy D.

2021-09-06T20:00:00

Rated 5 out of 5

New Printer

Love it. Does so much more that our last printer and was very reasonably priced.

New P.

2021-08-05T20:00:00

Rated 5 out of 5

So easy, tech unsavvy people can do it!

This was an upgrade to our dying DesignJet 510 and what an upgrade it is! It's super fast with both prints and scans/copies. The price was on point and we just couldn't be happier!

Northwest T.

2021-06-29T20:00:00

Rated 5 out of 5

A great copy, scanner, and plotter all in one!

This is one of the best buys we have made in a long time. A great product without frills that we don't need.

Surveyor P.

2021-05-25T20:00:00

Rated 4 out of 5

Great features

I?ve had HP plotters for nearly 25 years. They have always been a product we could count on. We went with the design jet T830 (replacing our design jet T520) because of the additional features it offers, copy, scan, print, and color. We haven?t used all the features yet as we just received the unit a week ago. Set up was very easy. Everything came in the box as stated and delivered in good condition.

Randy145

2021-05-19T20:00:00

Rated 5 out of 5

great copier

I wish I had bought this a long time ago! Never have to go to Fed Ex again for copies! This fits right in my closet in my office, easy to set up and use, and prints beautifully.

happy b.

2021-05-01T20:00:00

Rated 1 out of 5

T-830

software does not work right out of the box many updates and new software

Hp o.

2021-04-28T20:00:00

Rated 5 out of 5

Should have bought it long time ago!

Couple glitches to get going but works great. Clear prints and not overly noisy.

MGLDC

2021-03-03T19:00:00

Rated 5 out of 5

Awesome printer!

We purchased this machine because our old unit was outdated, slow, and cost too much per page to print. The ink cost was outrageous! This unit has high capacity ink cartridges, it's fast, quiet, and all around awesome!

Dexter559

2021-02-28T19:00:00

Rated 5 out of 5

Great printer for a small business

Printer is the first large format printer for my small business. Its fast and prints very high quality. Its very easy to use and set up.

Bacchus B.

2021-02-07T19:00:00

Rated 5 out of 5

Better sooner than later

I should have purchased this long ago. It does it all in a compact, user friendly, well designed, and affordable format.

Cardillo A.

2021-02-03T08:24:16

Rated 5 out of 5

Great Plotter Very happy with my purchase

Arrived without incident. It was easy to setup and add to my network. The product works like a champ!

WILLIAM H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP DesignJet T830 Specifications

Print
  • Line drawings

    25 sec/page on A1/D, 82 A1/D prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Margins (top x bottom x left x right)

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Print technology

    HP Thermal Inkjet

  • Ink types

    Dye-based (C, M, Y); pigment-based (mK)

  • Printheads

    1 (C, M, Y, mK)

  • Line accuracy

    +/- 0.1%

  • Minimum line width

    0.0008" (0.02mm) (HP-GL/2 addressable)

  • Guaranteed minimum line width

    0.0028" (0.07mm) (ISO/IEC 13660:2001(E))

  • Handling

    Sheet feed, roll feed, input tray, media bin, automatic cutter

  • Weight

    60 to 280 g/m2 (roll/manual feed); 60 to 220 g/m2 (input tray)

  • Size

    Rolls: 11 to 36" (279 to 914 mm)
    Sheets: 8.3 x 11 to 36 x 74.7" (210 x 279 to 914 x 1897mm)
    Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

  • Scan speed

    Color: 1.5"/sec (up to 3.81 cm/sec)
    Gray scale: 4.5"/sec (up to 11.43cm/sec)

  • Scan/ copy resolution

    600 dpi

  • Maximum scan

    Size: 914mm x 2.77m (36x109)
    Thickness: 0.8 mm (0.03)

  • Reduction/ enlargement

    50 to 400%

  • Maximum copies

    Up to 99 copies

  • Copier settings

    Content type, Lighter/Darker, Background noise removal, Background color removal, Blue print invert, Translucent media, Color, Scan full width (36"), Auto De-skew, Resize, Copy Margins, Quality

Applications

Jump to...
  • Applications

    Line drawings, Renderings, Presentations

  • Memory

    1 GB

Connectivity

Jump to...
  • Interfaces (standard)

    Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0 certified connector

  • Print languages (standard)

    HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF

  • Printing paths

    Windows and Mac printer drivers, Apple AirPrint driver, print from USB pen drive

  • Mobile printing capability features

    Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing and scanning via HP ePrint, Apple AirPrint and HP All-in-One printer remote App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

  • Drivers (included)

    HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows

  • Software included

    HP Click printing software, HP DesignJet Utility for Mac and Windows

Environmental ranges

Jump to...
  • Operating temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Storage temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

  • Operating humidity

    20 to 80% RH

Acoustic

Jump to...
  • Sound pressure

    48 dB(A) (printing); < 16 dB(A) (sleep)

  • Sound power

    6.5 B(A) (printing); < 3.4 B(A) (sleep)

  • Power consumption

    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

  • Input voltage (auto ranging)

    100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), India (BIS)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

  • Environmental

    ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia and Ukraine

General

Jump to...
  • Dimensions (W x D x H)

    55.2 x 24.8 x 45.5" (140.21 x 62.99 x 115.57cm)

  • Weight

    137.8 lbs (62.51kg)

  • UPC Code

    889296887409

52 Accessories for HP DesignJet T830 Large Format Printer, 36" Color Inkjet Plotter, Wireless, Multifunction, Mobile Printing

  • All Accessories (52)
  • Ink & Toner (5)
  • Installation Service (1)
  • Printer Paper (21)
  • Extended Warranty (5)
  • Cables & Adapters (4)
  • Cleaning Accessories (1)
  • Cutters & Trimmers (4)
  • Storage & Presentation (7)
  • Protectors (2)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)

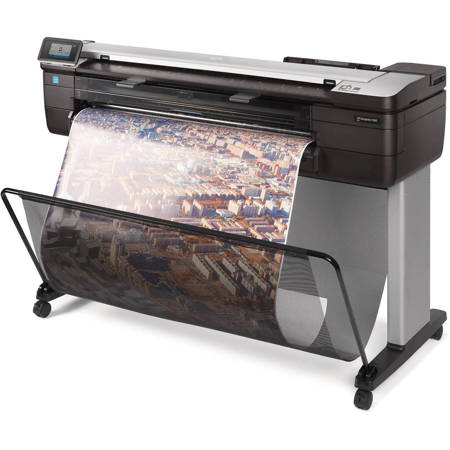

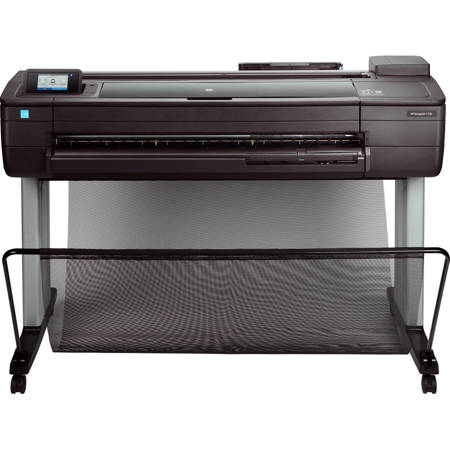

About HP DesignJet T830

FEATURED REVIEWS

Great Time Saver

By esecon

I've had my T830 since February, 2019, and it has already paid for itself. Prior to purchasing it, it would take a day and hundreds of dollars to complete my project. I first would drive to my Printing Office, 10 miles away, wait for a set of large format prints, then run them back to my office to mark them up. After that, I'd drive back to the printer to scan the plans in color onto a flash drive for a few hundred dollars more. Then, I'd drive back to the office to send out the scans. Now, I...

View full Review

Great, easy to use plotter.

By Village b.

I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to p...

View full Review

T830

Sturdy, Intelligent Design.

• Half the size, built to last-this robust MFP handles activity at challenging sites, even construction
• Produces prints 3 times faster than previous HP models-see A1/D-size prints delivered in 25 seconds
• Choose from 40- to 300-ml HP ink cartridges to fit your print volume, large supplies can reduce interventions
• Transport and onsite dust, damage protection with optional HP DesignJet Rugged Case

Sturdy, Intelligent Design.

Maximize Time & Efficiency.

• Complete tasks intuitively-almost 3 times faster vs other devices-one touchscreen works like a smartphone
• Cut waste by 50%-print at half scale with automatic sheet feeder/tray; cut extra work, waste of wide rolls
• No LAN needed-move this MFP any time, any place your Wi-Fi signal can reach with wireless connectivity

Maximize Time & Efficiency.

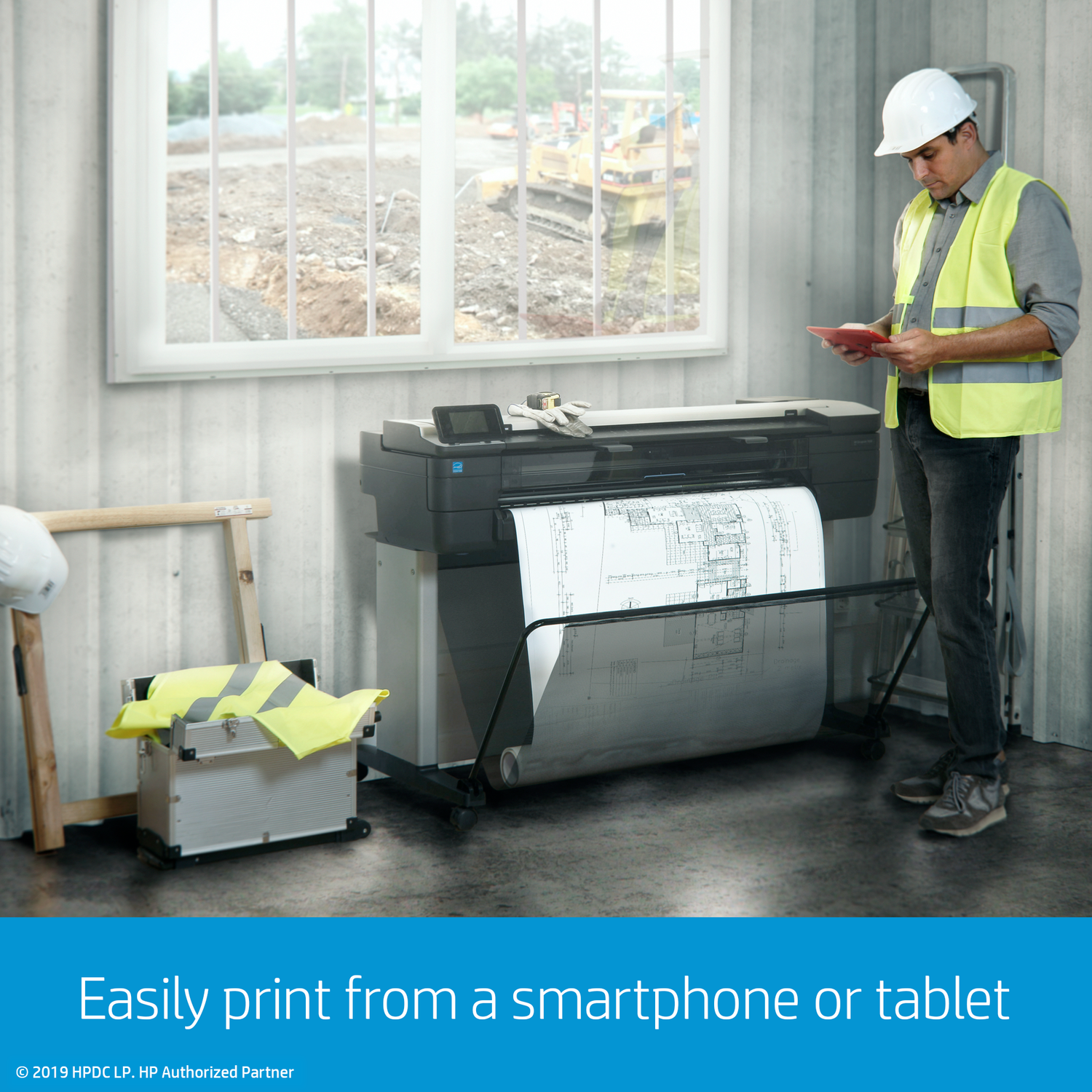

Mobile App For Printing From Multiple Devices.

• Use integrated scanning to capture and share feedback, enable archiving and more
• The printer creates its own Wi-Fi network for easy connectivity with Wi-Fi Direct
• Conveniently scan, share, print right from your smartphone or tablet; enjoy a smartphone-like experience
• Manage scans from your mobile device with the HP AiO Printer Remote app, enabled by HP Mobile Printing

Mobile App For Printing From Multiple Devices.

Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.

Ideal for
Architects/engineers and construction teams working in the office or at the job site that need convenient multifunction printing, scanning, and copying of technical documents to enable effective communication.

Media Sizes
8.3 to 36-in wide sheets; 11 to 36-in rolls.

Media Handling
Sheet feed; roll feed; input tray; media bin; automatic cutter.

Security Features
Dynamic security enabled printer. Cartridges using a non-HP chip might not work and those that work today might not work in the future.

Connectivity/Mobile Printing
• Connectivity: Wi-Fi, Gigabit Ethernet (1000Base-T).
• Mobile Printing: Direct print for mobile apps for iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.

Print Speeds
Up to 25 sec/page on A1/D, 82 A1/D prints per hour.

Software Included
Easily print project sets and PDF documents with HP Click printing software. HP DesignJet Utility for Mac and Windows.

Why to Buy
Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.

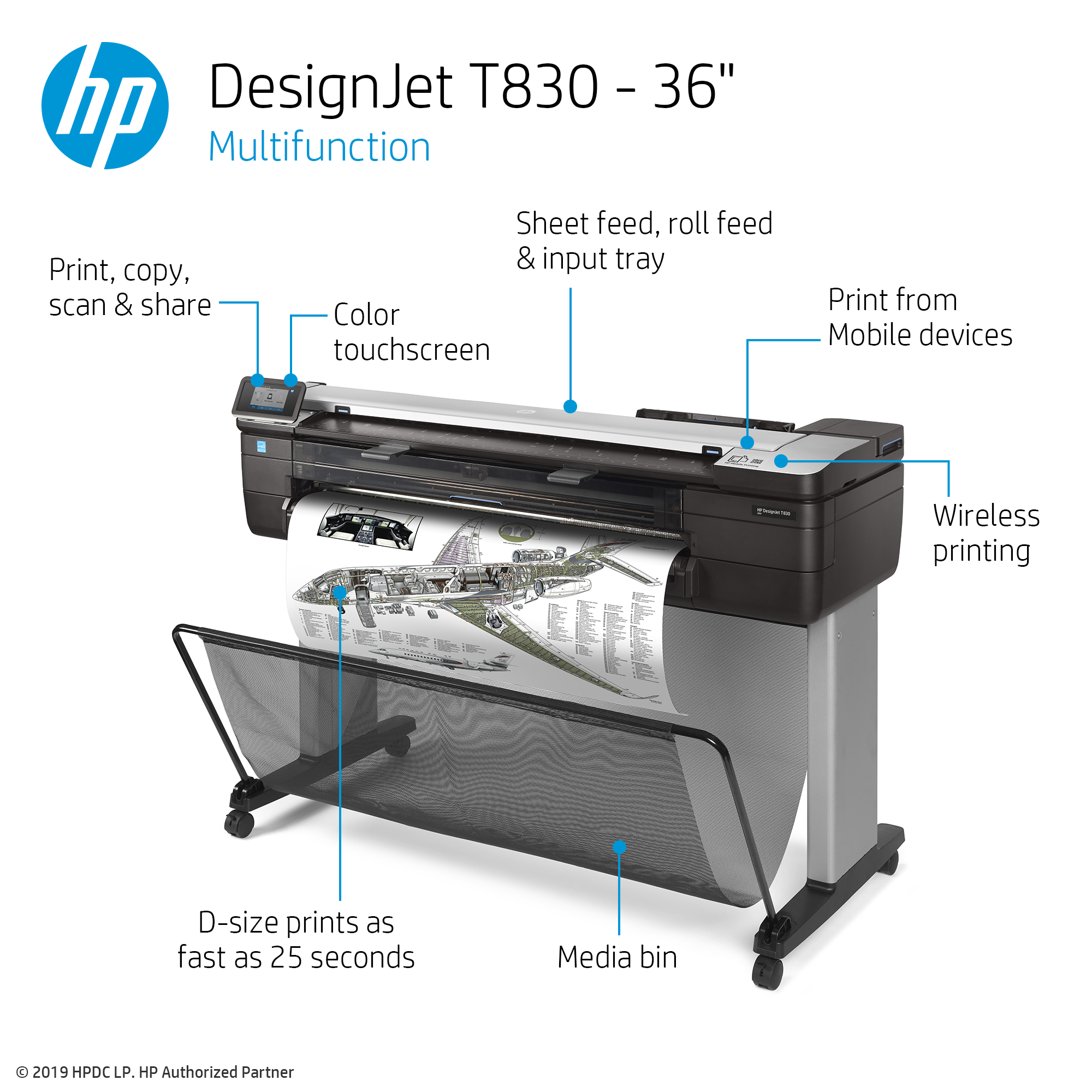

HP DesignJet T830 Features

  • Line drawings: 25 sec/page on A1/D, 82 A1/D prints per hour
  • Dye-based; 4 ink system
  • Media handling: Sheet feed, roll feed, input tray, media bin, automatic cutter
  • FCC Class A emissions - for use in commercial environments, not residential environments

Key Features

  • Line drawings: 25 sec/page on A1/D, 82 A1/D prints per hour
  • Dye-based; 4 ink system
  • Media handling: Sheet feed, roll feed, input tray, media bin, automatic cutter
  • FCC Class A emissions - for use in commercial environments, not residential environments

What's in the box:

  • HP DesignJet T830 Large Format Multifunction Wireless Plotter Printer (36 ")- Print Head
  • Ink Cartridges
  • Printer Stand
  • Spindles
  • Quick Reference Guide
  • Setup Poster
  • Start-Up Software
  • Power Cord
  • Refeed Preventers
  • HP 1 Year Limited Warranty
