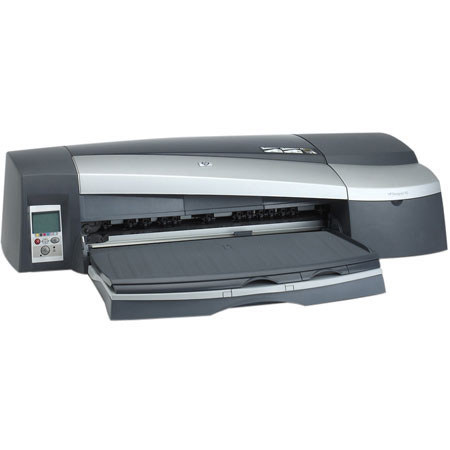

Hewlett-Packard Hewlett Packard - HP DesignJet 90R Color Printer with Roll Feed for Printing up to 18"/457mm Wide
See all Hewlett-Packard items

Hewlett-Packard Hewlett Packard - HP DesignJet 90R Color Printer with Roll Feed for Printing up to 18"/457mm Wide

SKU: IHPDSJ90R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Specification about this item

  • Print speed, black (draft quality mode)

  • Print speed

    Color Image (ISO N5) Normal Mode A3/B Glossy Paper: 4 min/page* (*The printed area dimensions (margins not included) for file N5 are 11.02 x 13.78 in (279.9 x350 mm).
    Color Image (ISO N5) Normal Mode A2/C Glossy Paper: 6.3 min/page* (*The printed area dimensions (margins not included) for file N5 are 14.5 x 18.1 in (368 x 460mm)

  • Print speed, color (draft mode)

  • Print speed, maximum

  • Print speed, using N5 file

  • Print margins (B-size)

  • Print speed, color, 4x6 photo,draft mode

  • Print speed, color,4x6 photo,normal mode

  • Print speed, color, 4x6 photo, best mode

  • Print speed (letter)

  • Black text (ppm)

  • Mixed text/color graphics (ppm)

  • Full page color (seconds)

  • Print cartridges

  • Print cartridge colors

    Black, cyan, magenta, yellow, light cyan, light magenta
    Lightfastness: 82 years* /*Wilhelm Imaging Research, Inc. concluded that prints made with HP No. 85 ink cartridges and HP Premium Plus Photo papers may be displayed indoors under glass for 82 years before noticeable fading and staining occur (see www.wilhelm-research.com for details).

  • Ink types

    HP Vivera dye based inks
    Ink drop: 4pl

  • Color calibration

  • Print technology

    HP Thermal Inkjet

  • Print technology resolution

    HP Color Layering technology, PhotoREt IV

  • HP Real Life Technologies Features

  • Printhead nozzles

  • Print quality, black

  • Print quality, color

  • Paper trays, std.

    70-sheet input tray, 50-sheet output tray, front single-sheet paper feed, rear path for manual single-sheet feed, rear roll feed* (*Roll feed comes as standardwith HP Designjet 90r Printer and is optional with HP Designjet 90 Printer)

  • Paper trays, max.

  • Input capacity, std

  • Input capacity, max.

  • Standard envelope capacity

  • Output capacity, std.

  • Output capacity, max.

  • Custom sizes

  • Weights

  • Weight (by paper path)

    HP Designjet 90 Printer: Tray 1: 17 to 40 lb; manual single-sheet feed: 17 to 40lb; rear path: up to 80 lb (Tray 1: 65 to 150 g/m2; manual single-sheet feed: 65to 210 g/m2; rear path: up to 300 g/m2) HP Designjet 90r & 90gp Printers: Tray 1: 17 to 40 lb; manual single-sheet feed: 17to 40 lb; rear path: up to 80 lb; roll feed 17 to 40 lb (Tray 1: 65 to 150 g/m2;manual single-sheet feed: 65 to 210 g/m2; rear path: up to 300 g/m2; roll feed: 65 to 150 g/m2)

  • Thickness (by paper path)

    HP Designjet 90 Printer: Tray 1:up to 0.008 in;envelopes:up to 0.015 in;RearTray:up to 0.015 in; manual sheet feed:up to 0.008 in Tray 1:up to 0.2 mm;envelopes: up to 0.4 mm;Rear Tray:up to 0.4 mm;manual sheet feed:up to 0.2 mm)HP Designjet 90r & 90gp Printers:Tray 1:up to 0.008 in;envelopes:up to 0.015 in;Rear Tray:up to 0.015 in; manual sheet feed: up to 0.008 in; roll media: up to 0.008 in (Tray 1: up to 0.2 mm; envelopes: up to 0.4 mm;Rear Tray: up to 0.4 mm; manual sheet feed: up to 0.2 mm)

  • Types

    Paper (plain, inkjet, coated, heavyweight coated, semi-gloss, glossy, proofing, photo, brochure/flyer), transparencies

  • Note

    Print margins: Top (sheet) 0.2 in (5 mm)
    Bottom (sheet) 0.47 in, 0.2 in (5 mm) (roll *)
    Left (sheet) 0.2 in (5 mm)
    Right (sheet) 02 in (5 mm)
    (* Roll comes as standard with HP Designjet 90r Printer and is optional with HP Designjet 90 Printer)

  • Standard sizes

    Sizes: Letter, legal, tabloid, executive, C, envelopes, banners (A2, A3, A4, B3, B4, A/B/C (English architectural), envelopes, banners)
    Rolls: Core diameter: 2 in (5.08 cm), External diameter: 3.9 in (10 cm), Max Weight: 7 lb (3 kg)

  • Duplex (2 sided) printing

  • Resolution

  • Processor

  • Duty cycle

  • Media

  • Media sizes, std.

  • Media sizes, custom

  • Media types

  • Memory

    64 MB

  • Memory, std.

  • Vertical Alignment Accuracy/Skew

  • Printer language

    Standard: PCL 3-GUI RGB 24-bit Contone
    Optional: Adobe PostScript 3 via software RIP

  • Drivers (included)

    Raster driver for Mac OS 9.x, 10.2, 10.3, 10.4; PCL 3-GUI Windows driver; Microsoft Windows drivers 98, Me, 2000, XP

  • Fonts

  • Connectivity, std.

    Standard: USB 1.1 (USB 2.0 compliant), Centronics parallel IEEE-1284 (ECP compliant), 1 EIO slot
    Optional: HP Jetdirect 620n, 615n, 680n, 610n, 600n,175x, 310x, 380x, en3700

  • Interfaces

  • Wireless interfaces

  • Standard operating systems

  • Network operating systems

  • Client operating systems

  • Operating systems

  • Macintosh compatible

  • System requirements, minimum

    Windows Microsoft Windows 98: Pentium I, 133 MHz, 128 MB RAM, 300 MB available hard disk space; Microsoft Windows 2000, Server 2003: Pentium II, 300 MHz, 128 MB RAM, 400 MB available hard disk space; Microsoft Windows XP: Pentium III, 733 MHz, 256 MB RAM, 400 MB Mac iMac G3, Mac OS 9 v 9.1, Mac OS 10 v 10.2, 256 MB RAM, 100 MB available harddisk (compatible Macintosh hardware: iMac G3, G4, G5, G4 dual processor, G5 dualprocessor, iBook, owerBook, eMac)

  • Dimensions (w x d x h)

    Maximum: HP Designjet 90 Printer: 35 x 33.9 x 8.7 in (890 x 860 x 220 mm) HP Designjet 90r/90gp Printers: 35 x 33.9 x 8.7 in (890 x 860 x 220 mm)
    Shipping: HP Designjet 90/90r/90gp Printers: 43 x 22 x 20 in (1034 x 544 x 498 mm)

  • Weight

    Printer:HP Designjet 90 Printer: 40.8 lb (18.5 kg) HP Designjet 90r/90gp Printers: 43 lb (19.5 kg) HP Designjet 90 Printer: 68 lb (31 kg)
    Shipping; HP Designjet 90r/90gp Printers: 73 lb (33 kg)

  • Acoustics

    Sound pressure, active 50 dB(A) Sound pressure, standby 37 dB(A) Sound power, active 6.2 B(A) Sound power, standby 5.4 B(A)

  • Power specifications

    Power Requirements: Input voltage 100 to 240 VAC (+/- 10%) auto range, 50/60 Hz (+/- 3 Hz), 2 amp maximum

  • 802.11 security

  • Software included

  • Warranty, std.

    HP Designjet 90 Printer: One-year next-business-day exchange (EMEA, NA, LAR, Australiasia), one-year next-business-day on-site repair (AP except Australia and New Zealand) HP Designjet 90r Printer: One-year next-business-day exchange (EMEA, NA, LAR, Australiasia), one-year next-business-day on-site repair (JP, CHINA)

  • Power certifications

    Compliance for Class B products, Class A when connected to LANs: EU (EMC Directive), USA (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI), Class A: for Korea (MIC) and Taiwan (BSMI) IEC 950-compliant, EU LVD and EN60950 compliant, CSA certified for US and Canada, Mexico NOM- 1-NYCE, Argentina IRAM, China CCC, Singapore PSB, Russia VNIIS, Korea KTL
    Energy Star compliant

  • Other

About Hewlett-Packard Q6656B

Focus on your creativity with this professional, A2+/C+-size photo printer: the HP Designjet 90. HP Professional Color Technologies deliver consistent color output while HP Vivera Inks and select HP papers provide exceptional fade resistance.

Experience professional color: Rich color depth and minimal dot visibility.
Proprietary dye-based HP Vivera Inks in HP six-ink color printing work to deliver a wide range of colors,deeper blacks, continuous tones, and gloss uniformity. A four-picoliter ink-drop size maintains fine detail reproduction, especially in dark areas, and smooth tonal transitions.

Maximum color consistency.
See reliable, consistent color from print to print. HP invests in HP Professional Color Technologies making your color experience simple and straightforward. Plus, enjoy more robust color and job management capabilities.

New, revolutionary HP Vivera Inks.
HP Vivera Inks are carefully engineered to work flawlessly with all parts of the printing system so you achieve rich, vibrant colors and extraordinary photo image quality, time after time. Graphic designers and professional photographers can rest assured that the images they create will maintain their impact.

Optional EFI software RIP.
Add the optional EFI software RIP to expand your printing options and enhance color accuracy. The EFI software RIP provides Adobe PostScript level 3 support and optional Automatic Pantone calibration. Plus, you get enhanced job management capabilities for greater control. Spend just a little more to get a lot more from this professional, versatile printer.

Color fidelity.
Achieve exceptional color fidelity with the HP colorimeter with display profiling an calibration software plus ICC profiles, powered by GretagMacbethtm technology.

Live out your creativity: Print on a range of HP media sizes.
Increase your output options with multiplemedia-handling capabilities. The standard tray holds up to 70 sheets of A2+/C+-size media. The front bypass slot accommodates cutsheet media up to media up to 18 inches/457 mm in width (A2+/C+ size). The rear bypass slot is designed to handle heavy and rigid HP media of weights up to 80 lb/300 g/m2. And four optional HP rolls feed media up to18 in/457 mm wide and 150 ft/45.7 m long.

Print high-quality images quickly.
Print high-quality images on A3+/B+- size media at four minutes per page in Normal print mode. Use Draft mode for proof printing to deliver A3+/B+-size prints quickly. No matter which mode you choose, you'll appreciate the quality that comes from HP technology.

Experience full color workflow support.
Your design software choices expand when you use the HP Designjet 90 Printer series, which enables color solutions for every color workflow. The print preview ensures correct layout. And you can add optional EFI software if you need color management in a CMYK workflow.

Save time and increase productivity.

Hewlett-Packard Q6656B Features

  • A great tool for professional photographers
  • Printer with Roll Feed for Printing up to 18"/457mm Wide
  • Exceptional fade resistant photo quality: HP Vivera inks, together with HP Premium Plus photo papers for exceptionally fade resistant images that last approximately 82 years.
  • Fine details and faithful reproduction: Excellent highlight and shadow detail, smooth transitions and persuasive skin tones, with 4pl ink drop size. HP color layering technologies provide dense blacks, reliable color consistency and gloss uniformity.
  • Excellent gloss level and gloss uniformity: Dye-based HP Vivera inks provide rich color depth, minimal dot visibility, and uniform gloss-all important attributes of image quality.
  • An asset for graphic designers: No need to outsource or tile and assemble Save time and money by publishing professional color prints in-house.
  • Media versatility up to C+/A2+ size: 4 independent paper paths and a roll-feed expand your printing capabilities, from postcards to full sized banners.
  • Professional color proofs: HP Color Technologies such as Professional Pantone emulation and CMYK+ will provide the edge to win more clients. Automatic printhead alignment and Closed Loop Color calibration deliver consistent reliable colors every time. Postscript support through EFI Designer Edition 4.2 RIP.
  • Time to design: See results and get client approval fast by printing up to 4 mpp for A3+/B+ sizes in Normal mode.
  • Improving the workflow of proofing professionals
  • Fast color stability: Obtain accurate and stable proofs quickly with new dye-based HP Vivera ink and HP Proofing media (most media are stable 10 minutes after printing).
  • Color consistency: Consistency is guaranteed by way of the patented Closed Loop Color calibration, which eliminates guess work.
  • Press simulation: Press simulation is a CMYK to CMYK transformation that changes the lightness, hue, and saturation of the CMYK files sent to the inkjet printer to match the output of a production device, giving pre-press professionals an easy-to-use and low-cost
