This item is no longer available.
Review Summary
2024-10-27T20:00:00
It apparently does not have enough memory to send a file with multiple pages...very frustrating
Ffsl
2023-12-22T19:00:00
Product came broken, poorly assembled at factory
Not s.
2023-11-29T19:00:00
The printer was easy to set up and prints nicely. We are printing 24" wide pages and agree with the other reviews that the paper output catch area is not great. The catch cloth is too loose and hangs too low allowing the pages to curl up and get out of sequence. We put a box underneath the cloth to raise up the catch area which seems to have solved the problem.
Skibetty
2023-09-22T20:00:00
I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to print properly.
Village b.
2023-06-05T20:00:00
You'd think a $7000 plotter would be programed to figure out how to print things on a sheet and not cut half of the print off. You'd think it'd allow you to print landscape from the roll to save paper. But no, everytime anyone in our office tried to print or scan anything on this plotter. It's a huge ordeal and I have to step in and fiddle with the printer properties to even get close to the print we want. Do not buy this plotter.
Jake13
2023-01-19T19:00:00
Nice Printer for the money
bill
2023-01-11T19:00:00
Trying this again since my previous review was deleted by HP. This printer arrived broken and three weeks later still not fixed.
Purchased 2.
2022-12-18T19:00:00
Received broken/unusable. Header circuit board arrived installed crooked and not connected.
Received b.
2022-11-23T19:00:00
Wonderful machine so far! I just got it last week. This printer/scanner/copier does it all so well! Great value you for the money! I also have a Canon TX3000 large format in my NY office and it has been a piece of junk from the beginning so I really appreciate the quality of this machine!
R B.
2022-11-11T19:00:00
Compact and. Perfect for small or home office. Very happy. I?ve only had for a few projects but so far extremely satisfied. It?s the perfect starter plotter as quality and features are all a professional needs, and only sacrifice would be speed for larger projects and E size sheets.
Bill P.
2022-11-09T19:00:00
I BOUGHT A BRAND NEW PRINTER. IT DOES NOT WORK IT WAS DELIVERED TWO WEEKS AGO . I AM STILL WAITING FOR HP TO FIX THE PRINTER.
EFH7
2022-10-27T20:00:00
everything setup easy and prints were accurate... days later had to make a quick print.... turned into a 30 minute ordeal. Still dreaming for a day when technology can keep up.
Adam Z.
2022-09-10T20:00:00
So far it seems to be running good, only have had it for a short two weeks. It is a not as sturdy as we would like and runs a little slower than our previous machine. Don't like the fact that you cannot feed the next sheet in as the last sheet is finishing. Easy enough to use after you get used to it.
Designs
2022-07-24T20:00:00
i just purchased the T830 and has great features, but the paper tray at the bottom that catches the paper is a very poor design if you have to print more than 1 drawing. just have a huge pile of drawings at the bottom.
JC61
2022-05-02T20:00:00
Great plotter for a small surveying business, but right after the year warranty ran out the automatic cutter quit working. It either never cuts, or it starts to cut and releases the cutter assembly halfway across the page, causing a paper rip/jam/crunch when the carriage assembly and paper feed continue doing their thing. The result? Ruined plot = wasted paper = wasted money. There also doesn't appear to be anybody even remotely close to our location in western NC who can repair this, and online troubleshooting and self-help is not product-specific.
NCPLS
2021-12-25T19:00:00
Seems to work great. Great quality, fast printing, wifi connection. The only thing i have noticed is that it doesn't wake up from sleep mode when you send a print. I?m sure its just a setting I need to find and adjust. Other than that, it works great.
Mitscher A.
2021-12-05T19:00:00
I purchased a new machine. It was delivered not working. Horrible service.
Architecture F.
2021-11-20T19:00:00
All in all the printer works fine. But the tray that accepts printed sheets does not allow the sheets to drop in neatly. This makes it tough to print plan sets as you have to stand at the machine and assist the pages to drop in correctly.
BREID
2021-11-08T03:00:55
The printer fits the need of my design company. We?ll worth the price and the wireless feature make it convenient.
Tracy D.
2021-09-06T20:00:00
Love it. Does so much more that our last printer and was very reasonably priced.
New P.
2021-08-05T20:00:00
This was an upgrade to our dying DesignJet 510 and what an upgrade it is! It's super fast with both prints and scans/copies. The price was on point and we just couldn't be happier!
Northwest T.
2021-06-29T20:00:00
This is one of the best buys we have made in a long time. A great product without frills that we don't need.
Surveyor P.
2021-05-25T20:00:00
I?ve had HP plotters for nearly 25 years. They have always been a product we could count on. We went with the design jet T830 (replacing our design jet T520) because of the additional features it offers, copy, scan, print, and color. We haven?t used all the features yet as we just received the unit a week ago. Set up was very easy. Everything came in the box as stated and delivered in good condition.
Randy145
2021-05-19T20:00:00
I wish I had bought this a long time ago! Never have to go to Fed Ex again for copies! This fits right in my closet in my office, easy to set up and use, and prints beautifully.
happy b.
2021-05-01T20:00:00
software does not work right out of the box many updates and new software
Hp o.
2021-04-28T20:00:00
Couple glitches to get going but works great. Clear prints and not overly noisy.
MGLDC
2021-03-03T19:00:00
We purchased this machine because our old unit was outdated, slow, and cost too much per page to print. The ink cost was outrageous! This unit has high capacity ink cartridges, it's fast, quiet, and all around awesome!
Dexter559
2021-02-28T19:00:00
Printer is the first large format printer for my small business. Its fast and prints very high quality. Its very easy to use and set up.
Bacchus B.
2021-02-07T19:00:00
I should have purchased this long ago. It does it all in a compact, user friendly, well designed, and affordable format.
Cardillo A.
2021-02-03T08:24:16
Arrived without incident. It was easy to setup and add to my network. The product works like a champ!
WILLIAM H.
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
26 sec/page on A1/D, 81 A1/D prints per hour
Up to 2400 x 1200 optimized dpi
Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
Dye-based (C, M, Y); pigment-based (mK)
1 (C, M, Y, mK)
+/- 0.1%
0.0008" (0.02mm)
0.0028" (0.07mm) (ISO/IEC 13660:2001(E))
Thermal Inkjet
Sheet feed, roll feed, input tray, media bin, automatic cutter
Rolls: 11 to 24" (279 to 610mm)
Sheets: 8.3 x 11 to 24 x 74.7" (210 x 279 to 610 x 1897mm)
Standard sheets: A4, A3, A2, A1 (A, B, C, D)
Up to 0.3mm (11.8 mil)
Color: Up to 1.5"/sec (3.81cm/sec)
Grayscale: up to 4.5"/sec (11.43cm/sec)
600 dpi
Size: 610mm x 2.77m
Thickness: 0.03" (0.8mm)
50 to 400%
Up to 99 copies
Content type, Lighter/Darker, Background noise removal, Background color removal, Blue print invert, Translucent media, Color, Scan full width (24-in), Auto De-skew, Resize, Copy Margins, Quality
Line drawings, Renderings, Presentations
1GB
Gigabit Ethernet (1000Base-T); Wi-Fi 802.11b/g/n; Wi-Fi Direct
TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, HP-RTL, URF
Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome app for Chrome OS
Direct print for mobile apps for iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android
Raster driver for Windows and macOS; HP-GL/2, HP-RTL drivers for Windows
HP Click printing software, HP DesignJet Utility for Mac and Windows
41 to 104 Degree F (5 to 40 Degree C)
-13 to 131 Degree F (-25 to 55 Degree C)
20 to 80% RH
48 dB(A) (printing); <16 dB(A) (sleep)
6.5 B(A) (printing); <3.4 B(A) (sleep)
36W (printing), 3.5W (sleep), 0.2W (standby)
100-240V, 50/60Hz, 1.2A max
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), India (BIS)
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine
43.23 x 24.76 x 45.47" (1098 x 629 x 1155mm)
112.43 lbs (51kg)
191628047048
Great Time Saver
By esecon
I've had my T830 since February, 2019, and it has already paid for itself. Prior to purchasing it, it would take a day and hundreds of dollars to complete my project. I first would drive to my Printing Office, 10 miles away, wait for a set of large format prints, then run them back to my office to mark them up. After that, I'd drive back to the printer to scan the plans in color onto a flash drive for a few hundred dollars more. Then, I'd drive back to the office to send out the scans. Now, I...
View full Review
Great, easy to use plotter.
By Village b.
I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to p...
View full Review

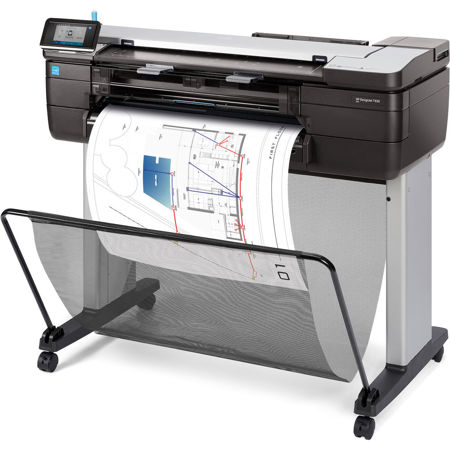

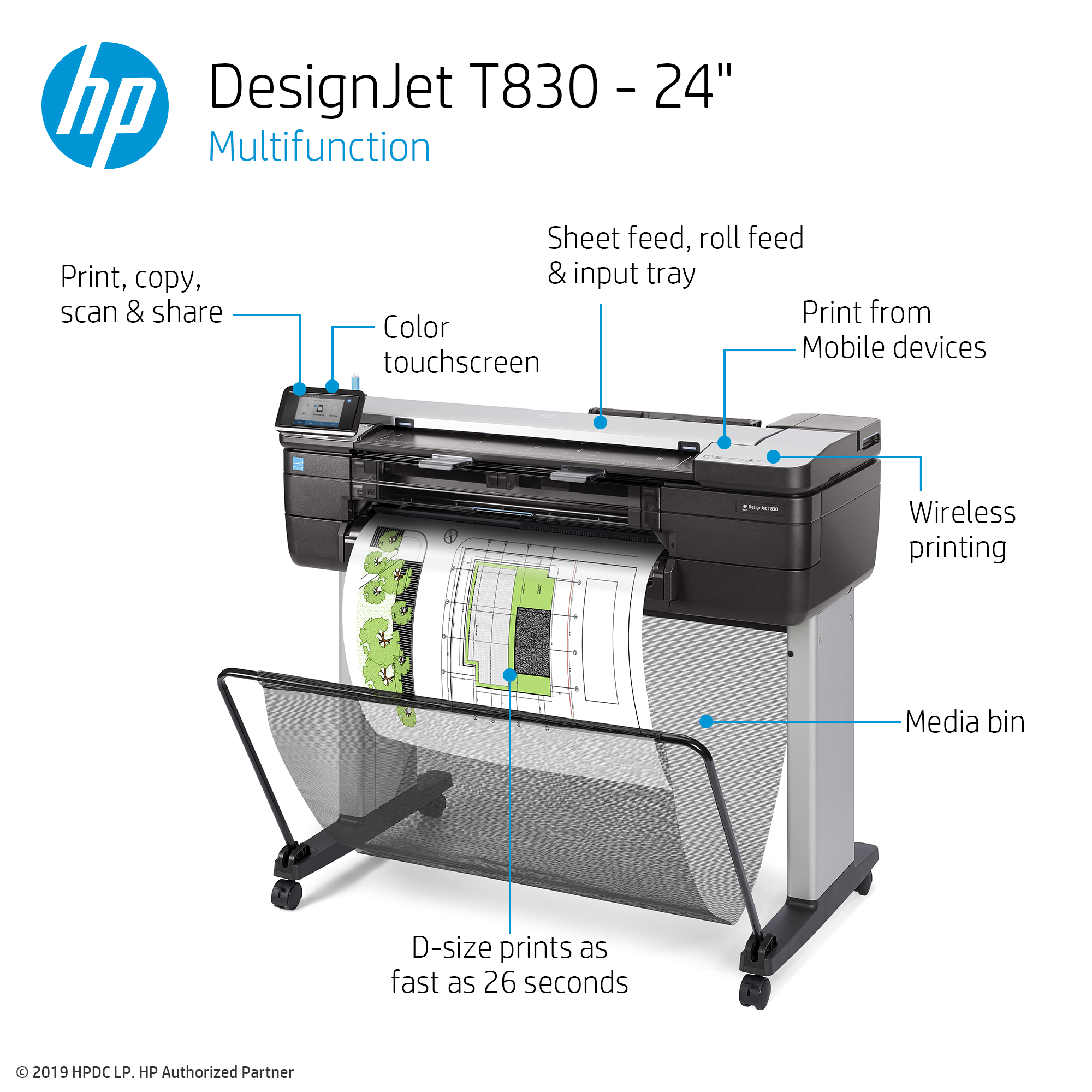

• Enjoy easy installation in the office, construction job site with the most compact large-format MFP

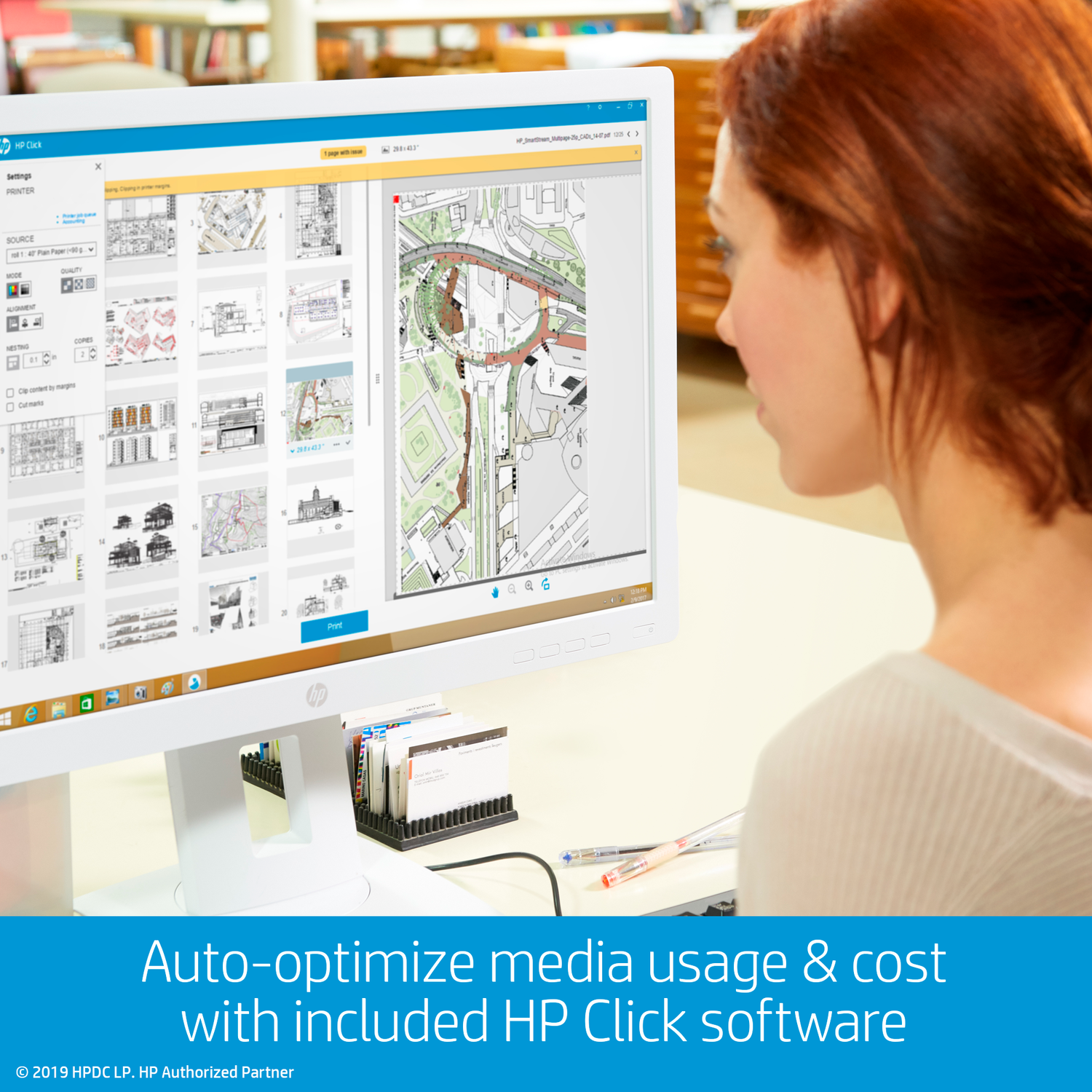

• Easily print project sets and PDF documents with HP Click printing software
• Anyone can print smoothly from a smartphone or tablet with HP Mobile Printing
• Print documents fast - up to 26 seconds for A1/D-size prints
• Get HP DesignJet quality also in small-format sizes - print half-size documents with 50-sheet A4/A3 input tray
• Achieve precise lines up to 0.1% line accuracy, up to 2400 dpi and high contrast - HP Bright Office Inks
• Smart scanning technology protects originals from damage when scanning and obtains precise colors
• Reinforced design and strong legs for easy transport and use at the job site
• Use built-in scanner to copy and distribute sketches and hand-annotated drawings to peers/partners right away
• Easily link your computer, smartphone or tablet to the printer with Wi-Fi Direct
• Share drawings immediately - scan/email from front panel, use HP Smart app to email contacts, post to cloud
• No learning curve - with the intuitive design of a single touchscreen, you can scan, copy and share instantly
Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.
Ideal for
Architecture studios and construction offices preferring a smaller footprint and needing convenient multifunction printing, scanning, and copying of technical documents to enable effective communication.
Media Sizes
8.3 to 24-in wide sheets; 11 to 24-in rolls.
Media Handling
Sheet feed; roll feed; input tray; media bin; automatic cutter.
Security Features
Dynamic security enabled printer. Cartridges using a non-HP chip might not work and those that work today might not work in the future.
Connectivity/Mobile Printing
Connectivity: Wi-Fi, Gigabit Ethernet (1000Base-T).
Mobile Printing: Direct print for mobile apps for iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.
Print Speeds
Up to 26 sec/page on A1/D, 81 A1/D prints per hour.
Software Included
Easily print project sets and PDF documents with HP Click printing software. HP DesignJet Utility for Mac and Windows.
Why to Buy
Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.
