Questions & Answers

Reviews about this item

Review Summary

2024-10-27T20:00:00

Rated 2 out of 5

Not a great printer

It apparently does not have enough memory to send a file with multiple pages...very frustrating

Ffsl

2023-12-22T19:00:00

Rated 1 out of 5

Poor quality

Product came broken, poorly assembled at factory

Not s.

2023-11-29T19:00:00

Rated 4 out of 5

Catch tray needs some help.

The printer was easy to set up and prints nicely. We are printing 24" wide pages and agree with the other reviews that the paper output catch area is not great. The catch cloth is too loose and hangs too low allowing the pages to curl up and get out of sequence. We put a box underneath the cloth to raise up the catch area which seems to have solved the problem.

Skibetty

2023-09-22T20:00:00

Rated 5 out of 5

Great, easy to use plotter.

I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to print properly.

Village b.

2023-06-05T20:00:00

Rated 1 out of 5

Horrible Convoluted Garbage Plotter, do not buy.

You'd think a $7000 plotter would be programed to figure out how to print things on a sheet and not cut half of the print off. You'd think it'd allow you to print landscape from the roll to save paper. But no, everytime anyone in our office tried to print or scan anything on this plotter. It's a huge ordeal and I have to step in and fiddle with the printer properties to even get close to the print we want. Do not buy this plotter.

Jake13

2023-01-19T19:00:00

Rated 5 out of 5

Nice Printer for the money

Nice Printer for the money

bill

2023-01-11T19:00:00

Rated 1 out of 5

Arrived Broken

Trying this again since my previous review was deleted by HP. This printer arrived broken and three weeks later still not fixed.

Purchased 2.

2022-12-18T19:00:00

Rated 1 out of 5

Received broken/unusable.

Received broken/unusable. Header circuit board arrived installed crooked and not connected.

Received b.

2022-11-23T19:00:00

Rated 5 out of 5

Great machine, great value!

Wonderful machine so far! I just got it last week. This printer/scanner/copier does it all so well! Great value you for the money! I also have a Canon TX3000 large format in my NY office and it has been a piece of junk from the beginning so I really appreciate the quality of this machine!

R B.

2022-11-11T19:00:00

Rated 5 out of 5

Perfect for new engineering firm

Compact and. Perfect for small or home office. Very happy. I?ve only had for a few projects but so far extremely satisfied. It?s the perfect starter plotter as quality and features are all a professional needs, and only sacrifice would be speed for larger projects and E size sheets.

Bill P.

2022-11-09T19:00:00

Rated 1 out of 5

THE PRINTER DOES NOT WORK

I BOUGHT A BRAND NEW PRINTER. IT DOES NOT WORK IT WAS DELIVERED TWO WEEKS AGO . I AM STILL WAITING FOR HP TO FIX THE PRINTER.

EFH7

2022-10-27T20:00:00

Rated 3 out of 5

Almost there

everything setup easy and prints were accurate... days later had to make a quick print.... turned into a 30 minute ordeal. Still dreaming for a day when technology can keep up.

Adam Z.

2022-09-10T20:00:00

Rated 4 out of 5

So far easy to use.

So far it seems to be running good, only have had it for a short two weeks. It is a not as sturdy as we would like and runs a little slower than our previous machine. Don't like the fact that you cannot feed the next sheet in as the last sheet is finishing. Easy enough to use after you get used to it.

Designs

2022-07-24T20:00:00

Rated 1 out of 5

Great features, but VERY POOR DESIGN

i just purchased the T830 and has great features, but the paper tray at the bottom that catches the paper is a very poor design if you have to print more than 1 drawing. just have a huge pile of drawings at the bottom.

JC61

2022-05-02T20:00:00

Rated 2 out of 5

Automatic Cutter Problems

Great plotter for a small surveying business, but right after the year warranty ran out the automatic cutter quit working. It either never cuts, or it starts to cut and releases the cutter assembly halfway across the page, causing a paper rip/jam/crunch when the carriage assembly and paper feed continue doing their thing. The result? Ruined plot = wasted paper = wasted money. There also doesn't appear to be anybody even remotely close to our location in western NC who can repair this, and online troubleshooting and self-help is not product-specific.

NCPLS

2021-12-25T19:00:00

Rated 4 out of 5

Plotter

Seems to work great. Great quality, fast printing, wifi connection. The only thing i have noticed is that it doesn't wake up from sleep mode when you send a print. I?m sure its just a setting I need to find and adjust. Other than that, it works great.

Mitscher A.

2021-12-05T19:00:00

Rated 1 out of 5

Horrible Service

I purchased a new machine. It was delivered not working. Horrible service.

Architecture F.

2021-11-20T19:00:00

Rated 4 out of 5

Have to tend to the catch tray not productive

All in all the printer works fine. But the tray that accepts printed sheets does not allow the sheets to drop in neatly. This makes it tough to print plan sets as you have to stand at the machine and assist the pages to drop in correctly.

BREID

2021-11-08T03:00:55

Rated 5 out of 5

Small office solution.

The printer fits the need of my design company. We?ll worth the price and the wireless feature make it convenient.

Tracy D.

2021-09-06T20:00:00

Rated 5 out of 5

New Printer

Love it. Does so much more that our last printer and was very reasonably priced.

New P.

2021-08-05T20:00:00

Rated 5 out of 5

So easy, tech unsavvy people can do it!

This was an upgrade to our dying DesignJet 510 and what an upgrade it is! It's super fast with both prints and scans/copies. The price was on point and we just couldn't be happier!

Northwest T.

2021-06-29T20:00:00

Rated 5 out of 5

A great copy, scanner, and plotter all in one!

This is one of the best buys we have made in a long time. A great product without frills that we don't need.

Surveyor P.

2021-05-25T20:00:00

Rated 4 out of 5

Great features

I?ve had HP plotters for nearly 25 years. They have always been a product we could count on. We went with the design jet T830 (replacing our design jet T520) because of the additional features it offers, copy, scan, print, and color. We haven?t used all the features yet as we just received the unit a week ago. Set up was very easy. Everything came in the box as stated and delivered in good condition.

Randy145

2021-05-19T20:00:00

Rated 5 out of 5

great copier

I wish I had bought this a long time ago! Never have to go to Fed Ex again for copies! This fits right in my closet in my office, easy to set up and use, and prints beautifully.

happy b.

2021-05-01T20:00:00

Rated 1 out of 5

T-830

software does not work right out of the box many updates and new software

Hp o.

2021-04-28T20:00:00

Rated 5 out of 5

Should have bought it long time ago!

Couple glitches to get going but works great. Clear prints and not overly noisy.

MGLDC

2021-03-03T19:00:00

Rated 5 out of 5

Awesome printer!

We purchased this machine because our old unit was outdated, slow, and cost too much per page to print. The ink cost was outrageous! This unit has high capacity ink cartridges, it's fast, quiet, and all around awesome!

Dexter559

2021-02-28T19:00:00

Rated 5 out of 5

Great printer for a small business

Printer is the first large format printer for my small business. Its fast and prints very high quality. Its very easy to use and set up.

Bacchus B.

2021-02-07T19:00:00

Rated 5 out of 5

Better sooner than later

I should have purchased this long ago. It does it all in a compact, user friendly, well designed, and affordable format.

Cardillo A.

2021-02-03T08:24:16

Rated 5 out of 5

Great Plotter Very happy with my purchase

Arrived without incident. It was easy to setup and add to my network. The product works like a champ!

WILLIAM H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP DesignJet T830 Specifications

Print
  • Print speed

    26 sec/page on A1, 81 A1 prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink types

    Dye-based (C, M, Y); pigment-based (mK)

  • Ink drop

    6 pl (C, M, Y); 12.6 pl (mK)

  • Printheads

    1 (C, M, Y, mK)

  • Printhead nozzles

    1376

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008" (0.02mm) HP-GL/2 addressable

  • Max optical density

    8 Lx min/2.10 D

Multifunction capabilities

Jump to...
  • Scan speed

    Up to 1.5 in/sec (3.81 cm/sec) color, 200 dpi
    Up to 4.5 in/sec (11.43 cm/sec) grayscale, 200 dpi

  • Scan resolution

    Up to 600 dpi

  • Scan format

    JPEG, PDF, TIFF

  • Scan destinations

    Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile

  • Thickness

    0.03" (0.8mm)

  • Handling

    Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

  • Roll size

    11 to 24" (279 to 610mm)

  • Sheet size

    Input tray: 8.3 x 11 to 13 x 19" (210 x 279 to 330 x 482mm)
    Manual feed: 13 x 19 to 24 x 74.7" (330 x 482 to 610 x 1897mm)

  • Standard sheets

    Input tray: A4, A3
    Manual feed: A2, A1

  • Grammage

    60 to 280 g/sq. m (roll/manual feed); 60 to 220 g/sq. m (input tray)

  • Thickness

    Up to 0.3 mm

  • Applications

    Line drawings; Renderings; Presentations

  • Memory

    1 GB

  • Hard disk

    None

Connectivity

Jump to...
  • Interfaces

    Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

  • Print languages (standard)

    HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF

  • Printing paths

    Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, print from USB pen drive

  • Drivers

    HP-GL/2, HP-RTL drivers for Windows
    Raster driver for macOS and Windows

HP Software and solutions

Jump to...
  • HP Software and solutions

    HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Environmental

Jump to...
  • Operating temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Storage temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

  • Operating humidity

    20 to 80% RH

Acoustics

Jump to...
  • Sound pressure

    48 dB(A) (operating), <16 dB(A) (idle)

  • Sound power

    6.5 B(A) (operating), <3.4 B(A) (idle)

  • Consumption

    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1.2 A max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia (EAC); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

  • Environmental

    ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine

Physical

Jump to...
  • Dimensions (W x D x H)

    43.2 x 23.81 x 45.4" (1098 x 605 x 1155mm)

  • Weight

    102.95 lbs (46.7kg)

  • UPC Code

    192223252585

About HP DesignJet T830

FEATURED REVIEWS

Great Time Saver

By esecon

I've had my T830 since February, 2019, and it has already paid for itself. Prior to purchasing it, it would take a day and hundreds of dollars to complete my project. I first would drive to my Printing Office, 10 miles away, wait for a set of large format prints, then run them back to my office to mark them up. After that, I'd drive back to the printer to scan the plans in color onto a flash drive for a few hundred dollars more. Then, I'd drive back to the office to send out the scans. Now, I...

View full Review

Great, easy to use plotter.

By Village b.

I have a business that prints construction plans and posters. I bought the HP to replace a machine that was large & complicated. My Hp is simple and scans and prints perfectly, it has easy to follow guides to ensure I'm putting the paper in correctly. The software is easy to use and makes sense. I've looked at other reviews and they mentioned disliking the basket or use of software, these are not problems for me because every other brand of plotter needs to have settings changed in order to p...

View full Review

You can streamline your project collaborations with the DesignJet T830 24" Wireless Large Format Multifunction Color Inkjet Plotter Printer, bundled with a Black Ink Pack. This compact, large-format multifunction printer (MFP) is designed to enhance your communication and project management capabilities, making it an ideal choice for AEC, GIS, and MCAD professionals.

With the DesignJet T830, you can produce high-quality maps, technical drawings, posters, and renders, all characterized by precise line quality and crisp text. This printer is engineered to work exclusively with cartridges that have a new or reused HP chip, employing dynamic security measures to prevent the use of non-HP chip cartridges. Regular firmware updates ensure the continued effectiveness of these security measures.

Experience the convenience of fast, agile, and intuitive print/scan/copy functions. With the ability to print A1/D-size prints in just 26 seconds, this printer is designed for efficiency. Its compact size allows for easy installation in various environments, from the office to the construction job site. The DesignJet T830 also supports HP Click printing software, enabling you to effortlessly print project sets and PDF documents.

The DesignJet T830 is synonymous with HP DesignJet's reputation for quality and reliability. It offers the flexibility to print half-size documents with a 50-sheet A4/A3 input tray. Its smart scanning technology safeguards originals from damage during scanning while ensuring precise color reproduction. The printer's reinforced design and sturdy legs make it suitable for transport and use at various job sites.

The redesigned stand of this printer contributes to environmental sustainability by reducing CO2e up to 197 tons/year per units sold.

Communication is a breeze with the DesignJet T830. Its built-in scanner allows you to copy and distribute sketches and hand-annotated drawings to your team or partners instantly. The printer's Wi-Fi Direct feature facilitates easy connection to your computer, smartphone, or tablet. You can share drawings immediately by scanning and emailing from the front panel, using the HP Smart app to email contacts, or posting to the cloud. The intuitive design of the single touchscreen interface ensures you can scan, copy, and share without a learning curve.

In summary, the DesignJet T830 24" Wireless Large Format Multifunction Color Inkjet Plotter Printer is a smart solution for professionals seeking to improve project communication and efficiency.

HP DesignJet T830 Features

  • Line drawings: 26 sec/page on A1/D, 81 A1/D prints per hour
  • Dye-based (C, M, Y): pigment-based (mK)
  • Media handling: Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Gigabit Ethernet (1000Base-T); Wi-Fi 802.11b/g/n; Wi-Fi Direct
  • FCC Class A emissions - for use in commercial environments, not residential
  • Dynamic security enabled printer

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create detailed architectural renderings with the HP DesignJet's precise print quality.
  • Boost productivity with rapid print speeds, producing 81 A1 prints per hour, saving time.
  • Easily manage various media types, from roll feed to sheet feed, enhancing paper handling.
  • Connect via Gigabit Ethernet or Wi-Fi for seamless integration and mobile printing.
  • Keep ink costs down using high-capacity HP ink cartridges for efficient, large-format prints.
  • This 24-inch wide-format printer fits perfectly in any office, optimizing space and workflow.

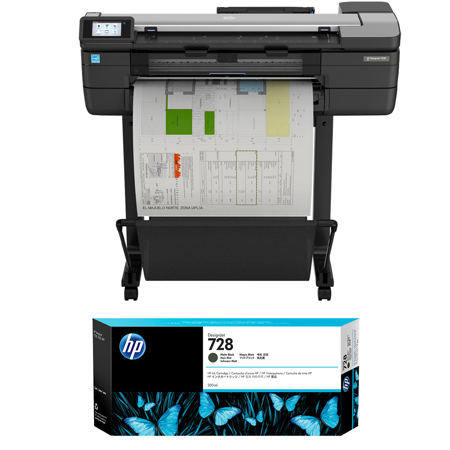

What's in the box:

  • HP DesignJet T830 24" Wireless MFP Color Inkjet Printer
  • Printhead
  • Starter Cyan Ink Cartridge
  • Starter Magenta Ink Cartridge
  • Starter Yellow Ink Cartridge
  • Starter Matte Black Ink Cartridge
  • Printer Stand
  • Spindle
  • Power Cord
  • Setup Poster
  • User Manual
  • HP 1 Year Limited Warranty
  • Bundle Includes:
  • 728 300ml Matte Black DesignJet Ink Cartridge
