This item is no longer available.
Review Summary
2020-09-25T09:37:22
All good so far, still trying to learn how to print multiples,
Mark S.
2020-08-20T08:40:48
Great plotter for the money! I've been working the heck out of it and stands up.
Vince G.
2020-07-17T08:22:28
Printer and cartridges arrived perfectly. Stand is back ordered and has not shipped yet.
MARK B.
2019-12-27T11:57:48
Great print quality. The intro ink cartridges are surprisingly generous. I've printed about 20 Arch D's (mostly B/W) and about a dozen 8.5x11 and 13x19 photos and they still show about 60% full. Speed is my only complaint. I got what I paid for. 7 minutes per Arch D sheet (24x36) at Best quality (much faster for draft quality). Took about an hour and a half to print a 14 Arch D sheet plan at Best quality. Definitely not for Pro's at this speed - it would be frustrating. Acceptable for amateur/home designers like me. Still, it's a killer deal to have plotter capabilities at less than $700! Kudos to HP. This is coming in very handy as I work with my architect, engineer, city, and builders to construct a major addition to my home. Excellent value, great quality. Just a bit slow.
Jay L.
2019-11-18T05:22:22
Works well, a little quirky about switching between roll and sheet fed paper. We found the printer does not like it when you leave the other kind of paper in the printer. Even though the roll was not loaded we had to pull the roll completely out to print sheets.
Thomas F.
70 sec/page on A1
32 A1 prints per hour
Up to 1200 x 1200 optimized dpi
HP Thermal Inkjet
Roll: 0.2 x 0.2 x 0.2 x 0.2 (5 x 5 x 5 x 5mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
Dye-based (C, M, Y); pigment-based (K)
4 (C, M, Y, K)
5.5 pl (C, M, Y); 12 pl (K)
1 (Cyan, Magenta, Yellow, Black)
+/-0.1%
0.0016" (0.04mm) (HP-GL/2 addressable)
Sheet feed, roll feed, input tray, automatic horizontal cutter
Input Tray: 8.3 x 11 to 13 x 19" (210 x 279 to 330 x 482mm)
Manual Feed: 13 x 19 to 24 x 74.7" (330 x 482 to 610 x 1897mm)
11 to 24" (279 to 610mm) rolls (2" core)
60 to 280 g/sq. m (roll/manual feed)
60 to 220 g/sq. m (input tray)
Up to 0.3mm (11.8 mil)
256 MB
Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi
JPEG
Direct print from mobile apps on Android and Chrome OS; HP Smart app for iOS and Android
Raster driver for Windows
HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app
41 Degree to 104 Degree F (5 Degree C to 40 Degree C)
20 to 80% RH
Operating: 45 dB(A)
Idle: < 16 dB(A)
Operating: 6.2 B(A)
idle: < 3.4 B(A)
Printing: < 35 W
Ready: < 6 W
Sleep: < 4.5 W
Standby: < 0.3 W
Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1200 mA max
USA and Canada (CSA certified)
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)
ENERGY STAR; WEEE; EU RoHS; REACH; EuP; EPEAT
38.9 x 20.9 x 11.2" (987 x 530 x 285mm)
56.2 lb (25.5kg)
193808354502
wide vin yl printer
By Mark S.
All good so far, still trying to learn how to print multiples,
Great Valued Plotter
By Vince G.
Great plotter for the money! I've been working the heck out of it and stands up.
• Impress your clients with beautifully designed posters using the free and intuitive HP Poster Web app
• Easily access your files from cloud folders and print them using your smartphone with the HP Smart app
• Save money by printing in-house with HP's most affordable plotters
• Speed up your PDF printing process with free HP Click software
• Save space by placing the world's smallest plotters wherever they fit best in your office
• Save time by connecting and printing right away with built-in Wi-Fi

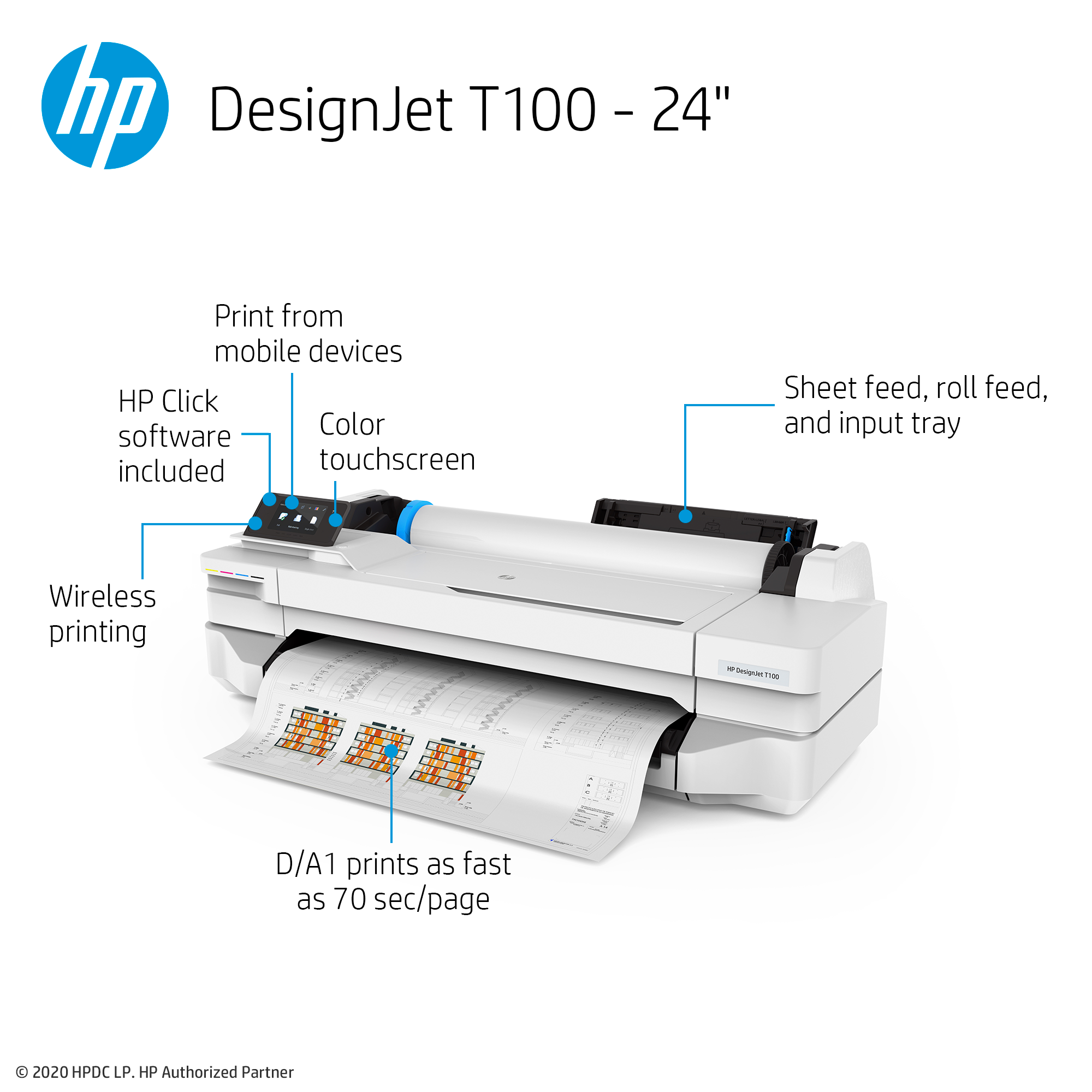

• Meet client expectations with high-quality, highspeed A1/D-size printing.
• Get perfectly matched color on both small- and large-format prints thanks to the built-in A3/A4 tray
Save space, time, and money with a compact plotter with built-in Wi-Fi that lets you print right away. Speed up the PDF printing process. Print from your smartphone with the HP Smart app. Get high quality and high speed.
Ideal for
Architect, engineering, and construction professionals working in home or small offices who need a compact, easy to use, affordable plotter in-house.
Media Sizes
8.3 to 24-in wide sheets; 11 to 24-in rolls
Media Handling
Sheet feed; roll feed; input tray; automatic cutter
Security Features
Print in-house with the world's smallest large-format plotters that are the perfect fit for your office, and your budget. You can count on radically simple printing and HP DesignJet quality.
Connectivity/Mobile Printing
Connectivity: Fast Ethernet (100Base-T); Hi-Speed USB 2.0; Wi-Fi.
Mobile Printing: Direct print from mobile apps on Android and Chrome OS; HP Smart app for iOS and Android
Print Speeds
Up to 70 sec/page on A1/D
Software Included
HP Smart app; Easily print project sets and PDF documents with HP Click printing software; Create posters using free premium photos, graphics & patterns with HP Poster App; HP DesignJet Utility for Mac and Windows.
Why to Buy
Discover savings, from your office space to your budget, with the world's smallest plotters. With built-in Wi-Fi, you can also save time by connecting and printing right away. Save money by printing in-house with HP's most affordable plotters.
