HP DesignJet Z6 Large Format PostScript Graphics Printer, 44" Inkjet, Advanced Security Features

SKU: IHPZ644 MFR: T8W16A
Earn VIP Reward Points

Key Features

  • Create stunning, high-resolution posters with the HP DesignJet Z6's precise color accuracy.
  • Print detailed maps and technical drawings using this wide-format printer's sharp line accuracy.
  • Enjoy fast Gigabit Ethernet connectivity for seamless integration into your existing network.
  • This HP DesignJet printer uses pigment-based inks for long-lasting, fade-resistant prints.
  • Safeguard sensitive data with advanced security features like secure disk erase and PIN printing.
  • Produce vibrant exhibition graphics quickly with print speeds up to 866 ft/hr on plain media.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$699.99

4 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-06-12T20:00:00

Rated 5 out of 5

HP Design Post Script Graphics Printer Z6 24 in

I tried this printer at a friend's house and if I could afford or justify the ROI for me I think it is a must have . Very reliable, speedy. I am definitely stopping by her house again to do my printing

sofitabolous40_3178

2025-05-04T20:00:00

Rated 5 out of 5

I'm learning...

This machine was-- very hard for me to operate. But thankfully I got some help with it from the neighbors. I'm still not proficient with it and they're feel somewhat unqualified to review. But I'm happy with the items we created. Things do ruin smoothly if you understand all commands. Is recommend for anyone who loves LARGE machines to try out and create cool stupid worth.

beruskav_1961

2025-02-22T19:00:00

Rated 5 out of 5

perfect

I have a HP design z6. I love it. It really print quality. With this model, I have seen good connection to print paper, information. About speed is quickly, quite. My husband love it.

huen3_2524

2025-01-28T19:00:00

Rated 5 out of 5

Gifted

Although I did not keep this and gifted to my friend who is a graphic designer she was shocked at the amazing good quality that this is! She raves about it daily

kelseyaustin_3736

2024-12-04T19:00:00

Rated 5 out of 5

perfect entry level large format printer

this printer is amazing with easy set up an assembly! ? this printer is perfect if you're a small creator that doesn't need a large level of printing. print times are decent with moderate speed. ? what's amazing is if you have any issues, you can reach out to support and they will help you instantly.

samanthao176_5267

2024-11-25T19:00:00

Rated 5 out of 5

Great entry level large format printer

There's a lot of great proa to this large format printer: The quality of the print is superb at a fraction of a cost and the print times are decent with a moderate print speed. This printer is reliable if you're a small creator that doesn't need industrial level printing. The best part is that if you encounter any issues you can reach out to support to get things sorted out.

hexendelx_47827

2023-03-16T20:00:00

Rated 5 out of 5

Easy Setup

Easy setup and assembly.

Paul G.

2022-12-27T19:00:00

Rated 2 out of 5

Slow and unreliable

I bought this printer about 4 months ago, and have already spent about 15 hours on the phone with tech support. After all these hours, tech support said I would just have to live with a constant error code. We have numerous designjet printers in our office, and for some reason this one gets a new error every week. The boot time is usually about 30 minutes and to put a new printhead in uses about 10% of the incredibly expensive ink.

Carole C.

2022-03-17T20:00:00

Rated 3 out of 5

Good for sublimation prints ??

Isn't his printer and cutter one you would suggest for a new business, vastly growing much quicker then expected. But can I print out sublimation or even DTF films??

Desi1983

2022-03-15T20:00:00

Rated 1 out of 5

Save your money

Print quality is good, however the printer shuts off by itself and take 15+ minutes to turn back on. I have a slightly older, larger format Designjet z5600 as well, and it never fails. It is always on and when it needs to reboot does it promptly. If I had known this printer would not stay turned on and took 15+ minutes to reboot I would have saved myself the $3300 for the printer and extra ink and went elsewhere.

jbeach

2021-08-18T20:00:00

Rated 3 out of 5

Great Graphics, Slow boot

The slowest printer I have used to boot up. Is it too much software for the processor? Great graphics if you aren't in a hurry.

MyCadIssue

2020-05-07T20:00:00

Rated 2 out of 5

Print quality is only fair

I was hoping for better quality With 6 ink cartridges I expected much better quality from the Z6 than my 17 year old HP500. This printer is not worth the extra money it costs over basic large format printers.

Rick M.

2020-05-07T20:00:00

Rated 2 out of 5

Nice Unit - but........

Nice features, good price. I through an error code right out of the box. HP has opted sending a tech to fix versus sending a new printer. The Tech has been out 3 times now, almost drained all of our toner printing test pages, and we have yet to print for ourselves. The pages the Tech prints are beautiful!! Just can't wait to get the issues resolved. I wish HP would have just sent a new unit - or at least toner cartridges since they are expensive!!!

SDFCEM

2019-11-12T19:00:00

Rated 5 out of 5

HP DesignJet Z6

It replaced the HP Designjet T610 that we used for 12 years printing architectural drawings. Right out of the shipping box and after the initial setup we printed several sets of drawings. I am very impressed with the new advanced features as shown on the keypad. I know for certain my next printer or plotter will be a HP!

Henry D.

2019-07-07T20:00:00

Rated 3 out of 5

Good printer with bad software

Printer came in well packaged and was relatively easy to put together. Initial setup was rough due to bad software and counter intuitive procedures. I installed everything, including ink and print heads before starting up the printer for the first time, and had to remove them and restart the printer a few times in order to complete the setup. Printer takes a long time to restart, they could have equipped it with an SSD at this price point. During initial setup, there is a section that tries to trick you into allowing the printer to spy on you. It is not obvious that you can opt out of it. Tracking usage and phoning back home should never be "opt-out", this is a shady practice and makes me less likely to consider HP products in the future. Printer requested firmware to be updated after initial setup was completed. I already had that downloaded (it's a whopping 1.6 gigabytes) and the update went smoothly. Printer drivers installed without problems on multiple PC's running Linux, Windows 7 and Malware 10, and work fine so far. Print speed and quality are excellent. The biggest problem we encountered so far is with the printer's software. We had a number of prints where the printer was requesting a paper different from what was loaded and it was impossible to leave that screen to change the paper or cancel the print. The only option was to load the paper we don't have or turn off the the printer and start it up again. That is very annoying since printer takes a long time to start up again. That is not the only situation where you run into screens that you can't get out of without restarting the printer completely, and the lack of any physical buttons to cancel printing or return to home menu adds to the frustration. The good thing is, that software can be fixed. Question is, if that will ever happen.

Feda

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP DesignJet Z6 Specifications

Print
  • Max print speed

    866 ft 2/hr (80.5 m 2/hr ) on plain media

  • Color images

    Normal: 202 ft 2/hr (18.8 m 2/hr) on coated media
    Best: 104 ft 2/hr (9.7 m 2/hr) on glossy media

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (borderless on select media, or on all media with V-Trimmer4) (5 x 5 x 5 x 5 mm (borderless on select media, or on all media with V Trimmer)
    Sheet: 0.2 x 0.67 x 0.2 x 0.2" (5 x 17 x 5 x 5 mm)

  • Ink Types

    Pigment-based

  • Ink Cartridges

    6 (cyan, magenta, yellow, matte black, photo black, chromatic red)

  • Ink Drop

    7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)

  • Printheads

    3 universal printheads (valid for all colors)

  • Line Accuracy

    +/-0.1%

  • Minimum line width

    0.0008 in (0.02 mm) (PDF addressable @ 1200 dpi)

  • Guaranteed minimum line width

    0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))

Image quality

Jump to...
  • Short-term color stability

    < 1 dE2000 in less than 5 minutes

  • Long term print-to print repeatability

    Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

  • Maximum optical density

    4 L min/2.5 D

  • Handling

    Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)

  • Size

    Sheet size: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
    Roll size: 11 to 44"; ( 279 to 1118mm))
    Standard sheets: A4, A3, A2, A1, A0

  • Grammage

    80 to 500 g/ sq. m

  • Thickness

    Up to 31.5 mil (Up to 0.8 mm)

Applications

Jump to...
  • Applications

    Banners; Exhibition and event graphics; Light boxes - film; Maps; Orthophotos; Point of sale/ display; Posters

  • Memory

    128 GB (virtual); 500 GB self-encrypting hard disk

Connectivity

Jump to...
  • Interfaces

    Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port

  • Print languages (standard)

    Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

  • Mobile printing features

    Direct print from mobile apps for iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.

  • Drivers

    Raster and PostScript drivers for Windows and macOS; PDF driver for Windows

Security features

Jump to...
  • Security features

    HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/ Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypted HDD, PIN printing

Software included

Jump to...
  • Software included

    Printer drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, HP MPS

Environmental ranges

Jump to...
  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating Humidity

    20 to 80% RH

  • Consumption

    < 100 W (printing); < 32 W (ready); < 0.3 W (sleep) (< 6.5 W with embedded Digital Front End); 0.1 W (off)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 2 A max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)

  • Environmental

    ENERGY STAR; ErP; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver

General

Jump to...
  • Dimensions (W x D x H)

    71 x 27.4 x 39.3"(1802 x 695 x 998mm)

  • Weight

    189 lbs (86kg)

  • UPC Code

    192018667563

20 Accessories for HP DesignJet Z6 Large Format PostScript Graphics Printer, 44" Inkjet, Advanced Security Features

  • All Accessories (20)
  • Extended Warranty (4)
  • Ink (6)
  • Take-up Reel (1)
  • Installation Service (1)
  • Lan Adapter (1)
  • Adapters & Mounts (1)
  • Spindle (1)
  • PrintHead (1)
  • Printer Paper (4)

About HP DesignJet Z6

FEATURED REVIEWS

HP DesignJet Z6

By Henry D.

It replaced the HP Designjet T610 that we used for 12 years printing architectural drawings. Right out of the shipping box and after the initial setup we printed several sets of drawings. I am very impressed with the new advanced features as shown on the keypad. I know for certain my next printer or plotter will be a HP!

HP Design Post Script Graphics Printer Z6 24 in

By sofitabolous40_3178

I tried this printer at a friend's house and if I could afford or justify the ROI for me I think it is a must have . Very reliable, speedy. I am definitely stopping by her house again to do my printing

Z6 44

Industry Standard Quality From HP.

Produce prints with clear details and high-contrast color with high-definition HP printheads—no need for light inks with dual drop technology. Get smooth gradients with HP Pixel Control. HP Vivid Photo Inks provide water-/fade-resistant prints.

Industry Standard Quality From HP.

Maximize Your Productivity.

Handle complex files with powerful processing architecture and the Adobe PDF Print Engine. Print up to 20% faster with 2400 nozzle-per-inch HP printheads. Cut maps to different sizes in fewer steps with an integrated vertical trimmer.

Maximize Your Productivity.

Your Workflow, Protected.

Built-in security features—like HP Secure Boot, whitelisting, authentication solutions, and HP JetAdvantage Security manager—help safeguard your printers and your data and preserve confidentiality.

Your Workflow, Protected.

Where precision meets performance, the HP DesignJet Z6 Large Format PostScript Graphics Printer delivers exceptional print quality and advanced security features, making it an ideal choice for professional photographers, graphic designers, and print service providers. Equipped with innovative high-definition HP printheads, this printer ensures that every detail is captured with clarity and vibrant, high-contrast colors. The HP Pixel Control technology facilitates smooth gradients, while the integrated vertical trimmer enhances efficiency by streamlining the finishing process.

This versatile printer supports media sizes ranging from 11 to 44 inches, accommodating a variety of printing needs. It offers flexible media handling options, including roll feed, top sheet feed, media output bin, and an automatic horizontal cutter, ensuring seamless operation for diverse projects.

Security is paramount with the HP DesignJet Z6, featuring robust measures such as HP Secure Boot, Whitelisting, Role-Based Access Control, and SNMPv3. Additional security protocols include HTTPS, Secure-IPP, IPsec/Firewall, Certificates Management, 802.1X, and TLS 1.0/1.1/1.2. The printer is compatible with HP Web Jetadmin and HP JetAdvantage Security Manager, and it offers Secure Disk Erase (DoD 5220.22-M), Secure File Erase, self-encrypted HDD, and PIN printing for enhanced data protection.

Connectivity is seamless with Ethernet, Fast Ethernet, Gigabit Ethernet, and USB Type-A host port options. Mobile printing is made easy with direct print capabilities for mobile apps on iOS, Android, and Chrome OS, along with email printing via HP ePrint and the HP Smart app.

With print speeds of up to 916 sq ft/hr, the HP DesignJet Z6 is designed to handle even the most complex files efficiently. The included software suite, featuring printer drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, and HP DesignJet Utility with HP Color Center, ensures comprehensive management and optimization of your printing tasks.

Choose the HP DesignJet Z6 for its ability to deliver more quality with fewer inks, producing high-definition output that consistently meets professional standards. Its advanced features and secure data handling make it a reliable partner for your creative and business endeavors.

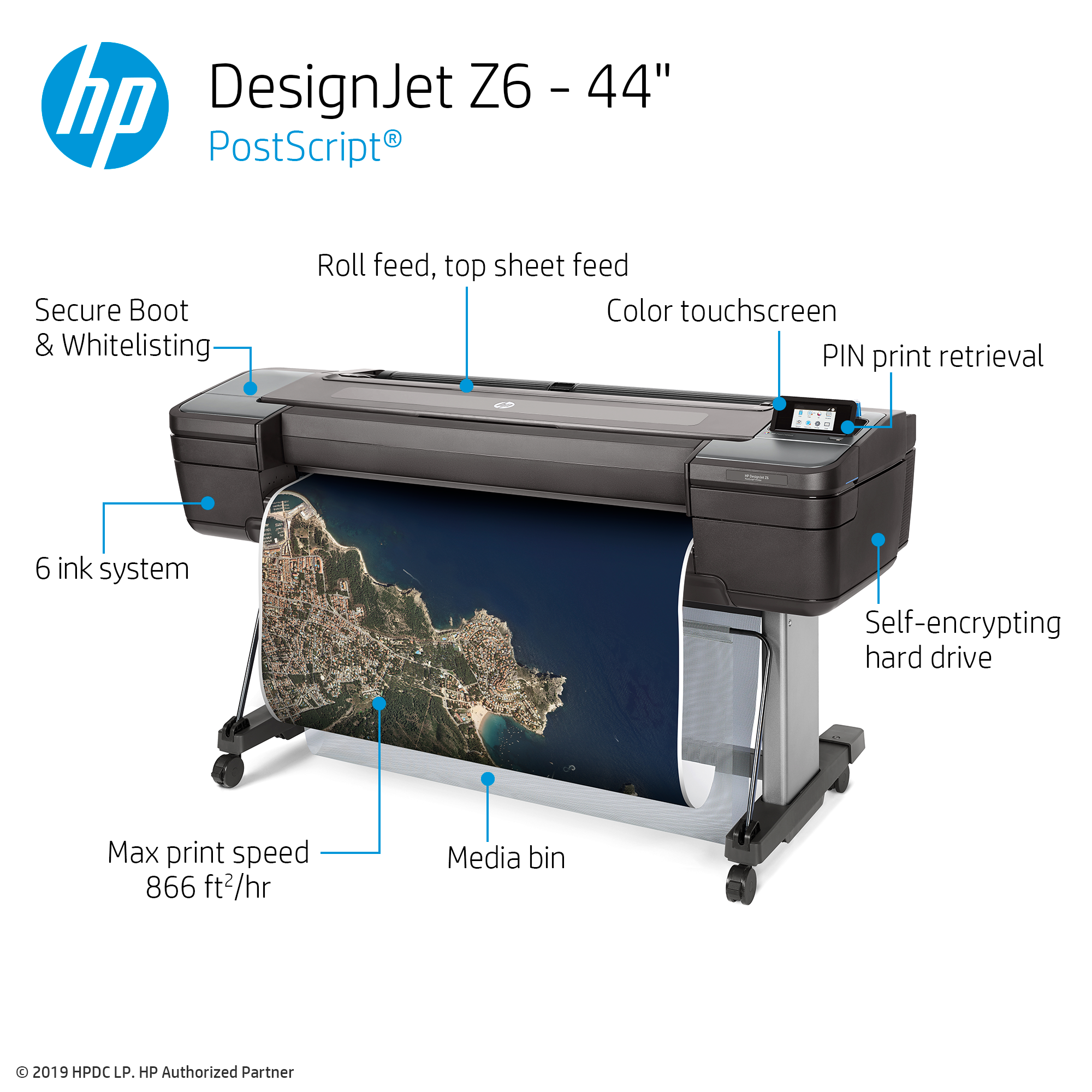

HP DesignJet Z6 Features

  • Color images: print speed: 202 ft 2/hr
  • HP Thermal Inkjet; 6 ink system
  • Automatic roll feed, cut sheet feeder, 500 GB HDD, touchscreen display
  • FCC Class A emissions - for use in commercial environment

Key Features

  • Create stunning, high-resolution posters with the HP DesignJet Z6's precise color accuracy.
  • Print detailed maps and technical drawings using this wide-format printer's sharp line accuracy.
  • Enjoy fast Gigabit Ethernet connectivity for seamless integration into your existing network.
  • This HP DesignJet printer uses pigment-based inks for long-lasting, fade-resistant prints.
  • Safeguard sensitive data with advanced security features like secure disk erase and PIN printing.
  • Produce vibrant exhibition graphics quickly with print speeds up to 866 ft/hr on plain media.

What's in the box:

  • HP DesignJet Z6 Large Format PostScript Graphics Printer (44 ")
  • Printheads
  • Introductory Ink Cartridges
  • Printer Stand
  • Media Bin
  • Spindle
  • 3" Core Adapter
  • Quick Reference Guide
  • Setup Poster
  • Power Cord
  • HP 1 Year Limited Warranty
