What type of media can the DesignJet Z6610 handle?

The DesignJet Z6610 can handle media sizes ranging from 11 to 60 inches. It features a roll feed, an automatic horizontal cutter, and a take-up reel for efficient media handling.

What are the security features of the DesignJet Z6610?

The DesignJet Z6610 comes equipped with a range of security features including SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, and Secure disk erase.

What is the connectivity of the DesignJet Z6610?

The DesignJet Z6610 features a Gigabit Ethernet (1000Base-T) and an EIO Jetdirect accessory slot for easy integration into your network.

What software is included with the DesignJet Z6610?

The DesignJet Z6610 comes with a suite of software including printer drivers, HP Click, HP Applications Center, and HP DesignJet Utility including HP Color Center.

What is the print speed of the DesignJet Z6610?

The DesignJet Z6610 can print at speeds of up to 1500 ft square/hr on plain media.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HP DesignJet Z6610 Specifications

Print
  • Maximum Print Speed

    1500 ft square/hr (140 m square/hr) on plain media

  • Color Images

    Normal: 1.5 min/page on A1/D or up to 283 ft square/hr (26.3 m square/hr) on coated media
    Best: 3.2 min/page on A1/D or up to 141 ft square/hr (13.1 m square/hr) on glossy media

  • Print Resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink Types

    Pigment-based

  • Ink Cartridges

    6 (Cyan, magenta, yellow, light gray, matte black, photo black)

  • Printheads

    6 (Cyan, magenta, yellow, light gray, matte black, photo black)

Image Quality

Jump to...
  • Short Term Color Stability

    < 1 dE2000 less than 5 minutes

  • Long term print-to-print repeatability

    Average: < 0.5 dE2000, 95% of colors < 1.25 dE2000

  • Maximum Optical Density

    4.5 L min/2.31 D

  • Handling

    Roll feed, automatic horizontal cutter, take-up reel

  • Roll Size

    11 to 60" (280 to 1524mm)

  • Weight

    Up to 460 g/m square

  • Thickness

    Up to 22 mil (Up to 0.6mm)

Applications

Jump to...
  • Applications

    Exhibition and event graphics; Graphics design; Indoor posters; Layouts and comps; Light boxes - paper; Line drawings; Maps; Office Graphics; Orthophotos; Photo maps; Photos; Point of sale/display; POP/POS; Posters; Presentations; Renderings; Schematics; Technical presentations

  • Memory

    64 GB (virtual); 500 GB hard disk

Connectivity

Jump to...
  • Interfaces

    Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot

  • Print Languages (Standard)

    HP-GL/2, HP-RTL, CALS G4

  • Print Languages (Optional)

    Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG

  • Drivers

    Raster drivers for Windows and macOS; PostScript drivers for Windows and macOS with optional PostScript/PDF Upgrade Kit

Security

Jump to...
  • Security Features

    SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, Secure disk erase

Software

Jump to...
  • Software Included

    Printer drivers, HP Click, HP Applications Center, HP DesignJet Utility including HP Color Center

Environmental Ranges

Jump to...
  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating Humidity

    20 to 80% RH

Acoustics

Jump to...
  • Sound Pressure

    53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)

  • Sound Power

    7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)

  • Consumption

    270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off)

  • Requirements

    Input voltage (auto ranging): 100 - 127 V (+/- 10%), 5 A; 220 - 240 V (+/-10%), 3 A; 50/60 Hz (+/-3 Hz)

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); Korea (KC)

  • Electromagnetic

    Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)

  • Environmental

    ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze

Physical

Jump to...
  • Dimensions (W x D x H)

    95.7 x 27.2 x 53.9" (2430 x 690 x 1370mm)

  • Weight

    419 lbs (190kg)

  • UPC Code

    192018991835

70 Accessories for HP DesignJet Z6610 Large Format Graphics Printer, 60" Inkjet

  • All Accessories (70)
  • Ink & Toner (6)
  • Upgrade Kits (1)
  • Printer Paper (61)
  • Photo Paper (2)

About HP DesignJet Z6610

6610

Industry Standard Quality From HP.

• Achieve high impact and clear readability from line drawings to posters, with optimized printheads.
• Maintain high quality with optimized maintenance routines.
• Work without concern for damage with water-/fade-resistant prints by HP Vivid Photo Inks

Industry Standard Quality From HP.

Maximize Your Productivity.

• Manage high workloads with print speeds up to 212 ft square/hr on glossy and 548 ft square/hr on plain paper.
• Handle more jobs with 500 GB hard disk capacity.
• Complete job after job with long media rolls, 775-ml HP ink cartritges, and a builtin take-up reel.

Maximize Your Productivity.

Office & Budget Perfection With Free HP Click Software.

• Seamlessly integrate with the marketleading software.
• Improve operator efficiency with HP SmartStream job preparation and processing software.
• Enjoy one-click printing with HP Click printing software

Office & Budget Perfection With Free HP Click Software.

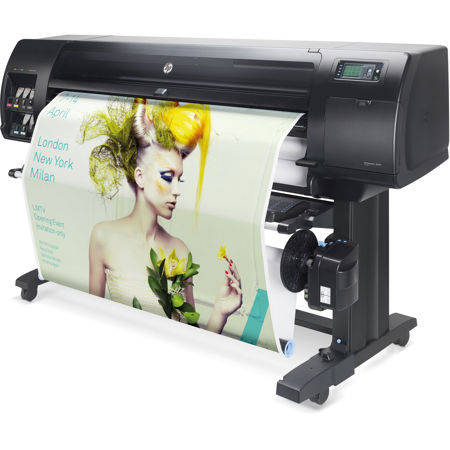

Be at the forefront of high-impact, durable printing solutions with the DesignJet Z6610 Large Format Graphics Printer. This 60" inkjet printer is engineered to deliver everything from detailed line drawings to vibrant posters, making it a versatile addition to any professional setting.

Designed to manage high workloads and production peaks, the DesignJet Z6610 is a reliable workhorse that can handle the demands of Print Service Providers and corporate reprographic departments. It's an ideal solution for those seeking to produce low-volume, short-term signage with high-quality text and graphics, all while ensuring fast turnaround times.

This large format printer supports media sizes ranging from 11 to 60 inches, offering flexibility for various printing needs. It features a roll feed, an automatic horizontal cutter, and a take-up reel for efficient media handling.

Security is a top priority with the DesignJet Z6610. It comes equipped with a range of security features including SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, and Secure disk erase, ensuring your data is protected at all times.

Connectivity is seamless with the DesignJet Z6610. It features a Gigabit Ethernet (1000Base-T) and an EIO Jetdirect accessory slot for easy integration into your network.

Experience impressive print speeds of up to 1500 ft square/hr on plain media, ensuring your projects are completed in a timely manner. The printer comes with a suite of software including printer drivers, HP Click, HP Applications Center, and HP DesignJet Utility including HP Color Center.

In summary, the DesignJet Z6610 Large Format Graphics Printer is more than just a printer. It's the fastest graphics production printing solution that's designed to handle production peaks and seamlessly integrates into your current workflow, making it a valuable asset for any business.

HP DesignJet Z6610 Features

  • Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
  • Roll feed, automatic horizontal cutter, take-up reel

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • High-impact 60" inkjet printer for professional-grade line drawings and posters
  • Robust media handling with roll feed, automatic cutter, and take-up reel
  • Advanced security protocols including SNMPv3 and IPsec for data protection
  • Gigabit Ethernet and EIO Jetdirect slot for seamless network connectivity
  • Rapid print speeds up to 1500 ft/hr on plain media for efficient production
  • Comprehensive software suite with HP Click and DesignJet Utility included

What's in the box:

  • HP DesignJet Z6610 Large Format Graphics Printer (60 ")
  • Spindle
  • Printheads
  • Introductory Ink Cartridges
  • Maintenance Cartridge
  • Printer Stand
  • Take-Up Reel
  • 3" Spindle Adapter
  • Quick Reference Guide
  • Setup Poster
  • Power Cord
  • HP 1 Year Limited Warranty
