HP DesignJet Z6dr Large Format PostScript Graphics Printer, 44" Inkjet, Dual-Roll, Vertical Trimmer

SKU: IHPZ6DR44 MFR: T8W18A
Earn VIP Reward Points

Key Features

  • Create stunning, high-resolution posters with up to 2400 x 1200 optimized DPI.
  • Experience efficient workflows with the HP DesignJet's impressive print speed.
  • Handle various media types and sizes, from 8.3 x 11" sheets to 44" rolls.
  • Enjoy precise and accurate prints with a minimum line width of just 0.0008".
  • Safeguard sensitive data with advanced security features, including secure boot.
  • Easily manage your printer and print jobs with included HP Web Jetadmin software.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$749.99

3 Year

$1,124.99

4 Year

$1,249.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

bob c : is there a one year or more warranty?ANDREW R : What's in the box: DesignJet Z6dr 44" PostScript Printer with V-Trimmer Printheads Introductory Ink Cartridges Printer Stand and Media Bin Spindle 3" (7.62cm) Core Adapter Quick Reference Guide Setup Poster Power Cord HP 1 Year Limited Hardware Warranty

Reviews about this item

Review Summary

2023-08-09T20:00:00

Rated 5 out of 5

Fantastic z6dr printer

Fantastic printer. Upgraded from an epson 24inch T printer to expand my art printing abilites and the z6dr is awesome. The print quality is extremely sharp and colour reproduction is spot on. I was a little worried from the negative reviews but I have not had any issues with mine. The V trimmer is fantastic and well worth it along with the dual roll feature.

Aussiedudeee

2023-02-08T19:00:00

Rated 4 out of 5

Good, but no use for right vertical trimmer - causes issues a LOT!

We've had this for quite a few years. Love the double roll option as we are always using different size rolls. The only problem I have with it is with the right vertical trimmer. I don't understand why there has to be a right vertical trimmer, it only trims a small amount of paper. Because of this, the paper sometimes won't properly enter the right vertical trimmer. If there was only a left vertical trimmer, it could just use the right side of the paper like it normally does when not using the vertical trimmers. Why was the printer not made like this? It would make more sense to only have one vertical trimmer.

QUE2U

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HP DesignJet Z6dr Specifications

Print
  • Max print speed

    866 ft 2/hr (80.5 m 2/hr ) on plain media

  • Color images

    Normal: 202 ft 2/hr (18.8 m 2/hr) on coated media
    Best: 104 ft 2/hr (9.7 m 2/hr) on glossy media

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (borderless on select media, or on all media with V-Trimmer4) (5 x 5 x 5 x 5 mm (borderless on select media, or on all media with V Trimmer)
    Sheet: 0.2 x 0.67 x 0.2 x 0.2" (5 x 17 x 5 x 5 mm)

  • Ink types

    Pigment-based

  • Ink cartridges

    6 (cyan, magenta, yellow, matte black, photo black, chromatic red)

  • Ink drop

    7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)

  • Printheads

    3 universal printheads (valid for all colors)

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008 in (0.02 mm) (PDF addressable @ 1200 dpi)

  • Guaranteed minimum line width

    0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))

Image quality

Jump to...
  • Short-term color stability

    < 1 dE2000 in less than 5 minutes

  • Long term print-to print repeatability

    Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

  • Maximum optical density

    4 L min/2.5 D

  • Handling

    Dual-roll: two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)

  • Size

    Sheet size: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
    Roll size: 11 to 44"; ( 279 to 1118mm))
    Standard sheets: A4, A3, A2, A1, A0

  • Grammage

    80 to 500 g/ sq. m

  • Thickness

    Up to 31.5 mil (Up to 0.8 mm)

Applications

Jump to...
  • Applications

    Banners; Exhibition and event graphics; Light boxes - film; Maps; Orthophotos; Point of sale/ display; Posters

  • Memory

    128 GB (virtual); 500 GB self-encrypting hard disk

Connectivity

Jump to...
  • Interfaces

    Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port

  • Print languages (standard)

    Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

  • Mobile printing features

    Direct print from mobile apps for iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.

  • Drivers

    Raster and PostScript drivers for Windows and macOS; PDF driver for Windows

Security features

Jump to...
  • Security features

    HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/ Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypted HDD, PIN printing

Software included

Jump to...
  • Software included

    Printer drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, HP MPS

Environmental ranges

Jump to...
  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating Humidity

    20 to 80% RH

  • Consumption

    < 100 W (printing); < 32 W (ready); < 0.3 W (sleep) (< 6.5 W with embedded Digital Front End); 0.1 W (off)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 2 A max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)

  • Environmental

    ENERGY STAR; ErP; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver

General

Jump to...
  • Dimensions (W x D x H)

    71 x 27.4 x 39.3"(1802 x 695 x 998mm)

  • Weight

    189 lbs (86kg)

  • UPC Code

    192018667617

19 Accessories for HP DesignJet Z6dr Large Format PostScript Graphics Printer, 44" Inkjet, Dual-Roll, Vertical Trimmer

  • All Accessories (19)
  • Extended Warranty (3)
  • Ink (6)
  • Take-up Reel (1)
  • Installation Service (1)
  • Lan Adapter (1)
  • Adapters & Mounts (1)
  • Spindle (1)
  • PrintHead (1)
  • Printer Paper (4)

About HP DesignJet Z6dr

FEATURED REVIEWS

Fantastic z6dr printer

By Aussiedudeee

Fantastic printer. Upgraded from an epson 24inch T printer to expand my art printing abilites and the z6dr is awesome. The print quality is extremely sharp and colour reproduction is spot on. I was a little worried from the negative reviews but I have not had any issues with mine. The V trimmer is fantastic and well worth it along with the dual roll feature.

Z9dr 44

Industry Leading Precision From HP.

Read details more clearly and see high-contrast colour with new high-definition HP printheads. No need for light inks with HP's dual drop technology. Get smooth gradients, even for challenging colour combinations, with HP Pixel Control. Work with water- and fade-resistant prints, indoors and out, with HP Vivid Photo Inks.

Industry Leading Precision From HP.

Maximize Your Productivity.

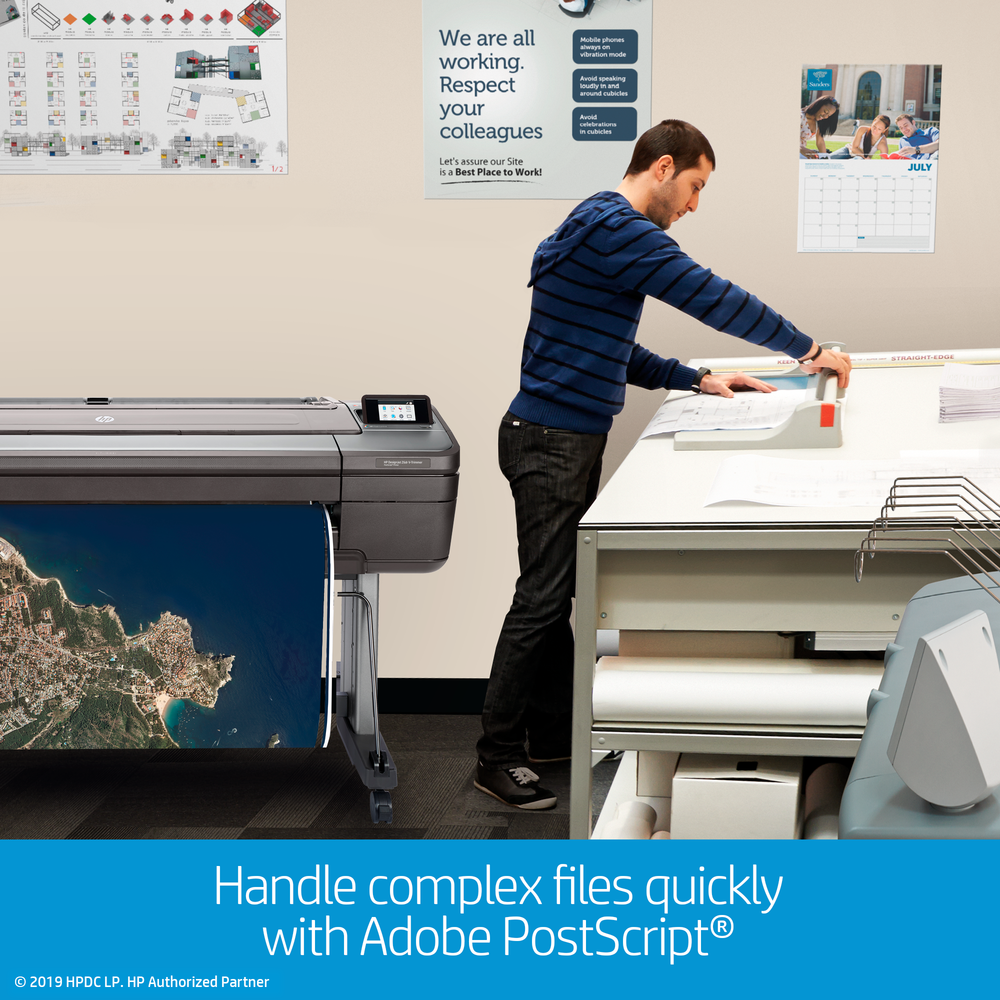

Handle even the most complex files with powerful processing architecture and the Adobe PDF Print Engine. Cut maps to different sizes in fewer steps with the first printer including an integrated vertical trimmer. Print up to 20% faster with 2400 nozzle-per-inch, high-definition HP printheads. Spend less time on media changes and adjustments with dual roll support and automatic roll switching

Maximize Your Productivity.

Your Work, Protected.

Protect printers/data from unauthorised access with HP Secure Boot, whitelisting, and encrypted hard disk. Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers. Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin.

Your Work, Protected.

When it comes to professional printing, the DesignJet Z6dr Large Format PostScript Graphics Printer stands out with its 44" inkjet technology and dual-roll system. This printer is equipped with new high-definition HP printheads, allowing you to read details more clearly and appreciate high-contrast color. The HP Pixel Control feature ensures smooth gradients, enhancing the quality of your prints.

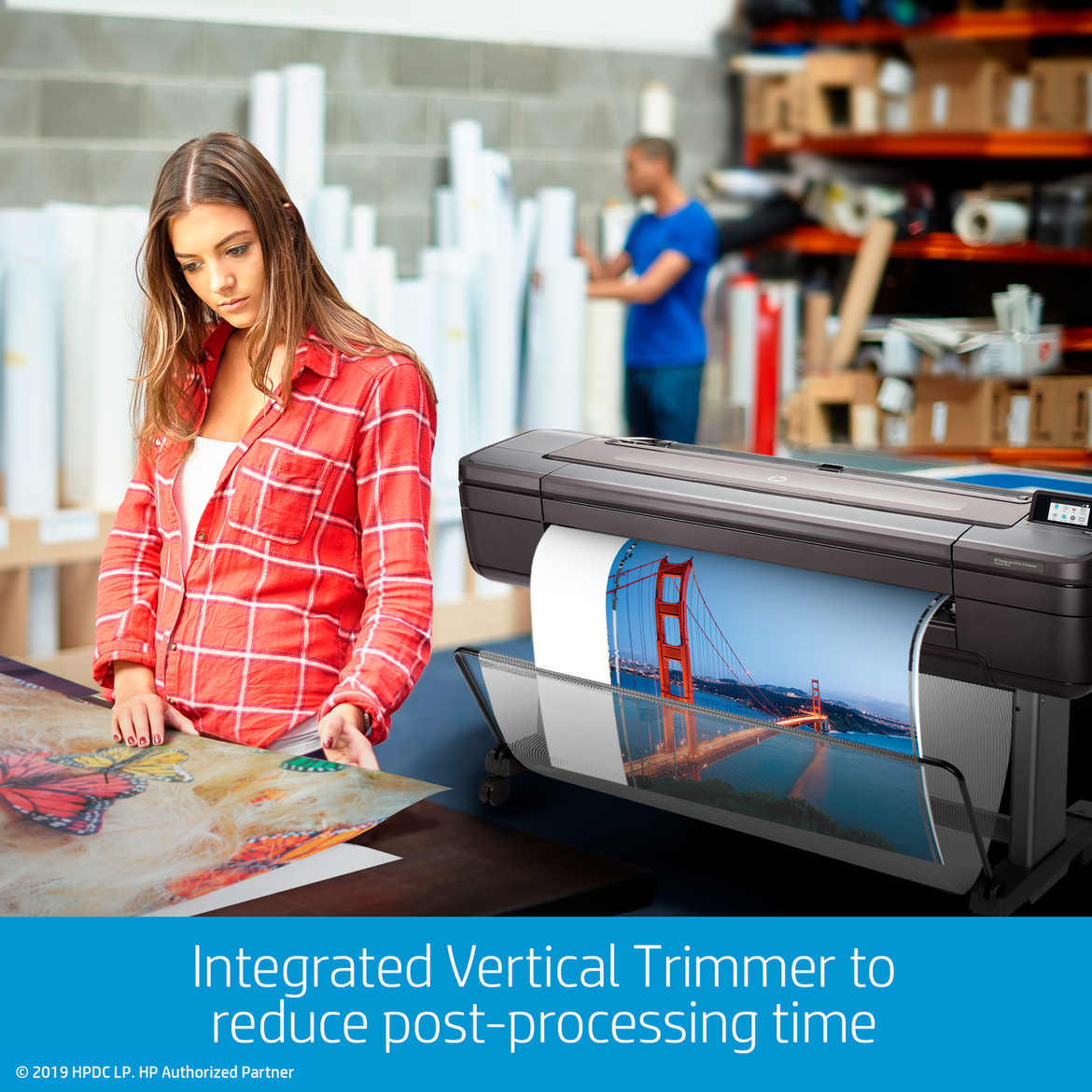

This printer is not just about high-quality prints; it's also about efficiency. The integrated vertical trimmer streamlines the finishing process, making it an ideal choice for professional photographers, graphic designers, and print service providers who consistently need to create high-impact indoor prints with accuracy.

The DesignJet Z6dr can handle media sizes ranging from 11 to 44 inches. Its media handling capabilities include two automatic roll feeds, smart roll-switching, a top sheet feed, a media output bin, and an automatic horizontal cutter. The vertical trimmer is capable of cutting all HP Z-series printer-qualified media, including most canvas types.

Security is a priority with this printer. It comes with features like HP Secure Boot, Whitelisting, Role Based Access Control, and SNMPv3. It also supports HTTPS, Secure-IPP, IPsec/Firewall, and Certificates management. For network security, it is equipped with 802.1X, TLS 1.0/1.1/1.2, and is compatible with HP Web Jetadmin and HP JetAdvantage Security Manager. It also includes Secure Disk erase (DoD 5220.22-M), Secure File erase, a self-encrypted HDD, and PIN printing.

Connectivity options include Ethernet, Fast Ethernet, Gigabit Ethernet, and 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab), along with a USB Type-A host port. For mobile printing, it supports direct print for mobile apps for iOS, Android, and Chrome OS, and email printing with HP ePrint and HP Smart app for iOS and Android.

The DesignJet Z6dr boasts impressive print speeds of up to 916 ft 2/hr. It comes with software like printer drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, and HP MPS.

In summary, the DesignJet Z6dr Large Format PostScript Graphics Printer offers more quality with fewer inks for high-definition output. It's designed to handle even the most complex files, and comes with built-in security features to help you protect your work and your information.

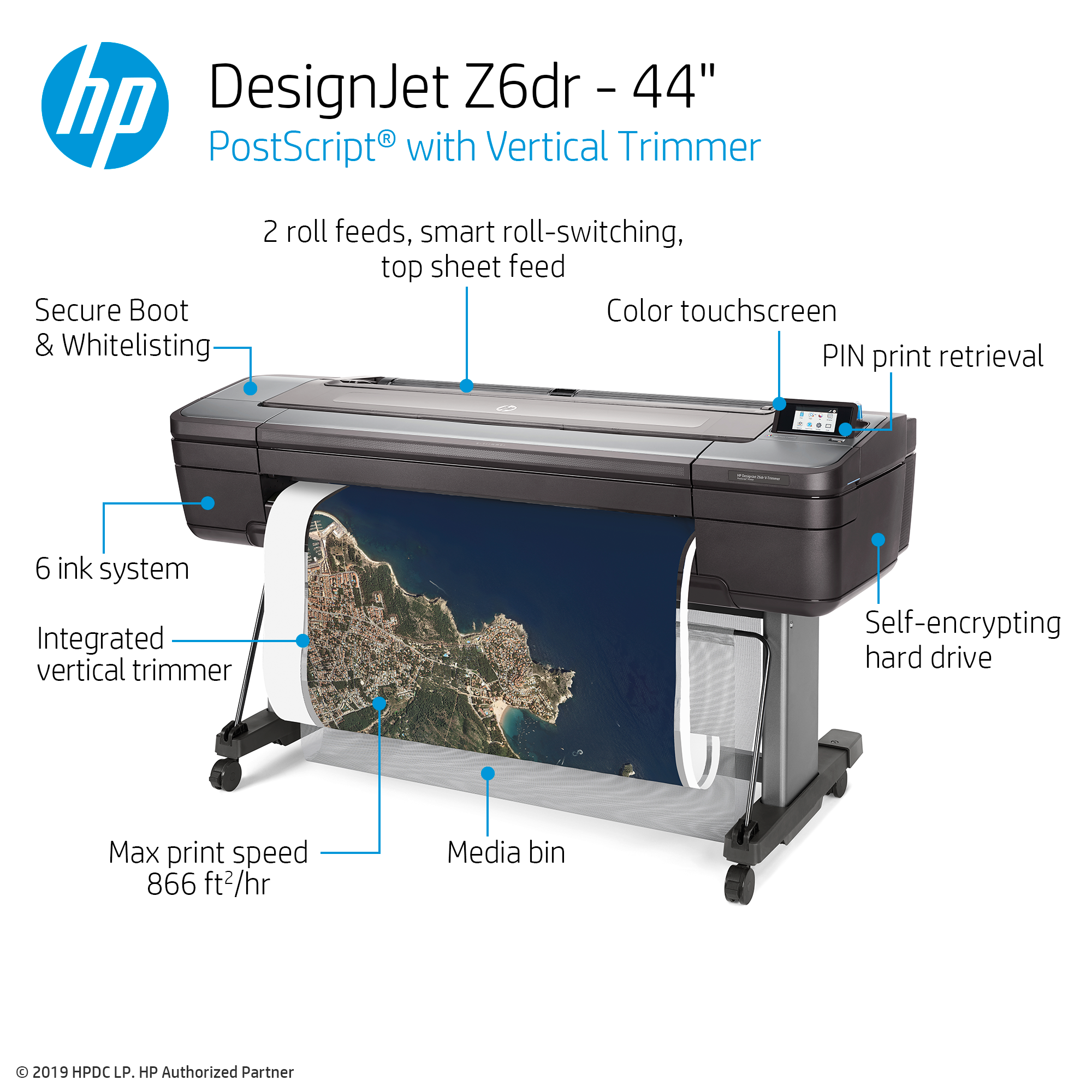

HP DesignJet Z6dr Features

  • Color images: print speed: 202 ft 2/hr
  • HP Thermal Inkjet; 6 ink system
  • Dual roll feed, cut sheet feeder, 500 GB HDD, touchscreen display
  • FCC Class A emissions - for use in commercial environment

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Create stunning, high-resolution posters with up to 2400 x 1200 optimized DPI.
  • Experience efficient workflows with the HP DesignJet's impressive print speed.
  • Handle various media types and sizes, from 8.3 x 11" sheets to 44" rolls.
  • Enjoy precise and accurate prints with a minimum line width of just 0.0008".
  • Safeguard sensitive data with advanced security features, including secure boot.
  • Easily manage your printer and print jobs with included HP Web Jetadmin software.

What's in the box:

  • HP DesignJet Z6dr Large Format Dual-Roll PostScript Graphics Printer (44 ")
  • Printheads
  • Introductory Ink Cartridges
  • Printer Stand
  • Media Bin
  • Spindle
  • 3" Core Adapter
  • Quick Reference Guide
  • Setup Poster
  • Power Cord
  • HP 1 Year Limited Warranty
