Ikelite Underwater Housing with Olympus Tough TG-5 Camera and Strobe Deluxe Kit

SKU: IK623308

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-03-14T12:46:03

Rated 2 out of 5

Lens hits lens port

When I tested the setup before using the housing, the lens hit the lens port some of the time, but not every time. I limited the use of the zoom to avoid this problem once in the water. I handed the camera to my wife and she did not know about the limit. When she zoomed all the way out the lens hit. The instructions say to to press the on off button to restart if this happens. This did not fix the problem. I had to return to the boat and remove the camera from the case to reset the camera. This is the only underwater case I have used that had this problem, and if I had known of the problem before purchase I would not have spent $ on this case.

Barry B.

2017-02-28T10:52:55

Rated 5 out of 5

Incredible photos!

I have no point of comparison, as this is the first camera housing I've bought. I've used it on two dives so far (70' and 30') and the photos I took were flawless. The Ikelite was incredibly easy to use and the seals felt great, so I wasn't worried about my camera.

STEVEN B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ikelite Underwater Housing Specifications

Underwater Housing

Underwater Housing

Jump to...
  • Depth Rating

    200' (60m)

  • Control Type

    Mechanical push-buttons, knurled knobs/dials, and levers

  • Controls

    Afford access to all camera functions except for Log Switch

  • Material of Construction

    Body: Polycarbonate and ABS plastic blend
    Controls: Hard-anodized aluminum and acetal plastic

  • Lens Port

    Built-in, flat glass port

  • Buoyancy

    Slightly positive in fresh water

  • External Flash Connector

    2x Fiber-optic ports for attaching optional, external strobes (cables not included) Optional #4401.1 Fiber-Optic Converter and #4501 Fiber Optic Cord enable connection of Ikelite DS strobes

  • Mounting

    1/4"-20 threaded mounts with 3.0" (76mm) spacing for connecting optional tray with handle(s)

  • Dimensions

    Housing: 6.2 x 4.4 x 3.7" (15.8 x 11.2 x 9.4cm)
    Lens Port Diameter: 3.0" (76mm)

  • Weight

    1.1 lb (0.5kg)

TG-5 Camera: Imaging

Jump to...
  • Pixels

    12 Megapixel

  • Sensor

    1/2.3" CMOS

  • Bit Depth

    12-Bit

  • File Formats

    Still Images: JPEG, RAW
    Movies: MOV

  • Max Resolution

    4000 x 3000

  • Aspect Ratio

    4:3

  • Image Stabilization

    Sensor-Shift

TG-5 Camera: Optics

Jump to...
  • Lens

    Effective Focal Length: 4.5 to 18mm (35 mm Equivalent: 25 to 100mm)
    Aperture: f/2 (W) to f/4.9 (T)

  • Zoom

    Optical: 4x

  • Focus Range

    Normal: 3.94" (10cm) to Infinity
    Macro: 0.39"(1cm) to Infinity

TG-5 Camera: Exposure Control

Jump to...
  • ISO Sensitivity

    Auto, 100 to 12800

  • Shutter

    1/2 to 1/2000 Second
    4 to 0 Second in Night Scene Mode

  • Exposure Modes

    Modes: Aperture Priority, C1, C2, Intelligent Auto, Movie, Program, Scene Modes, Underwater
    Compensation: -2 EV to +2 EV (in 1/3 EV Steps)

  • Continuous Shooting

    Up to 20 fps at 12 MP for up to 14 Exposures (Raw Format)
    Up to 20 fps at 12 MP for Unlimited Exposures (JPEG Format)
    Up to 10 fps at 12 MP for up to 14 Exposures (Raw Format)
    Up to 10 fps at 12 MP for Unlimited Exposures (JPEG Format)
    Up to 5 fps at 12 MP for up to 49 Exposures (Raw Format)
    Up to 5 fps at 12 MP for Unlimited Exposures (JPEG Format)

  • Self-Timer

    2, 12 Sec

  • Interval Recording

    Yes

TG-5 Camera: Flash

Jump to...
  • Flash Modes

    Auto
    Auto/Red-Eye Reduction
    Fill-In
    Manual
    Off
    Slow Sync
    Slow Sync/Red-Eye Reduction

  • Built-In Flash

    Yes

TG-5 Camera: Memory

Jump to...
  • Built-In Memory

    55 MB

  • Memory Card Type

    SD
    SDHC
    SDXC

TG-5 Camera: Recording

Jump to...
  • Video Recording

    Yes, NTSC/PAL

  • Resolution

    3840 x 2160p: 30 fps, 25 fps
    1920 x 1080p: 120 fps, 60 fps, 50 fps, 30 fps, 25 fps
    1280 x 720p: 240 fps, 30 fps, 25 fps
    640 x 480p: 480 fps

TG-5 Camera: Video

Jump to...
  • Video Clip Length

    Up to 29 Minutes

  • Audio Recording

    Built-In Mic: With Video (Stereo)

TG-5 Camera: Viewfinder/Display

Jump to...
  • Screen

    3.0" LCD Rear Screen (460,000 Pixels)

  • Screen Coverage

    100%

TG-5 Camera: Connectivity/System Req.

Jump to...
  • Connectivity

    HDMI D (Micro), USB 2.0 Micro-B, USB 2.0

  • Wi-Fi

    Yes, Wi-Fi 4 (802.11n) Built In

  • GPS

    Yes

TG-5 Camera: Environmental

Jump to...
  • Waterproofing

    49.2' (15.0m)

TG-5 Camera: Power

Jump to...
  • Battery

    1x LI-92B Rechargeable Lithium-Ion Battery Pack
    3.6 VDC, 1350 mAh

TG-5 Camera: Physical

Jump to...
  • Dimensions (W x H x D)

    4.4 x 2.6 x 1.3" (113.0 x 66.0 x 31.9mm)

  • Weight

    8.82 oz (250g) with battery and memory card

DS-51 Underwater Substrobe Head

Jump to...
  • Configuration

    Strobe head only

  • Guide No.

    56 Surface, 28 Underwater

  • Power Rating

    50 Watt/seconds

  • Coverage Angle

    70 Degree (28mm Lens Coverage)
    80 Degree with diffuser

  • Depth Rating

    300' (90m)

  • Flash Modes

    TTL, Manual

  • Exposure Control

    Six manual power settings in one-half f-stop increments

  • Slave

    No

  • Targeting Light

    No

  • Audible Signal

    No

  • Color Temperature

    5700 Degree K

  • Recycle Time

    3.5 Seconds

  • Flashes (Full Power)

    Approx. 200

  • Power Source

    4x AA Batteries

  • Mount

    Ikelite 1" Ball Mount Mark II (included) for connection to optional ball arms

  • Dimensions

    3.2 x 3.2 x 4.7" (81 x 81 x 119mm)

  • Weight (Land)

    1.3 lb (0.59kg)

Action Tray II with Left Handle

Jump to...
  • Material of Construction

    Tray: Anodized aluminum alloy
    Handle: Aluminum, ABS, and rubber

  • Mounting

    Connects to housings with the following mounts: 12-24 threaded holes with 3.0" (76mm) spacing
    Central 1/4"-20 threaded holes

  • Weight

    10.5 oz (299g)

Compact 1" Ball Arm

Jump to...
  • Material of Construction

    Aluminum with hard type III anodized finish

  • Length

    Arm Extension: 7.0" (17.8cm)
    With Clamps and QR Mount: Approx. 14" (35.6cm)

  • Diameter

    Ball Mounts: 1.0" (2.5cm)

LI-92B Rechargeable Lithium-Ion Battery

Jump to...
  • Capacity (Wh)

    4.9 Wh

  • Amp-Hours

    1350 mAh

  • Chemistry

    Lithium-Ion

  • Output Voltage

    3.6 VDC

CB-USB8 Cable

Jump to...
  • Cable Length

    26.0" (66.04cm)

F-5AC Adapter

Jump to...
  • Charging Port

    1x USB

  • Dimensions

    1.3 x 0.9 x 2.4" (32 x 23 x 60mm)

  • Weight

    1.2 oz (33g)

  • UPC Code

    883711057194

About Ikelite Underwater Housing

FEATURED REVIEWS

Incredible photos!

By STEVEN B.

I have no point of comparison, as this is the first camera housing I've bought. I've used it on two dives so far (70' and 30') and the photos I took were flawless. The Ikelite was incredibly easy to use and the seals felt great, so I wasn't worried about my camera.

The TG-5 is one of our favorite cameras to shoot underwater and we're sure it will be one of yours too. This kit provides everything you need to hit the water and start taking super sharp, vibrant photos.

Olympus Tough TG-5 Camera
The TG-5 has a fast 25-100mm mid-range zoom lens with a macro mode that can provide DSLR-quality super macro results. The TG-5 supports ultra HD 4K video and RAW image capture, which is a powerful tool for post-dive color corrections using either Adobe Lightroom or the included software. The TG-5 is waterproofed to 50' (15.2m) even without a housing, which makes set-up a little less stress-inducing

ULTRA Compact Underwater Housing
This housing is designed for a deeper depth rating and more robust handling than the comparable Olympus brand model. The front of the lens port has a standard 67mm thread for the direct attachment of most popular wide angle and macro wet lenses. Controls are provided for all important camera functions. A side-mounted trigger-type shutter lever is more comfortable to use than top mounted styles.

DS51 Strobe with RC1 TTL Receiver
The DS51 strobe with RC1 TTL Receiver are the perfect companions to the TG-5 system. The RC1 allows the camera to communicate timing information directly to the DS51 strobe. Compared to other slave TTL systems, the RC1 provides more accurate exposure, improves camera battery life, and allows you to take more photos faster. The DS51 accepts 4 AA batteries (not included) and is super compact and lightweight.

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water.

Action Tray II with Quick Release Handle
The included tray is designed to be super slim and streamlined for comfortable use underwater and ease of travel. The Quick Release Handle features a cushy rubber over-molded grip and our signature quick detachment point for the included ball arm.

The housing's shutter trigger lever may be extended using the optional Trigger Extension # 4077.93 for more comfortable use when using a Right-Hand Quick Release Handle # 2605.05 (extension and right-hand handle sold separately).

The hard anodized aluminum ball arm is more flexible and versatile than arms using pop bead style or "flex" components. The ball arm system provides a huge variety of mounting options for attachment of optional focus lights and other accessories.

Wide Angle, Macro + Filters
Our 3" diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The DC1 6" Dome Port # 6401 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 25mm wide angle, full zoom through and macro capabilities, and is perfect for split shots (half-in, half-out of the water).

The WD-3 Wide Angle Dome # 6430.3 attaches to the front of the standard port and provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens # 6430, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port. 3" diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6" diameter color filter. Refer to the product page for information on color filter compatibility.

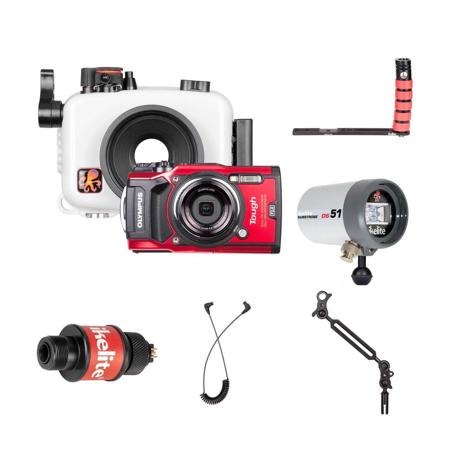

What's in the box:

  • Underwater Housing
  • DS51 Strobe
  • Compact Ball Arm
  • RC1 TTL Receiver
  • Fiber Optic Cord
  • Action Tray II with Left-Handle
  • Olympus Stylus Tough TG-5 Digital Camera (Red)
  • Olympus LI-92B Rechargeable Lithium-Ion Battery (3.6V/1350mAh)
  • Olympus CB-USB8 Cable (26 ")
  • Olympus F-2AC AC Adapter
  • Olympus Wrist Strap
  • Olympus Software CD-ROM
  • Ikelite 2 Year Limited Warranty
