Ikan Lyra 1x1 90W Bi-Color Studio Soft LED Panel 3-Light Kit with DMX Control

SKU: IALBX103PTK MFR: LBX10-3PT-KIT
Earn VIP Reward Points

Key Features

  • Achieve stunning visual fidelity with CRI 97 color accuracy, perfect for professional photo and video shoots.
  • Easily adjust your lighting from warm 3200K to cool 5600K with versatile bi-color temperature control.
  • Experience broad, even illumination thanks to the 110-degree beam angle, ideal for studio lighting setups.
  • Take command of your light intensity with built-in dimming and DMX control for precise adjustments.
  • Enjoy quiet operation with the passive cooling system, ensuring no fan noise interferes with your audio.
  • Set up quickly and securely with the robust 1-1/8" stud and 5/8" receiver fixture mount.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Ikan Lyra 1x1 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    3

  • Fixture Type

    Light Panel

  • Photometrics

    110 Degree at 3200K:
    202 fc / 2178 Lux at 3.3' (1m)
    90 fc / 968 Lux at 4.9' (1.5m)

    110 Degree at 4400K:
    239 fc / 2538 Lux at 3.3' (1m)
    105 fc / 1128 Lux at 4.9' (1.5m)

    110 Degree at 5600K:
    231 fc / 2491 Lux at 3.3' (1m)
    103 fc / 1107 Lux at 4.9' (1.5m)

  • Color Accuracy Standard

    CRI 97

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    3200 to 5600K

  • Display

    Yes

  • Beam Angle

    110 Degree

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    Built-In Dimmer / DMX

  • Water Resistance/IP Rating

    N/A

Connectivity

Jump to...
  • Remote Control Type

    N/A

  • Mobile App Compatible

    N/A

Battery

Jump to...
  • Battery Connection

    N/A

  • Battery

    N/A

  • Battery Charging

    N/A

  • Power Source

    AC to DC Adapter (Included)

  • Power Consumption

    90W

  • AC Input Power

    110-220VAC

  • DC Input Power

    14 to 18 VDC

  • Output Power

    15VDC @7.0A

Mounting

Jump to...
  • Fixture Mount

    Support Mount: 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

  • Accessory Mount

    Front: Proprietary

Physical Details

Jump to...
  • Panel Size

    14 x 14"

  • Dimensions

    14 x 14 x 3" (35.6 x 35.6 x 7.6cm) (Each)

  • Weight

    6 lbs (2.7kg) (Each)

General

Jump to...
  • Country of Origin

    China

  • UPC Code

    847983033362

About Ikan Lyra 1x1

LBX10
Ikan introduces the Lyra soft lights! What you can expect when high CRI LED chips combined with a soft panel is a beautiful, soft wrapping light. What's unique about a Lyra soft light is how it creates a nice, clean shadow. The Lyra 1 x 1 soft light is equivalent to a 850-watt incandescent soft light. The soft light's variable color 3200K-5600K works well with any lighting production. It's brightness is consistent across all color temperatures. The 110-degree wide beam angle can easily light a large area by itself. The 30-degree yoke, baby 5/8" and junior 1 1/8" combo pin also allow you to configure or attach them to any stand.

Additionally, the yoke's strong steel tension knobs can securely lock the light in place at any angle. On the back, the large yellow control knob lets you adjust the light's brightness, color temperature, and DMX channels with just a few simple clicks. The LED readout provides extremely precise measurements for reference. You can also plug in the Lyra soft light practically anywhere thanks to its maximum 150 watts at 120VAC. Add to that Ikan's reliable barndoors with intensifiers and you can clearly see why Lyra DMX soft lights are the best value package!

Consistent Color and Brightness
The high CRI LED chips and 1/2-stop soft diffusion panel can output a strong, bright diffused light. The soft light's bi-color adjustability ranges from 3200K-5600K and works well with any lighting production. The Lyra soft light's wide beam angle provides a large amount of soft light all on its own. Please note that the light will not operate correctly if the diffusion panel is damaged or removed.

Industry Standard Combo Pin
The Baby 5/8" / Junior 1-1/8" Combo Pin adapter with a right angle receiver hole allows for the use of any grip stand.

LED Readout & Single Knob Control
Users can easily adjust the brightness or DMX, on the fly by using the single control knob on the back of the lights. The new bright LED readout gives you a quick reference of the light's output.

Yoke Design
The 30-degree angled yoke provides unobstructed movement of the light. The steel tension knobs securely lock the light in place at any angle.

110 Degree Beam Angle & Single Shadow
The wide 110 Degree beam angle gives you plenty of soft light and a more natural shot with a single shadow.

Ikan Lyra 1x1 Features

  • 97 CRI Chip LEDs paired with 1/2 stop soft diffusion panel
  • Bi-Color adjustable from 3200K-5600K
  • Bright consistent light across all color temperatures
  • Beam Angle of Soft panel 110 degrees
  • A Clean single shadow without the artifacts
  • DMX512 In and Out (5 Pin)
  • Baby 5/8"/Junior 1-1/8 Combo Pin adapter with right angle receiver hole
  • 30 degree angled yoke for unobstructed movement
  • Stronger steel tension knobs for locking the light into place
  • Single knob control for adjusting color, brightness or DMX
  • New LED Readout screen giving you precise adjustments
  • Included barn doors with intensifiers
  • Watts equivalent to 850 watts incandescent soft light

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve stunning visual fidelity with CRI 97 color accuracy, perfect for professional photo and video shoots.
  • Easily adjust your lighting from warm 3200K to cool 5600K with versatile bi-color temperature control.
  • Experience broad, even illumination thanks to the 110-degree beam angle, ideal for studio lighting setups.
  • Take command of your light intensity with built-in dimming and DMX control for precise adjustments.
  • Enjoy quiet operation with the passive cooling system, ensuring no fan noise interferes with your audio.
  • Set up quickly and securely with the robust 1-1/8" stud and 5/8" receiver fixture mount.

What's in the box:

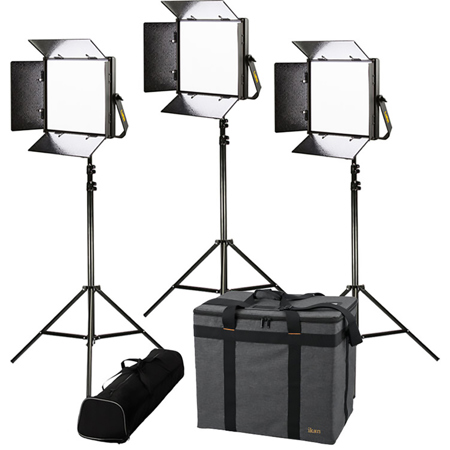

  • 3x Ikan Lyra 1x1 90W Bi-Color Studio Soft LED Panel Light with DMX Control
  • 3x Yoke Mount
  • 3x Power Supply with Cable
  • 3x HD Light Stands
  • Stand Bag
  • Light Bag
  • Ikan 1 Year Limited Warranty
