AC Input, 50/60Hz, 100-120/200-240V +/-10%
Max. 135W
AC100-120V: 1.4A max
AC200-240V: 0.7A max
DC IN: Max.76W (+12VDC )
0 to 35 deg. C / 32 to 95 deg. F
20 -85% non condensing
-20 to 60 deg. C / -4 to 140 deg. F
5 -85% non condensing
9U
3G-SDI/HD-SDI/SD-SDI ( 4:2:2 ) Input x2ch ( BNC ) HD-SDI/SD-SDI(4:2:2) Output x1ch(BNC)
NTSC/PAL-B Input x2ch(BNC/Loop-Through)
Single Link 24p(Female) Input x1ch TMDS 50Ohms
RCA pin Input x2ch, 0dBV max.
Auto Format Switching, Sampling Frequency 48KHz Monitoring audio for one pair of channels selected from ch1/2, ch3/4, ch5/6, ch, 7/8 or DOWNMIX is possible with built-in stereo speakers.
Stereo(from RCA pin 2-input or de-embedded audio from HD/SD SDI input) 1W + 1W or more
OLED (Organic Light-Emitting Diode) panel
1920(H) x 1080(V) dot
178 Degree (CR 10:1 or more)
1.07 billion colors (RGB - 10bits)
5000:1 (Typical)
More than 250cd/m2
14.4(H)x8.1(V) inch
23.03 x 15.67 x 4.05" / 58.5 x 39.8 x 10.29cm
Without stand and options: 25.13lbs / 11.4kg

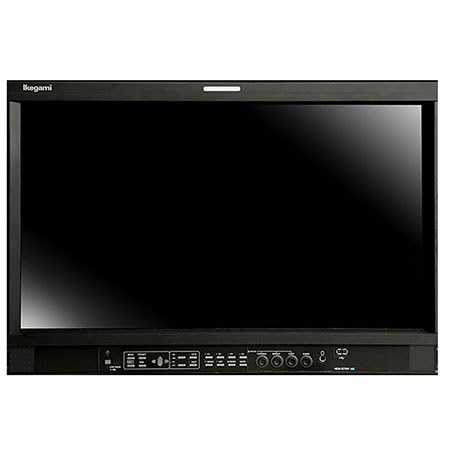

The Ikegami HEM-2570W is the next generation grade-1 monitor with high performance OLED panel. The HEM series incorporate various functions to ensure ideal reference monitoring for a wide range of outside and studio production applications.
