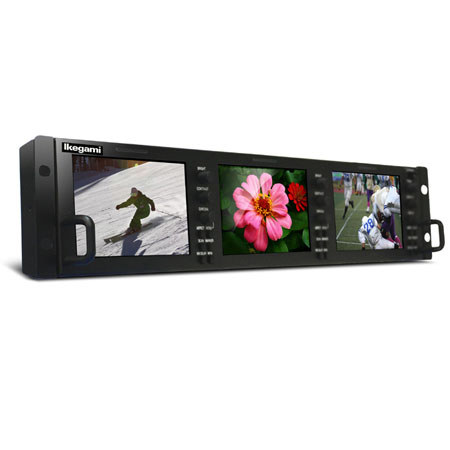

Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor, 800x480 Resolution, 600:1 Contrast Ratio, 300cd/m2 Brightness

SKU: IKHLM5003WR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of signal inputs does the Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor support?

This monitor supports SD-SDI, HD-SDI, and 3G-SDI Multi-Format Signal Inputs, making it compatible with a wide range of video formats.

What is the resolution of this LCD monitor?

The Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor has a resolution of 800 x 480, offering clear and detailed image quality.

What special features does this LCD monitor offer for professional broadcasting?

This monitor comes with a built-in Title Generator, Waveform Display, and Vector Scope. These features provide a comprehensive set of tools for professional broadcasting.

Can this monitor be used in well-lit environments?

Yes, with a brightness level of 300cd/m2, this monitor is suitable for use in well-lit environments.

Is the Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor easy to install?

Yes, this monitor has a rack-mount design, which allows for easy installation and setup in a variety of different environments.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor Specifications

  • LCD

    TFT-LCD(IPS)

  • Active Area

    108.02x64.8, 5"(Diagonal Wide)

  • Resolution

    800(H)x480(V)

  • Pixel Pitch

    0.135(H)x0.135(V)

  • Color Depth

    16.7M, 24bit true color

  • Luminance(cd/m2)

    100

  • Contrast Ratio

    500:1

  • Input

    SMPTE-424M
    SMPTE-292
    SMPTE-259M
    1xBNC

  • Output

    SMPTE-424M
    SMPTE-292
    SMPTE-259M
    1xBNC(Loop through)

  • Supported Video format

    SMPTE 425M-AB - 1080p(60/59.94/50)
    SMPTE 274M - 1080i(60/59.94/50)
    1080p(30/29.97/25/24/23.98)
    1080PsF(30/29.97/25/24/23.98)
    SMPTE 296M - 720p(60/59.94/50/30/
    29.97/25/24/23.98)
    SMPTE 125M - 525i(NTSC, 480i60)
    ITU-R BT.601 -625i(PAL, 575i50)

  • Power

    10-19VDC

  • Power Consumption(W)

    Approx. 28.8W(12V,2.4A)

  • Operating Temperature

    32 F - 104 F (0deg.C-40deg.C)

  • Operating Humidity (%)

    30%-85%(Non-Condensing)

  • Storage Temperature

    - 4 F - 140 F (-20deg.C-60deg.C)

  • Storage Humidity (%)

    0%-90%

  • Dimensions (WxDxH)

    18.94x3.24x3.47" / 48.10x8.22x8.81cm

  • Weight

    3.97lbs / 1.80kg

About Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor

When it comes to professional broadcasting, the Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor stands out as a high-performance, rack-mount ready solution. This advanced monitor is equipped with SD-SDI, HD-SDI, and 3G-SDI Multi-Format Signal Inputs, ensuring compatibility with a wide range of video formats.

The monitor boasts a resolution of 800 x 480, powered by an LED Back Light panel, delivering crisp, clear images with exceptional detail. This high-quality display is further enhanced by a 600:1 contrast ratio, offering deep blacks and bright whites for a more immersive viewing experience.

In addition to its superior visual performance, this innovative LCD monitor also features an embedded audio level indicator capable of handling up to 16 channels. This allows for precise audio monitoring, ensuring the best possible sound quality.

The Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor also comes with a built-in Title Generator, Waveform Display, and Vector Scope. These advanced features provide users with a comprehensive set of tools for professional broadcasting, making it an ideal choice for control rooms, studios, and other professional settings.

With a brightness level of 300cd/m2, this durable monitor is suitable for use in well-lit environments, ensuring optimal visibility at all times. Its rack-mount design allows for easy installation and setup, making it a reliable choice for professionals who need to manage multiple monitors in a limited space.

Experience the difference of high-resolution, multi-format display with the Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor.

Ikegami 5" Triple HDTV/SDTV Multi-Format LCD Monitor Features

  • 4:3/16:9 screen aspect ratio switch
  • Underscan (3%)/Normal switch
  • H/V Delay switch
  • Various Markers: Area / Safety Markers
  • Embedded Audio Level Indicator (8ch) on top screen
  • Tally Light x 3
  • Title Generator
  • Blue only/Mono selection
  • Time Code Display
  • Waveform Display
  • Vector Scope Display
  • Adjustment and selection: Brightness / Contrast / Chroma / Aperture / Color Temp / Backlight adjustment
  • Tilt Adjustment up to 90 degrees
  • EIA 19-inch Rack Mount Type
  • Rack Height 2RU

Key Features

  • Experience superior clarity with this 5" Ikegami LCD monitor's vibrant 800x480 resolution.
  • Ensure accurate colors for critical viewing with this production monitor's exceptional color depth.
  • Enjoy versatile connectivity with multiple format support including SMPTE-424M and SMPTE-292.
  • Compact and lightweight design at just 3.97lbs, perfect for on-the-go video production monitoring.
  • Operate reliably in diverse conditions, from 32°F to 104°F, ideal for field production environments.
  • Loop through functionality with BNC input/output, streamlining your video monitor workflow seamlessly.
