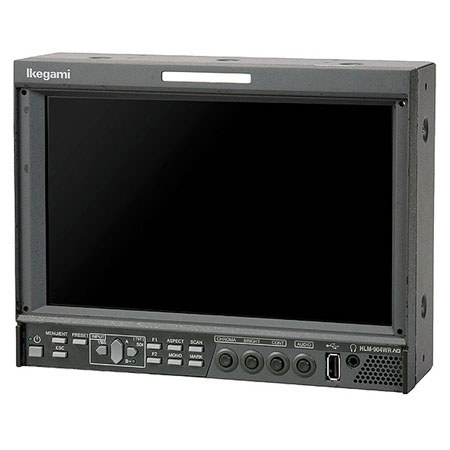

Ikegami 9" HDTV/SDTV Multi-Format LCD Color Monitor, 800x480 (WVGA) Resolution, 800:1 Contrast Ratio, 320cd/m2 Brightness

Ikegami 9" HDTV/SDTV Multi-Format LCD Color Monitor Features

• High-performance Liquid Crystal Panel: The monitor is equipped with a liquid crystal panel that is excellent in key properties such as high intensity, high contrast, wide field-view, fast response and accurate color reproduction
• Ready for Multi-format: The monitor is compatible with a wide variety of broadcast formats, with input signal automatically identified by the monitor itself
• Embedded Audio: Standard equipped with an embedded audio feature, the embedded audio signals multiplexed with DH SDI signal or SD SDI (4:2:2) signal can be automatically recognized and the audio output heard through the built-in monaural speaker, stereo headphone or stereo line-out
• Remote Control Functions: The monitor can be remote-controlled via two remote control functions. Depending on the place of installation and type of operation, the parallel or serial mode can be used. In addition to the conventional parallel remote control (pin assignment by user is possible)
• Various Built-in Markers: 4:3 (16:9 mode), 13:9, 14:9, 15:9 and 16:9 (4:3 mode) & 2.35:1 (16:9 mode) line markers can be displayed. The monitor also supports safety markers with every 1% step between 80% through 90% area & employs five-part split
• User Marker Display Function: Up to 10 different user markers, such as line and box markers, are presettable pixel by pixel to your desired positions and sizes. The data can then be copied to another monitor or stored in your PC
• Shadow Function: The shadow function is used to shade area other than the 4:3 (16:9 mode), 13:9, 14:9, 15:9, 16:9 (4:3 mode) marker area on an image. The shadow contrast can be set at 0%, 20%, 40%, 60% on the MENU
• Various Built-in Test Signals: The monitor comes equipped with a color bars signal, grayscale signal with pluge pattern and window signal, allowing for a variety of adjustments directly on the display
• Timecode Display Signal: It is possible to display the timecode (VITC) multiplexed into the SDI signal on the screen. The display comes in two sizes, large and small and its brightness in three levels
• Waveform Monitor/Vectorscope Display Function: A waveform monitor of the brightness signal can be displayed. The display comes in two sizes, NORMAL and SMALL and its brightness in three levels. The waveform can also be displayed in any of three selectable positions
• 2-picture Split Display Function: A previously captured still image and a currently incoming moving image can be displayed simultaneously on a split screen, so that just one monitor is needed to compare the images from two cameras side-by-side
• Dot-by-dot Display Function: All the picture elements of an input signal are displayed 1:1 according to the pixels of the LCD panel without scaling the incoming signal (enlarging or reducing the input signal according to the LCD pixels)
• External Memory Function: Various data (MENU settings, PRESET data, etc.) can be saved to USB memory and copied to a PC, ready to manage. Such data may also be copied to another monitor. (Keep in mind that when copying the PRESET data to another monitor, it may be different from monitor to monitor
• Space-saving Rack Mount Design: When used in a rack mount, most 10" CRT monitors require a height of 5U. At a height of only 4U, this monitor can be housed two at a time, which makes the 16:9 display equivalent to the screen size of a 9" monitor
• USB Mouse Control: By connecting a commercially available USB mouse to this monitor, it's possible to perform various adjustments including to the "MENU" setting," "PRESET data setting," "Input signal switching," and the "Front switch setting"
• Supports AC/DC/Battery Operation: The monitor uses a built-in AC power supply and DC input. It is also possible to use this monitor in studios, OB vans, or in the field using an optional battery adapter with handle
• 5.1 Surround Downmix Function: Among the 8 embedded audio channels, the 5.1 channel surround audio channel (Lm, Rm, C, Ls and Rs) has been selected for the stereophonic audio function at the downmix mixing ratio specified by ARIB and ISO/IEC
