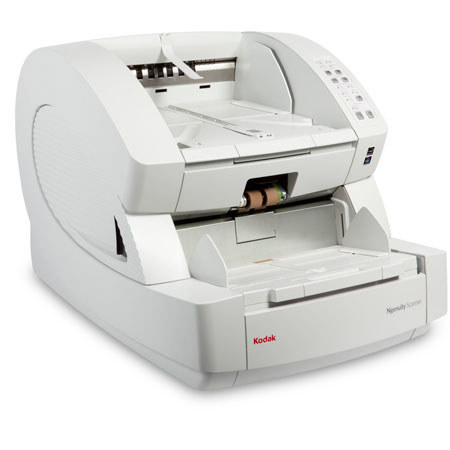

Kodak Ngenuity 9090DB Document Scanner, 90ppm/70ppm Speed, 600dpi Resolution, USB 2.0/ SCSI III, 700 Pages Feeder Capacity

SKU: IKKN9090DB MFR: 8914228
Earn VIP Reward Points

Key Features

  • Achieve peak efficiency with rapid sheetfed scanning at speeds up to 90ppm.
  • Rely on a robust 700-page ADF capacity for large batch scanning jobs effortlessly.
  • Capture every detail with a high 600dpi resolution, ensuring clear, crisp scans.
  • Enjoy seamless software compatibility with ISIS and TWAIN for versatile use.
  • Leverage duplex scanning to automatically capture both sides, saving time and resources.
  • Utilize ultrasonic multifeed detection to prevent errors and ensure accurate document capture.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kodak 9090DB Specifications

  • Max Document Scan Speed B/W

    90 ppm

  • Max Document Scan Speed Color

    70 ppm

  • Daily Duty Cycle

    90,000 pages per day

  • Roller Life (Bond Paper)

    600,000

  • Resolution

    Output: 600 dpi, Optical: 600 dpi

  • Camera Technology

    SharpShooter Trilinear 7.6k CCD

  • Lighting Technology

    White LEDs - Instant warm-up; designed to last the life of the scanner with normal use

  • Image Enhancement

    Onboard VRS Professional

  • Interface

    USB 2.0 (Cable Included); SCSI III

  • Supported Drivers (Included)

    ImageControls, ISIS and TWAIN through VRS Professional; direct ISIS, TWAIN

  • Multifeed Detection

    Ultrasonic Multifeed featuring: Three sensors, Preemptive Ignore, Ignore As Is, Ignore by Size

  • Imprinting

    Optional user-installable pre- and/or post-scan imprinter, time and date stamping, 72 characters

  • Document Size

    43x64mm (1.7x2.5") to 318x1016mm (12.5x40")

  • Document Size - Long Document Mode

    Up to 200 m (219 yards)

  • Maximum Image Width

    311 mm (12.25")

  • Paper Thickness-Rotary

    0.038-0.89 mm (.0015-.035")

  • Paper Thickness

    0.038-1.78 mm (.0015-.070") (Straight-Through Paper Path)

  • Paper Weight

    30-1,200 gsm (7 to 320 lb. bond)

  • Feeder Capacity

    700 documents - Variable Feeder Tray Capacity Control (75 gsm paper/20 lb. bond)

  • Power Requirement

    AC 100 - 120 V; 220 - 240 V; 50/60 Hz

  • Power Consumption: Maximum (Scanning)

    175 W

  • Power Consumption: Minimum (Standby)

    60 W

  • Power Consumption: Sleep (Energy Star)

    6.7 W

  • Temperature

    10deg.C to 38deg.C (50deg.F to 100deg.F)

  • Relative Humidity

    10% to 80%

  • Dimensions(HxWxD)

    49.5x52.1x76.2cm / 19.5x20.5x30"

  • Weight

    50.8kg / 112lbs

  • UPC Code

    041778914229

About Kodak 9090DB

Bring the power of advanced technology to your document management with the Kodak Ngenuity 9090DB Document Scanner. Engineered for superior performance, this high-tech scanner delivers optimal image quality, scanning a broader range of documents than any other scanner in its category.

Designed with a user-friendly interface and smart front panel functionality, the Ngenuity 9090DB is not just sophisticated, but also easy to operate. It's an ideal choice for diverse sectors, including healthcare, financial services, insurance, government, transportation, and service bureaus, streamlining their document digitization process.

This innovative scanner boasts a high resolution of 600dpi, ensuring high-quality scans of documents and images. With a remarkable scanning speed of 90ppm in black and white and 70ppm in color, it's built for efficiency, allowing you to scan large volumes of documents swiftly.

The state-of-the-art Ngenuity 9090DB also features a generous 700-page feeder capacity, reducing the need for frequent paper refills. It's compatible with both USB 2.0 and SCSI III, offering flexible connectivity options.

Constructed with durable parts, this scanner is designed for longevity. It also offers a low overall cost of consumables, making it a cost-effective solution for your scanning needs.

With the Ngenuity 9090DB Document Scanner, you're not just getting a device, but a suite of features that make a significant difference to your document management process. Save valuable time and ensure optimal image quality every time you scan with this advanced document scanner.

Kodak 9090DB Features

  • Productivity: In addition to fast speeds, Ngenuity features smart paper handling and large feeder tray capacity to improve efficiency and ensure that you spend less time hassling with document preparation
  • Ngenuity is a sprinter: Building on Kodak's long history of scanner innovation, It has equipped Ngenuity with everything you need to build more efficiency into your document management process
  • Scan the Widest Range of Documents: Equipped with a rotary and a straight pass through paper path, Ngenuity scans a wider range of documents than any other scanner in its class
  • Scan More, Scan Faster and Load Less: Ngenuity's high-capacity feeder tray holds 700 documents - 40 percent more than other scanners in its class - helping you spend more time scanning and less time loading documents
  • Bid Farewell to Multifeeds: Kodak uses Ultrasonic Multifeed Detection technology and with three independently controlled ultrasonic sensors to ensure that all of your documents are scanned correctly
  • Connect with Ease: With a USB 2.0 port and cable, Ngenuity makes it easy to connect to the PC and access much of the software and scanner functionality. For those who need it, Ngenuity is SCSI ready as well
  • Image Quality: SharpShooter camera technology and reliable LED lights team up to offer picture-perfect image quality and improve processing capabilities. Onboard image enhancement features further optimize image quality without sacrificing speed
  • The Ngenuity advantage: With industry-leading camera technology and long-lasting reliable LED lights, Ngenuity provides picture-perfect image quality every time you scan
  • Upgrade to High-Definition Images: Ngenuity's SharpShooter Trilinear CCD cameras join forces with the scanner's white LED lights to produce high-quality digital images consistently
  • Optimize Image Quality without Sacrificing Speed: VRS 4.2 Professional technology is built into the scanner's hardware. This means you get all of the advanced VRS image enhancement features and error resolution tools, including more precise image cropping and advanced color management
  • Low Cost of Scanning: Ngenuity features long-lasting parts, a low cost of consumables and comes with everything you need to start scanning. In other words, Ngenuity offers top value
  • Ngenuity is economical: Ngenuity's reliable, long-lasting parts ensure that you spend less time (and money) on consumables and maintenance and more time boosting your bottom line with a streamlined imaging operation
  • Keep Your Business Rolling with Long-Lasting Parts and Easy Maintenance: The CCD cameras are protectively sealed and able to withstand dust and the occasional staple. It features rollers that last for 600,000 scans, long-lasting LED light & cameras that need to be calibrated once or twice a year

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve peak efficiency with rapid sheetfed scanning at speeds up to 90ppm.
  • Rely on a robust 700-page ADF capacity for large batch scanning jobs effortlessly.
  • Capture every detail with a high 600dpi resolution, ensuring clear, crisp scans.
  • Enjoy seamless software compatibility with ISIS and TWAIN for versatile use.
  • Leverage duplex scanning to automatically capture both sides, saving time and resources.
  • Utilize ultrasonic multifeed detection to prevent errors and ensure accurate document capture.

What's in the box:

  • Kodak Ngenuity 9090DB Document Scanner
  • USB Cable
  • Installation Resource CD with Kodak Ngenuity Operator Utility (NOU) and VRS Professional
  • Power Cord
  • Starter Cleaning Kit
  • Camera Calibration Kit
  • Kodak 1 Year Limited Warranty
