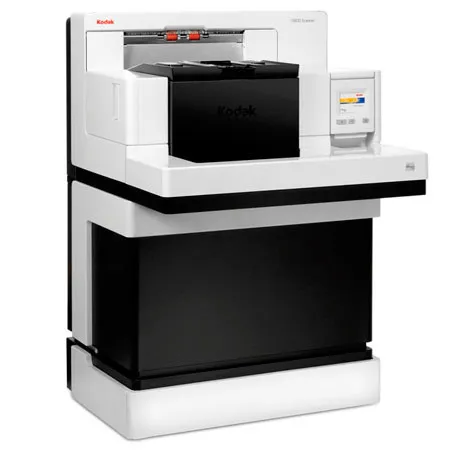

Kodak i5800 Sheetfed Scanner, 600 x 600 dpi, 210 ppm Mono/Color Scan Speed, USB, 750 Sheets ADF Capacity

SKU: IKKSI5800 MFR: 8870412
Earn VIP Reward Points

Key Features

  • Achieve peak efficiency with rapid 210 ppm color scan speeds using this sheetfed scanner.
  • Enjoy high-quality scans with 600 dpi resolution, perfect for detailed document imaging tasks.
  • Process large batches easily with a robust 750-sheet ADF capacity, saving valuable time.
  • This Kodak scanner features duplex scanning, capturing both sides in a single pass.
  • Seamlessly integrate with TWAIN, ISIS, and WIA drivers for broad software compatibility.
  • Digitize various document sizes, from 2.5"x2.5" to long documents up to 180" using this scanner.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kodak i5800 Specifications

  • ADF Capacity

    750 Sheets

  • Scanning Technology

    CCD

  • Optical Resolution

    600 dpi

  • Output resolution

    100 / 150 / 200 / 240 / 300 / 400 / 600 dpi

  • Illumination

    White LEDs

  • Maximum Document Width

    304.8 mm (12")

  • Long Document Mode Length

    Up to 4.6m (180")

  • Throughput

    210 ppm

  • Minimum Document Size

    63.5x63.5 mm (2.5" x 2.5")

  • Paper Thickness and Weight

    With standard feeder: 45 g/m2 (12 lb.) bond to 200 g/m2 (110 lb.) index
    With ultra-lightweight feeder accessory: 25 g/m2 (7 lb.) rice paper to 75 g/m2 (20 lb.) bond

  • Feeder/Elevator

    Automatic 750-sheet elevator design; automatic document feeder with four settings: continuous feed, 100-sheet, 250-sheet, 500-sheet and full 750-sheet batches

  • Multi-feed Detection

    5 independent ultrasonic zones

  • Connectivity

    USB 2.0 Hi-Speed Certified

  • Interface Support

    TWAIN, ISIS and WIA drivers, Kofax certified

  • Output Compression

    CCITT Group IV; JPEG or uncompressed output

  • Electrical Requirements

    100-240 V (international), 50/60 Hz

  • Power Consumption

    Sleep Mode < 4 watts; Running: < 250 watts; Standby: <1.0 watt

  • Environmental Factors

    2009 Energy Star qualified scanners, 2008 EuP

  • Acoustical Noise

    Standby mode: <44 dB(A); Scanning at 300 dpi <64 dB(A)

  • Recommended PC Configuration

    Microsoft Windows XP - P3 1 GHz, 1 GB RAM, USB 2.0
    Microsoft VISTA - P4 1 GHz, 1 GB RAM, USB 2.0
    Microsoft Windows 7 - P4 1 GHz, 2 GB RAM, USB 2.0

  • Dimensions

    106.7x130.8x69.3 cm / 42x51.5x27.3"

  • Weight

    186 kg (410 lbs.)

  • UPC Code

    041778870419

About Kodak i5800

Part of the Kodak i5000 Scanner Series, the i5800 Scanner delivers up to 210 ppm true performance (with all imaging features enabled) and provides a height-adjustable pedestal, offering the ideal scanning position for every operator. It's a better, ergonomically correct answer for superior production scanning, featuring Kodak Dynamic Flow Technology, Kodak breakthrough digital architecture that delivers optimized memory allocation and processing paths. It's a complete customizable solution aligned with end user business goals - only from Kodak, the high-volume market leader.

Kodak i5800 Features

  • Offers the ideal scanning position for every operator - through a height adjustable transport
  • Significantly reduces document prep and handling times - with problem free feeding of diverse batches and controlled stacking
  • Finds the fastest way to scan, perform imaging functions, extract data - via Kodak Dynamic Flow Technology
  • Improves accuracy with streak filtering - plus all the additional automated image enhancement features of Kodak's Perfect Page technology
  • Makes complex and repeat functions one-button easy - with programmable function keys
  • Achieves greater data integrity for OCR, IDR, validation and other functions - through capture of every bit of information at 600 dpi

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve peak efficiency with rapid 210 ppm color scan speeds using this sheetfed scanner.
  • Enjoy high-quality scans with 600 dpi resolution, perfect for detailed document imaging tasks.
  • Process large batches easily with a robust 750-sheet ADF capacity, saving valuable time.
  • This Kodak scanner features duplex scanning, capturing both sides in a single pass.
  • Seamlessly integrate with TWAIN, ISIS, and WIA drivers for broad software compatibility.
  • Digitize various document sizes, from 2.5"x2.5" to long documents up to 180" using this scanner.

What's in the box:

  • Kodak i5800 Sheetfed Scanner
  • Enhanced Printer Accessory
  • Manual Feed Shelf
  • Document Extenders 66.04 cm & 76.02 cm and 86.36 cm
  • Kodak Warranty
