IK Multimedia iRig Acoustic Stage Specifications

General

General

Jump to...
  • System Requirements

    Computers
    Mac: Mac OS X 10.6 or later. One free USB port. A USB to Micro-USB cable (sold separately) is required.
    Windows: Fully supports Windows 10 WASAPI for low latency audio. One free USB port. (ASIO4ALL is required on Windows 7 and 8 for low latency audio.) A USB to Micro-USB cable (sold separately) is required.

  • System Requirements (Contd.)

    iOS Devices
    Compatible with iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.

  • System Requirements (Contd..)

    A USB to Micro-USB cable (sold separately) and a Lightning to USB Camera Adapter (sold separately) are required.

    Android Devices
    Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
    A Micro-USB-OTG to Micro-USB cable (sold separately) is required.

iRig Acoustic Microphone

Jump to...
  • Microphone Type

    MEMS

  • Polar Pattern

    omnidirectional

  • Frequency Response

    30 Hz - 20 kHz, +/-3dB

  • Max SPL

    130dB SPL

  • Signal-to-Noise Ratio

    101 dBA

  • Maximum soundboard thickness

    0.16" (4mm)

Connections

Jump to...
  • Microphone Input

    2.5mm / 3/32" TS mono jack (Dedicated iRig Acoustic)

  • Input Connector

    6.3mm / 1/4" TS mono jack (AUX Instrument)

  • Input Impedance

    1 MOhms (AUX Instrument)

  • Analog Output Connector

    6.3mm / 1/4" TS mono jack, line-level, low impedance

  • Analog Output Impedance

    50 Ohms (can drive long cables without any loss)

  • Digital Output Connector

    Micro-USB

DSP/Interface

Jump to...
  • AD and DA Resolution

    32-bit

  • Sampling Rate

    48 kHz

  • Interface Output

    USB class compliant audio output via micro-USB port

  • Power

    battery power (2xAA), USB bus power

  • Battery Life

    approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)

  • Microphone cable length

    59.1" (150cm)

Battery

Jump to...
  • Battery Info

    required, included

  • Battery Material

    alkaline

  • Battery Quantity

    2

  • Battery Type

    AA

Physical

Jump to...
  • Dimensions

    DSP/Interface: 3.98 x 2.85 x 0.91" (101 x 72.3 x 23mm) (belt clip excluded)
    Microphone: 1.25 x 1.27 x 0.74" (31.7 x 32.2 x 18.8mm)

  • Weight

    DSP/Interface: 3.49 oz (99g) (batteries excluded)
    Microphone: 0.71 oz (20g)

  • UPC Code

    8025813700031

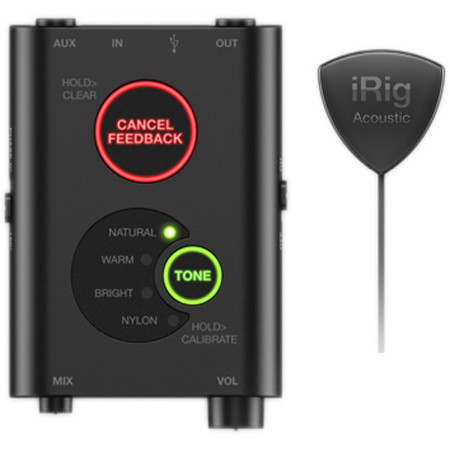

About IK Multimedia iRig Acoustic Stage

Bring your acoustic guitar's natural, vibrant sound to life with the iRig Acoustic Stage Advanced Digital Microphone System. This innovative system is the ultimate solution for capturing the true essence of your acoustic guitar with studio-quality sound, whether you're performing live on stage or recording in the studio.

The iRig Acoustic Stage combines a high-quality MEMS microphone with a state-of-the-art preamp and DSP processing unit to deliver a breakthrough in sound reproduction. Experience the full spectrum of your instrument's tone, from the deep resonance of the body to the subtle nuances of your playing style, all with unparalleled clarity and warmth.

Installation is a breeze with the iRig Acoustic Stage. Simply clip the compact MEMS microphone to your guitar's soundhole and connect it to the preamp processor. From there, you can plug the preamp directly into your amplifier, mixer, or audio interface. The system's portability ensures that you can take your authentic acoustic sound with you, wherever you go.

The iRig Acoustic Stage boasts advanced features such as a "Cancel Feedback" button to eliminate unwanted frequency feedback, and a blend control to mix in your guitar's existing pickup system for even greater tonal flexibility. With six selectable tone presets, three for steel-string and three for nylon-string instruments, you can easily find the perfect sound for any performance situation.

The DSP-based preamp system of the iRig Acoustic Stage uses high-resolution, 32-bit A/D and D/A audio conversion to faithfully reproduce your guitar's natural acoustic qualities. The result is a rich, full-bodied sound that truly reflects the character of your instrument.

For those seeking even more personalized tone, the iRig Acoustic Stage offers a Custom Calibration feature. This allows you to optimize the DSP's response to your specific instrument and playing style, ensuring an even more authentic and perfect sound.

The iRig Acoustic Stage is also equipped with an integrated class-compliant USB audio output, making it effortless to connect directly to your computer or mobile device for plug-and-play recording in any compatible DAW or recording app.

In summary, the iRig Acoustic Stage Advanced Digital Microphone System is a high-quality, durable, and easy-to-use solution for acoustic guitarists seeking the perfect blend of studio-quality sound and onstage freedom. With its innovative design and portable convenience, it stands out as the ideal choice for musicians who refuse to compromise on their acoustic tone.

IK Multimedia iRig Acoustic Stage Features

  • High quality true-acoustic tone
  • Costs similar to entry level magnetic sound hole pickups
  • Feedback reduction control
  • AUX input to blend existing onboard piezo or other pickups
  • Installs in seconds without any modification to the instrument
  • USB digital recording output
  • Advanced MEMS microphone clips on to sound hole
  • Preamp/DSP unit
  • Dramatically improves your live acoustic sound
  • 1/4" AUX input with volume for piezo, magnetic pickups or other onboard electronics
  • 1/4" Output with level control for amplifier or PA system
  • USB audio out for recording on a computer or mobile device
  • Cancel Feedback with multiple frequency feedback cancelling
  • 6 tone presets
  • Personal instrument calibration
  • Works on any acoustic, acoustic electric or ukulele with round sound hole
  • Phase switch for optimizing dual source sound

Key Features

  • Advanced Digital Microphone System specifically designed for acoustic guitars
  • High-quality MEMS microphone and preamp for capturing studio-quality sound
  • Easy plug-and-play installation with a 1/8" mini-TRS connector for wide device compatibility
  • Built-in "Cancel Feedback" feature for eliminating unwanted frequency feedback
  • Six selectable tone presets for steel-string and nylon-string instruments
  • Integrated class-compliant USB audio output for direct recording on computers or mobile devices

What's in the box:

  • iRig Acoustic Stage DSP/Interface
  • iDedicated iRig Acoustic Microphone
  • iBelt Clip
  • iCarrying Case
  • 2x 1.5V AA Battery
  • IK Multimedia 1 Year Limited Warranty
