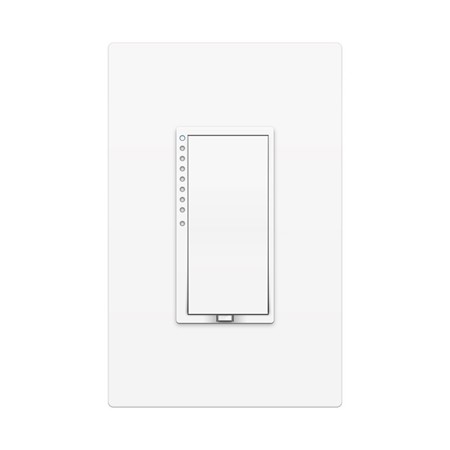

Insteon SwitchLinc Remote Control High-Wattage Dimmer Switch, 1000W Maximum Load, White

SKU: IN2477DH

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Insteon Dimmer Switch Specifications

  • On-Levels

    32 locally, increments of 1% with software

  • Ramp Rates

    Full-ON to full-OFF: 0.125 to 9 seconds if programmed locally, 0.125 seconds to 8 minutes if programmed remotely

  • LED Indicator

    9 White LEDs

  • Operation Modes

    Insteon

  • Multi-Way Circuit Support

    One SwitchLinc Dimmer controls load, Cross-Link any number of SwitchLinc Dimmers or other Insteon Controllers

  • Setup Memory

    Non-volatile EEPROM

  • Insteon Addresses

    1 hard-coded out of 16,777,216 possible

  • Insteon Links

    417

  • Insteon Powerline Frequency

    131.65 KHz

  • Insteon Minimum Transmit Level

    3.2 Vpp into 5 Ohms

  • Insteon Minimum Receive Leve

    10 mV

  • Insteon Messages Repeated

    Yes

  • Radio Frequency

    915 MHz

  • Paddle Type

    True rocker action

  • Wire Nuts

    4

  • Mounting

    Mounts in single or multiple-ganged junction box. Control 200 W less load for each immediately adjacent SwitchLinc Dimmer installed. For example, 600 W load control becomes 400 W with another dimmer to the immediate right or left. Use a triple-gang box with a mechanical switch in the center to avoid de-rating

  • Supply Voltage

    100-277 Volts AC +/- 10%, 50/60 Hertz, single phase

  • Neutral Wire

    Required

  • Power Wire Leads

    6", 18 AWG, stranded,600V, 105 deg. C insulation, ends stripped and tinned, LINE (black), LOAD (red), NEUTRAL (white)

  • Maximum Amps

    8 amps

  • Ground Lead

    6", 18 AWG, stranded, bare copper

  • Load Types

    Wired-in incandescent lighting devices

  • Maximum Load

    1000W

  • Power Consumption

    0.56W

  • Heat Dissipation

    Four heat dissipation fins integrate into the body of the switch. Individual fins can be permanently detached from switch if fins interfere with installation. Removal of each individual fin will reduce rated switch capacity by 100W

  • Certification

    Safety tested for use in USA and Canada (ETL #3017581)

  • Operating Conditions

    Indoors, 32 to 104 deg. F (0 to 40 deg. C), up to 85% relative humidity

  • Dimensions (HxWxD)

    4.1 x 1.8 x 1.2" (10.41 x 4.57 x 3.05cm)

  • Weight

    3.6 oz (102.06g)

  • UPC Code

    813922011005

About Insteon Dimmer Switch

Have more wattage than usual?
This High-Wattage Dimmer is for you and installs like the traditional Dimmer Wall Switch with the exception of requiring a connection to a neutral. Once installed, setup is quick and easy using simple programming.

Remote Control
This is no ordinary wall switch. Insteon Wall Switches can be remotely controlled from almost any device in your home: Sensors monitoring doors, windows, leaks and more, remotes, keypads and other wall switches throughout your home, even your smartphone when used with the Insteon Hub.

On/Off or Dimming
Whether you need the raw switching power of our 1,800W-relay-based On/Off Switch or the gentle dimming grace of our traditional Dimmer Switch, there's an Insteon Wall Switch to fit your switching needs.

Scenes+
One of the most powerful features of Insteon switches, Scenes let you control multiple devices simultaneously with a single tap. Brighten all of the lights in an entire room with a tap-and-hold or create infinite virtual multi-way switches.

Customizable
No wall switch is more customizable. Change the paddle color to suit your d cor needs. Swap out the LED light pipe for personalized colors. You can even custom-etch text onto the switch paddles for ease-of-use in multi-gang switch boxes.

Control on Apple Watch
With the Insteon App on Apple Watch, control of your Insteon Wall Switch is never out of reach. Pick from one of four presets for Dimmer Switches.

Remote control with Insteon sensors
Your Insteon Wall Switch can do so much more when given access to the family of Insteon sensors. With a few taps of the set button or a moment's time with your smartphone, you can configure sensors throughout your home to automatically turn on (or off) the lights based on a variety of different actions.

Doors
There are some rooms in your home that, no matter what time of day, you always end up turning on the lights: Pantries, closets, hallways, etc. With an Insteon Wall Switch and an Open/Close Sensor (or Hidden Door Sensor), you will never need to turn the light on again. And better yet, you'll never need to remember to turn it off.

Motion & Occupancy
Do you play whack-a-mole all day, turning off the lights in rooms that your significant other or children have habitually left on? Turn every Insteon Wall Switch into an occupancy-sensing switch with an Insteon Motion Sensor. And with Insteon , your Motion Sensor can control multiple Wall Switches simultaneously for large rooms or long hallways.

Smoke
No one wants to think about the potential for a disaster, but if one were to happen, make your escape as safe as possible by automatically turning on lights to an escape path when Smoke Bridge detects smoke, fire or carbon monoxide from a linked First Alert OneLink detector.

Garage Door
It's no only cool, it's handy too. Whenever you open your garage door, turn on the overhead lights for easier entry and exit from your vehicle. And while you're at it, turn the outside sconces and walkway lights on, too for that extra bit of illuminated peace-of-mind when you come home late at night.

Cases for your Switches
You've got this fancy new remote-controllable Wall Switch, so why blemish it with that old chipped and discolored wall plate? Insteon Wall Plates add that extra bit of frame and polish. Oh - and they are screwless, so all you see is your fantastic new switch.

Insteon Dimmer Switch Features

  • Same great features as the SwitchLinc Dimmer, Dual-Band (#2477D), but with 1,000 watts for larger loads
  • Control this dimmer remotely from anywhere
  • Programmable on-level and fade on/off speed
  • Automatically detects 50 or 60 Hertz electricity and supports 100-277VAC
  • Insteon Hub Pro enables this device to work with HomeKit technology
  • Works with Amazon Alexa for voice control (Insteon Hub required; Alexa device and Insteon Hub each sold separately)
  • This product is an Insteon Dual-Band device
  • Wall plate is not included - this product will work with any standard paddle-style wall plate, however, Smarthome recommends using Insteon Screwless Wall Plate for a more professional finish

What's in the box:

  • Insteon SwitchLinc Remote Control High-Wattage Dimmer Switch
  • Quick Start Guide
  • 2x Mounting Screws
  • 4x Wire Nuts
  • Insteon 2 Year Warranty
